17
. BULBS REMOVAL/INSTRUMENT/HORN
17-4

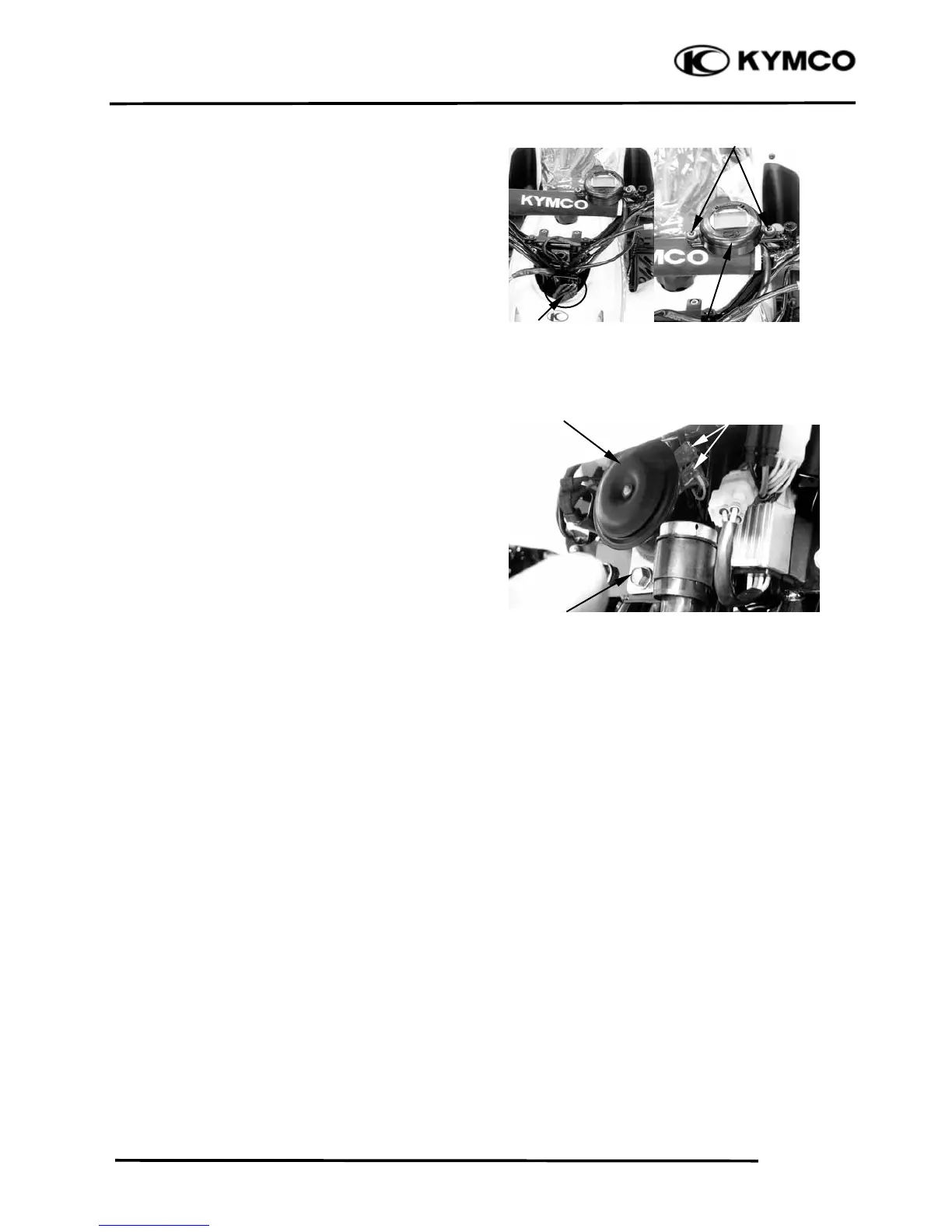

INSTRUMENT (ON ROAD)
REMOVAL
Remove the handlebar cover. (See page 2-3)
Disconnect the meter connectors.
Remove the two screws and then remove
the instrument.
Installation is in the reverse order of
removal.
HORN (ON ROAD)
REMOVAL
Disconnect the horn wire connectors.
Remove the bolt and remove horn.
Installation is in the reverse order of
removal.
Instrument
Connectors
Screws
Horn
Bolt
Connectors
257
