KYMCO MXU 50 REVERSE - Fuel Tank

5. FUEL SYSTEM
5-14
ATV 50
FUEL TANK

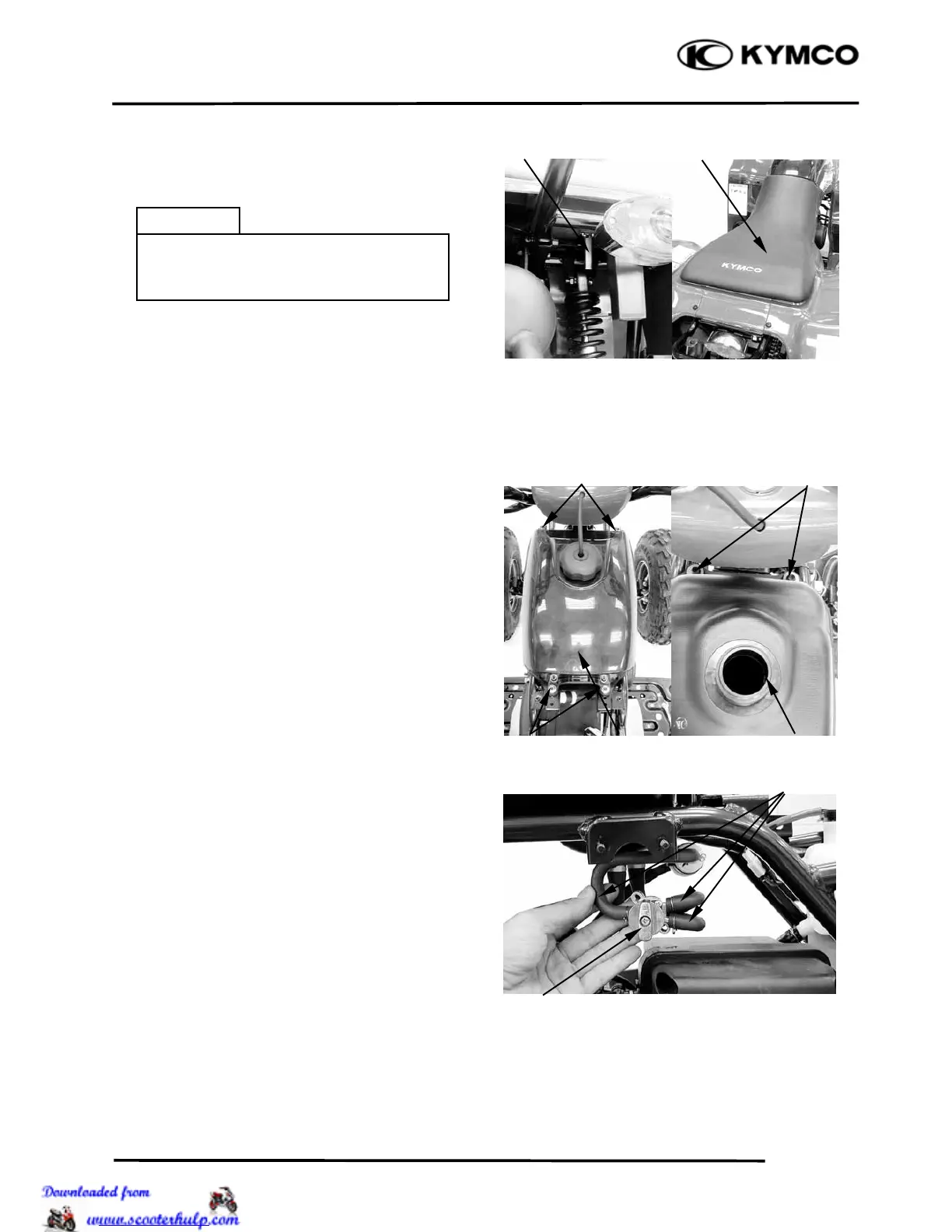

FUEL TANK REMOVAL
Remove the seat.
Remove the center cover.
Remove the right and left front fender.
Remove two bolts and two nuts on the end of
the fuel tank.
Switch the fuel valve “OFF”.
Disconnect the fuel tubes.
Remove the fuel tank and fuel valve.
Bolts
Fuel Tank
Screws
Sea
t
Leve
r
Center Cove
r
• Keep sparks and flames away from the
work area.
• Wipe off any spilled gasoline.
Warnin
g
Fuel Tubes
Fuel Valve
nuts
