5. FUEL SYSTEM
5-15
ATV 50

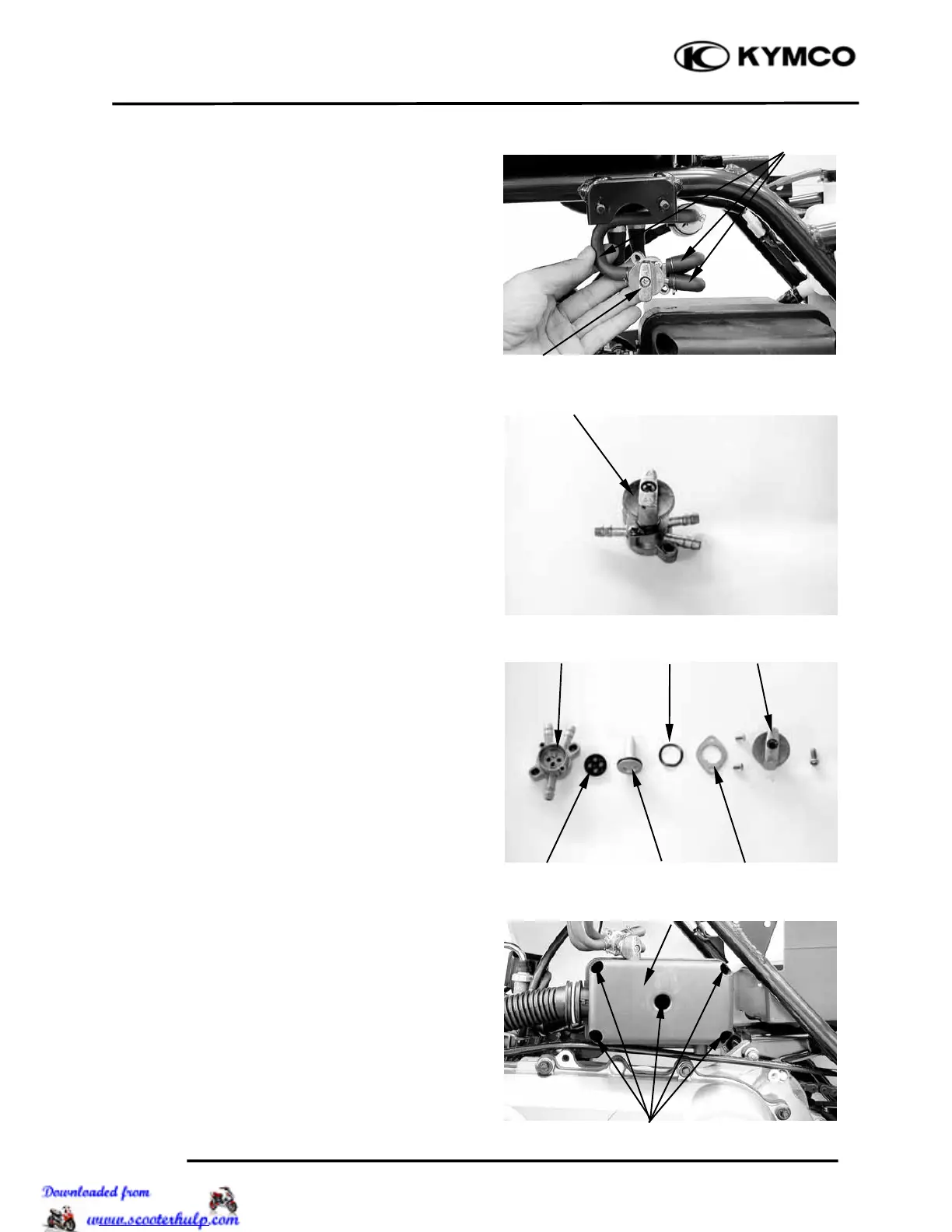

FUEL VALVE REMOVAL
Disconnect the fuel tubes and remove the
bolts.
Remove the fuel valve and fuel cup.
Remove the screw on the fuel valve control
switch.
Remove the two screws on the fuel valve
body.
INSPECTION
Inspect the fuel valve strainer for dirt and
clog. Clean if necessary.
Replace the O-rings with new ones if they
are damaged or deteriorated.
AIR CLEANER
REMOVAL
Remove the five screws on the air cleaner
case cover and the cover.
Remove the air cleaner screen and element.
Refer to chapter 3 to clean air filter element.
Fuel Valve Body
Fuel Valve
Screws
Air Cleaner Case Cove
r
Control Shaf
t
Control Switch
Rubber Gaske
t
Retaining Ring
Washe
r
Fuel Tubes
Fuel Valve
