KYMCO MXU 50 REVERSE - Frame Covers;Exhaust Muffler

2. FRAME COVERS/EXHAUST MUFFLER
2-4
ATV 50

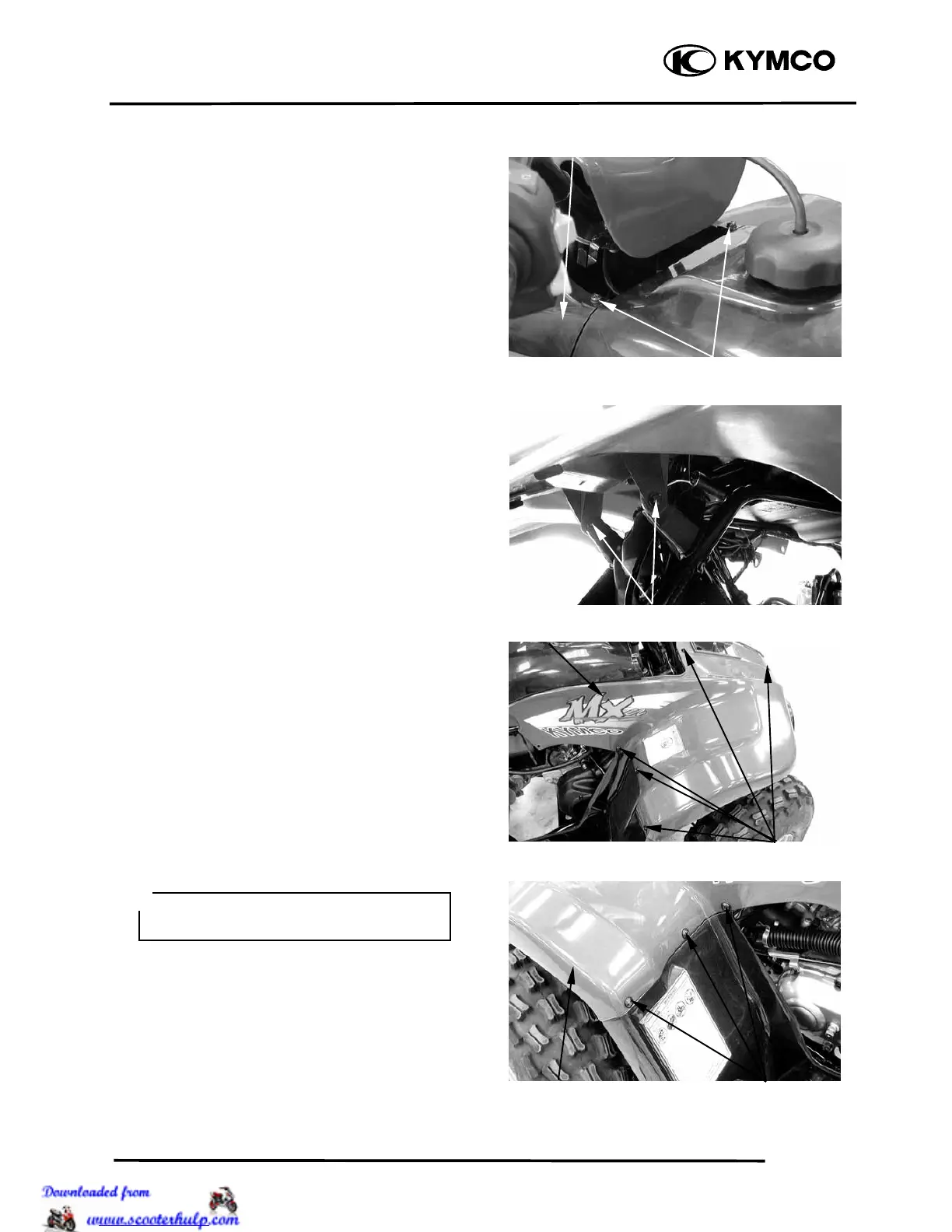

FRONT COVERS REMOVAL
Remove the two screws on the front cover.
Remove the left and right front fender under
bolt.
Remove the front cover.
FRONT FENDER REMOVAL
Remove screws attaching the left and right
front fender.
Remove the left and right front fender.
Bol
t
s
Screws
Front Cove
r
Screws
Right Front Cove
r
Screws
Left Front Cove
r
During removal, be careful not to
damage the joint claws.
＊
