5. FUEL SYSTEM
5-11
ATV 50

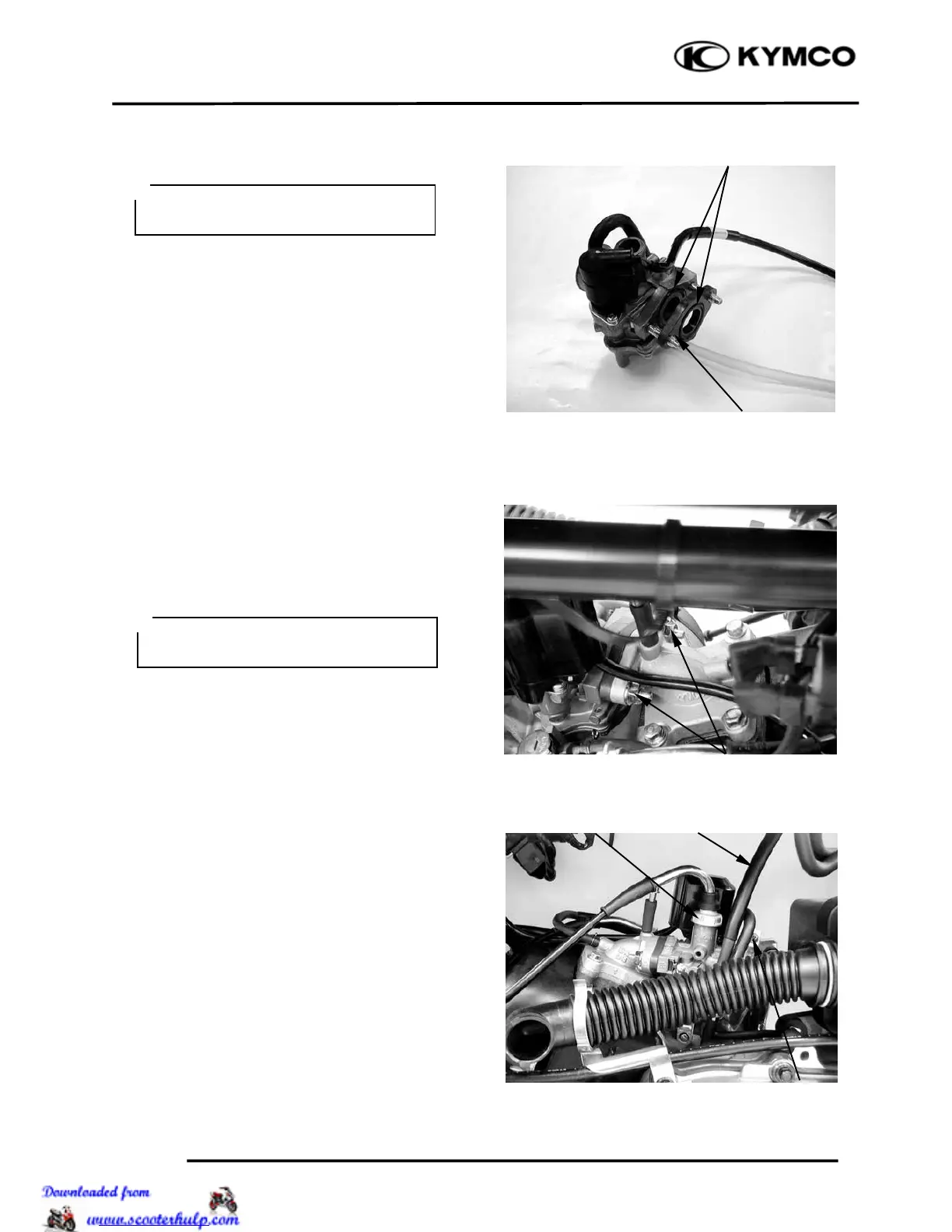

CARBURETOR INSTALLATION
Check the carburetor insulator and O-ring
for wear or damage.
Install the carburetor and insulator onto the
intake manifold and tighten the two lock
nuts.
Connect the fuel tube and auto bystarter wire
connector.
Install the carburetor cap. (
Ö
5-3)
Install the fuel tube
Install the air cleaner onto the carburetor and
tighten the band screw.
O-rings
Insulato
r
N
uts
When installation, do not allow foreign
particles to enter the carburetor.
＊
Route the auto
b
ystarter wire correctly
and properly.
＊
Fuel TubeCarburetor Cap
Band
