7. CYLINDER HEAD/CYLINDER/PISTON
7-5
ATV 50

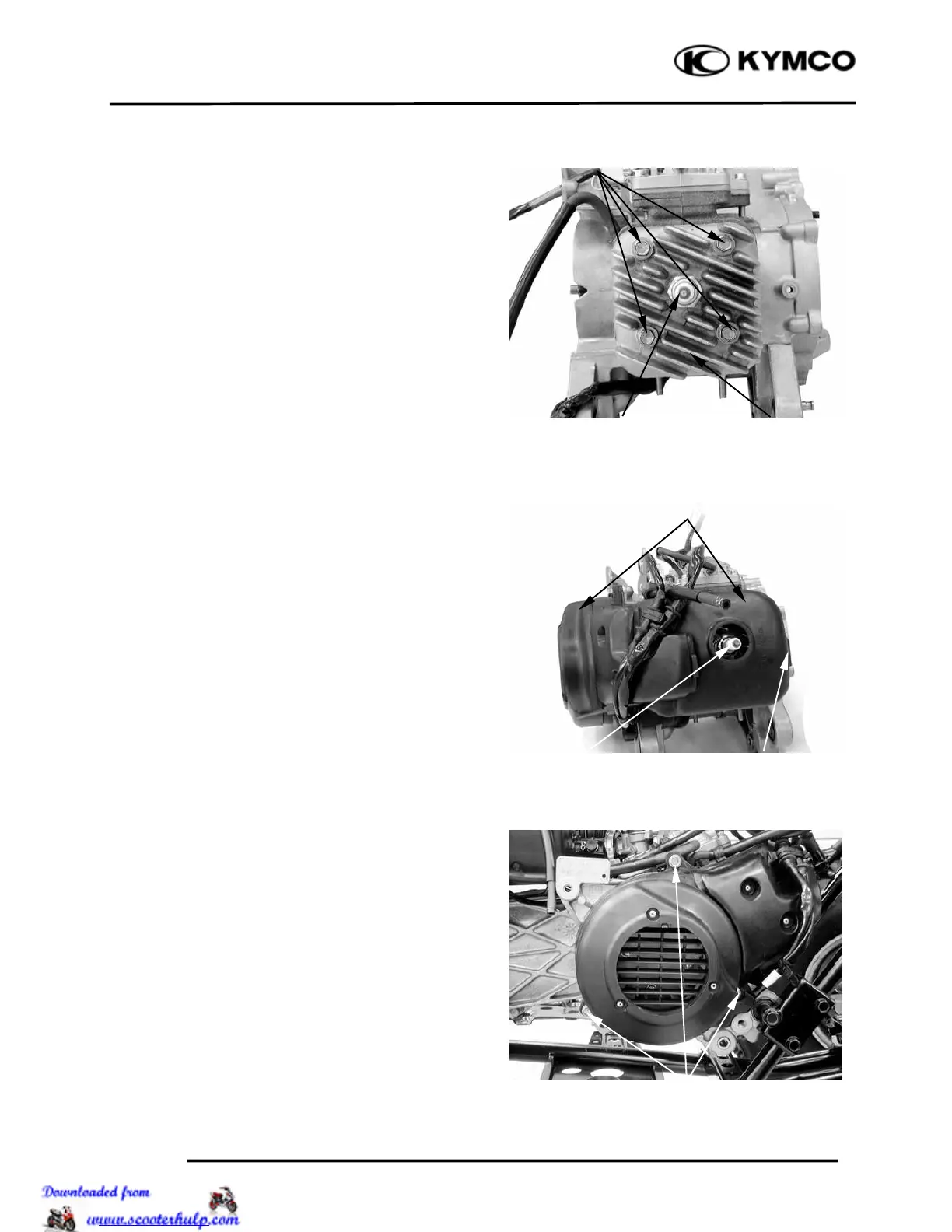

Cylinder Head Bolts Installation
Install and tighten the cylinder head bolts
diagonally in 2 or 3 times.
Torque: 1.6 kgf-m (16 N-m, 11.5 lbf-ft)
Install the spark plug.
Torque: 1.4 kgf-m (14 N-m, 10.1 lbf-ft)
Engine Hood Installation
Install the engine hood. (
Ö
7-3)
Install the spark plug cap. (
Ö
7-3)
Install the exhaust muffler. (
Ö12-15 or 12-
16
)
Perform the following inspections after
installation:
• Compression test
• Abnormal engine noise
• Cylinder air leaks
