3. INSPECTION/ADJUSTMENT
3-9
ATV 50
GEAR OIL CHANGE
Remove the oil filler bolt.
Removes the oil drains bolt and drain the oil
thoroughly.
Install the oil drain bolt.
Torque: 1.3 kgf-m (13 N-m, 9.4 lbf-ft)
Fill with the recommended oil.
Specified Gear Oil: SAE10W90#
Oil Capacity:
MXU 50/MX’ER 50
At disassembly:
0.12 liter (0.11 lmp qt,0.13 Us qt)
At change: 0.09 liter (0.08 lmp qt,0.1 Us qt)
MXU 50 REVERSE
At disassembly:
0.3 liter (0.26 lmp qt,0.32 Us qt)
At change:
0.25 liter (0.22 lmp qt,0.26 Us qt)
Reinstall the oil filler bolt and check for oil
leaks.
Torque: 1.3 kgf-m (13N-m, 9.4 lbf-ft)

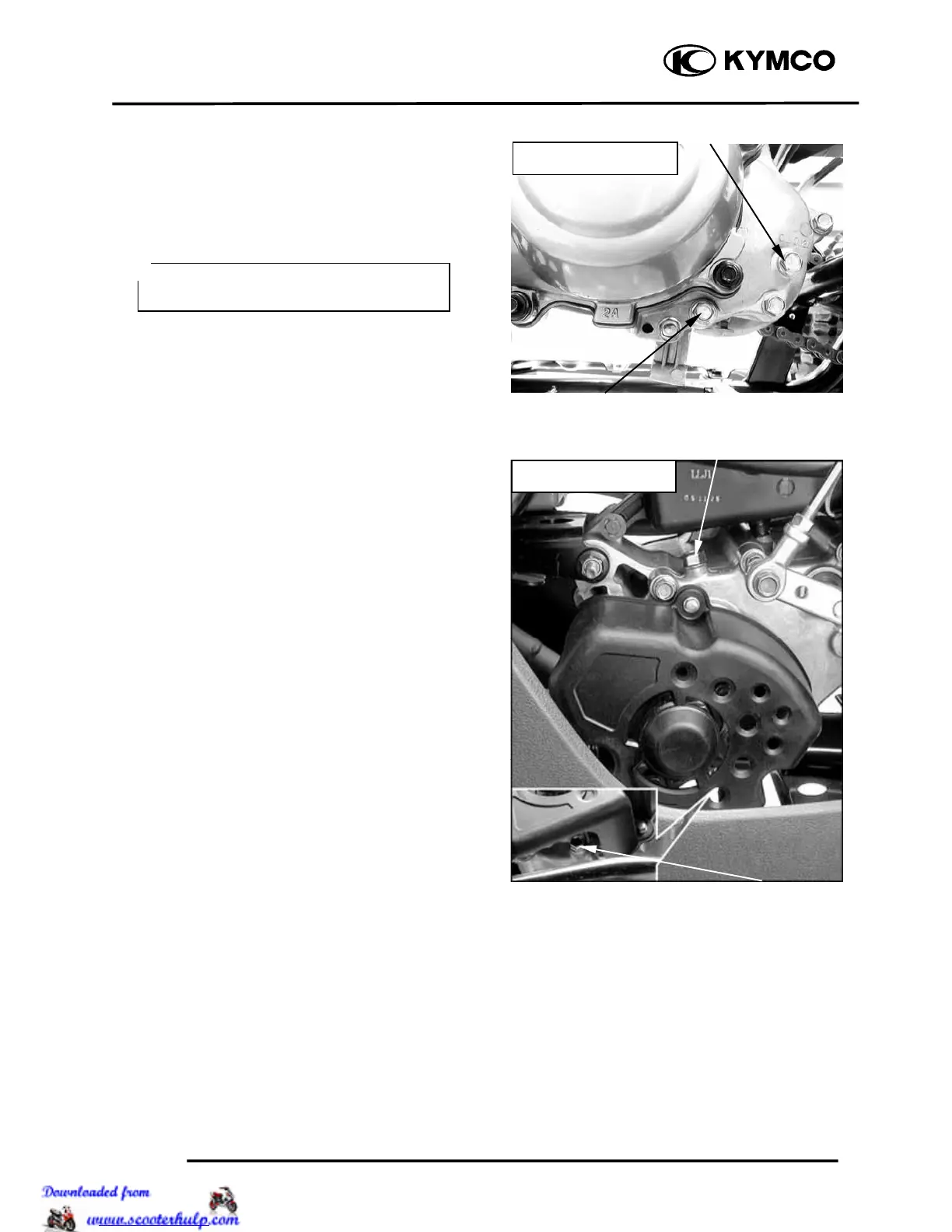

Oil Drain Bolt/ Sealing Washe
r
Oil Fille
r
Bol
t
MXU 50/MX’ER 50
Oil Drain Bolt/ Sealing Washe
r
MXU 50 REVERSE
Oil Fille
r
Bol
t
Make sure that the sealing washer is in
good condition.
＊
