3. INSPECTION/ADJUSTMENT
3-17
ATV 50

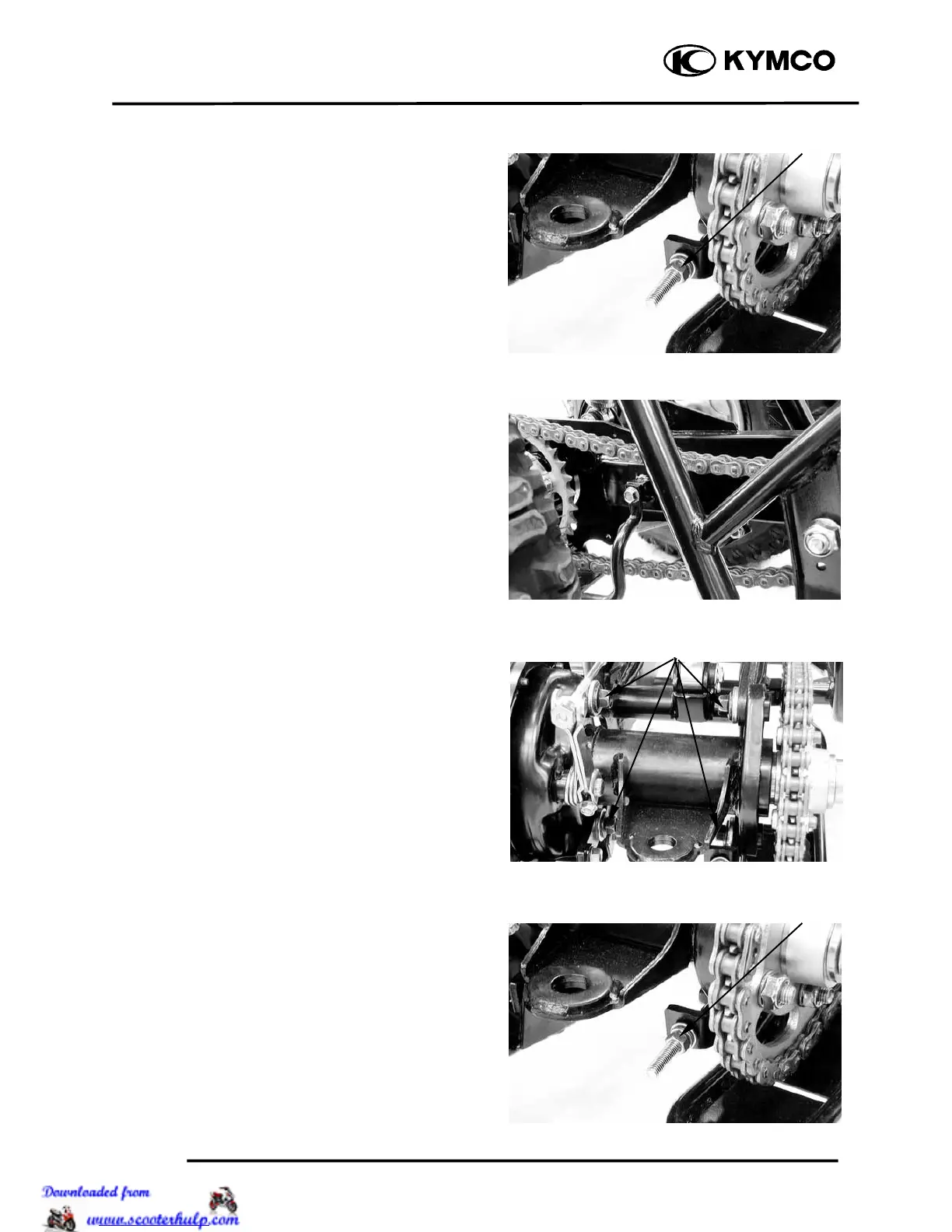

Turn the adjuster in or out until the
specified slack is obtained.
Turn in: Slack is increased.
Turn out: Slack is decreased.
Tighten four bolts attaching rear axle hub to
the specification. While pushing up or down
on the chain to zero slack.
Torque: 7 kgf-m (70 N-m, 50 lbf-ft)
Tighten the adjuster.
Torque: 2.2 kgf-m (22 N-m, 16 lbf-ft)
Adjuste
