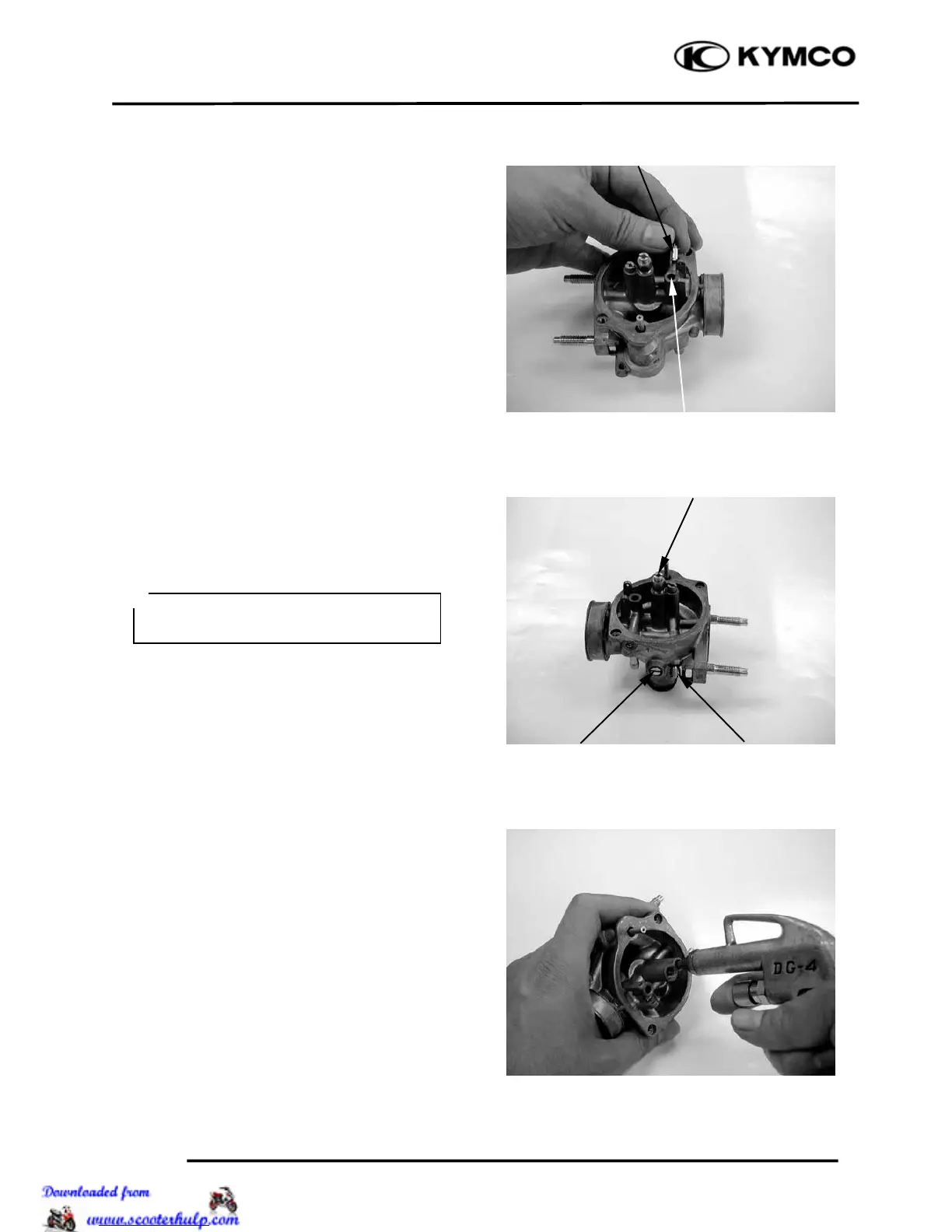

FLOAT/FLOAT VALVE INSPECTION
Inspect the float for damage or fuel inside
the float.
Check the float valve seat for wear or
damage.
JETS/SCREWS REMOVAL
Before removing the throttle stop screw or
air screw, record the number of rotations
until it seats lightly. Then, remove them.
Remove the main jet and needle jet holder.
CARBURETOR PASSAGES CLEANING
Blow compressed air through all passages of
the carburetor body with an air gun.
Float Valve
Float Sea
t
Main Je
t
Throttle Stop Screw
Air Screw
Do not force the air screw against its
seat to prevent damage.
＊
