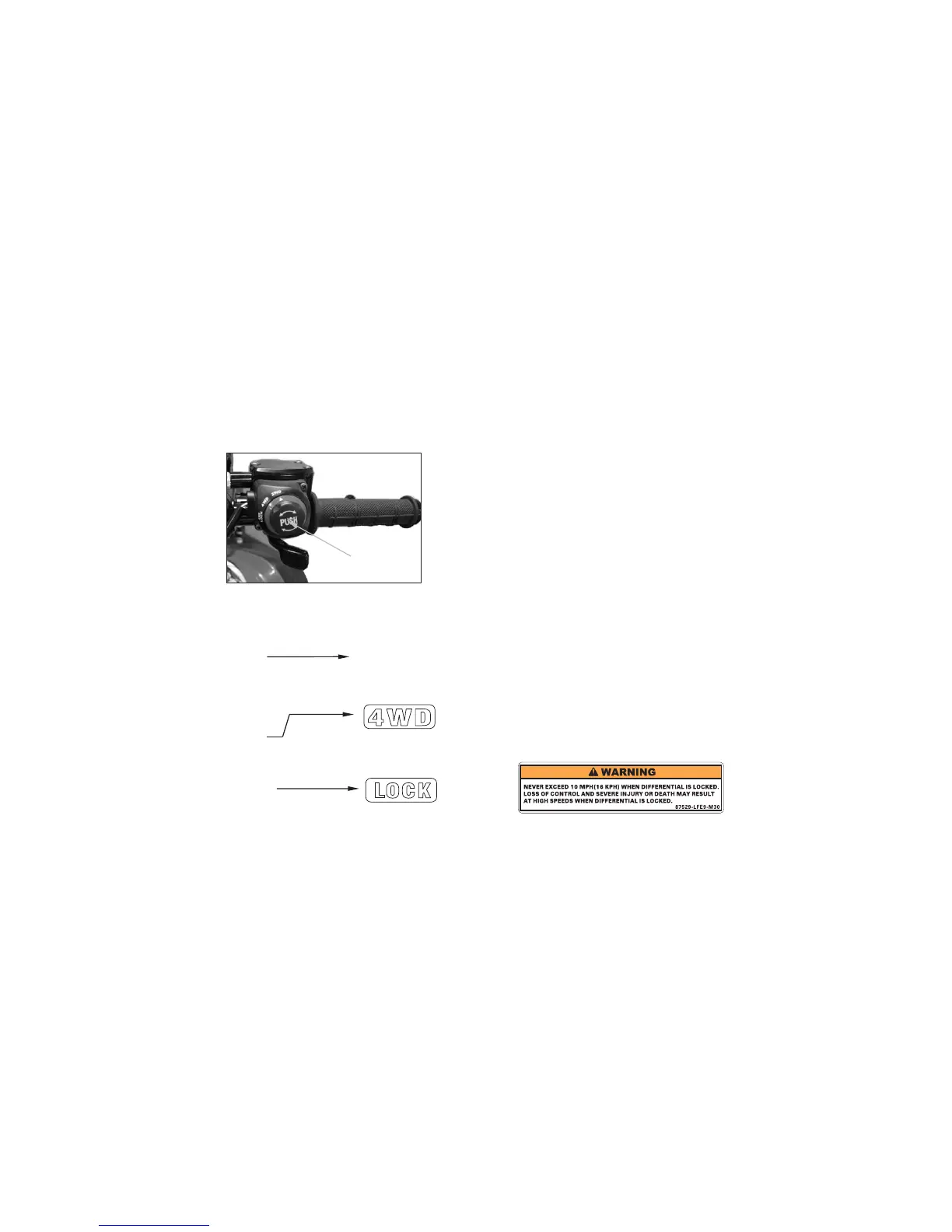

(1) 2WD/4WD select switch and differential
lock switch
RIGHT HANDLEBAR SWITCH
2WD/4WD select switch
This ATV is equipped with a 2WD/4WD select
switch, which permits a choice between the “2WD”
and “4WD” drive modes. Select a drive mode that is
suitable for your riding.
The 2WD/4WD select switch is located above the
throttle lever. To select the drive mode, push and
turning 2WD/4WD select switch to the desired
position.
To check your present drive mode, look at the Multi-
function display.
28
2WD mode2WD mode
4WD mode4WD mode
In 2WD mode, meter
has no indication
Differential lock switch
The Differential lock switch is located above the
throttle lever.
The front axle is equipped with a lockable
differential that allows the operator to choose
between an open differential or a closed
differential in low traction situations.
If the differential is in lock manner.
In 4WD mode, meter should appear 4WD indicator,
then activate the lock switch, should appear 4WD
and LOCK indicator together.
In 2WD mode, meter has no indication, then activate
the lock switch, should appear 4WD and LOCK
indicator together.
(1)
4WD LOCK4WD LOCK
