8-7
8
Front Body
Panel/Fender

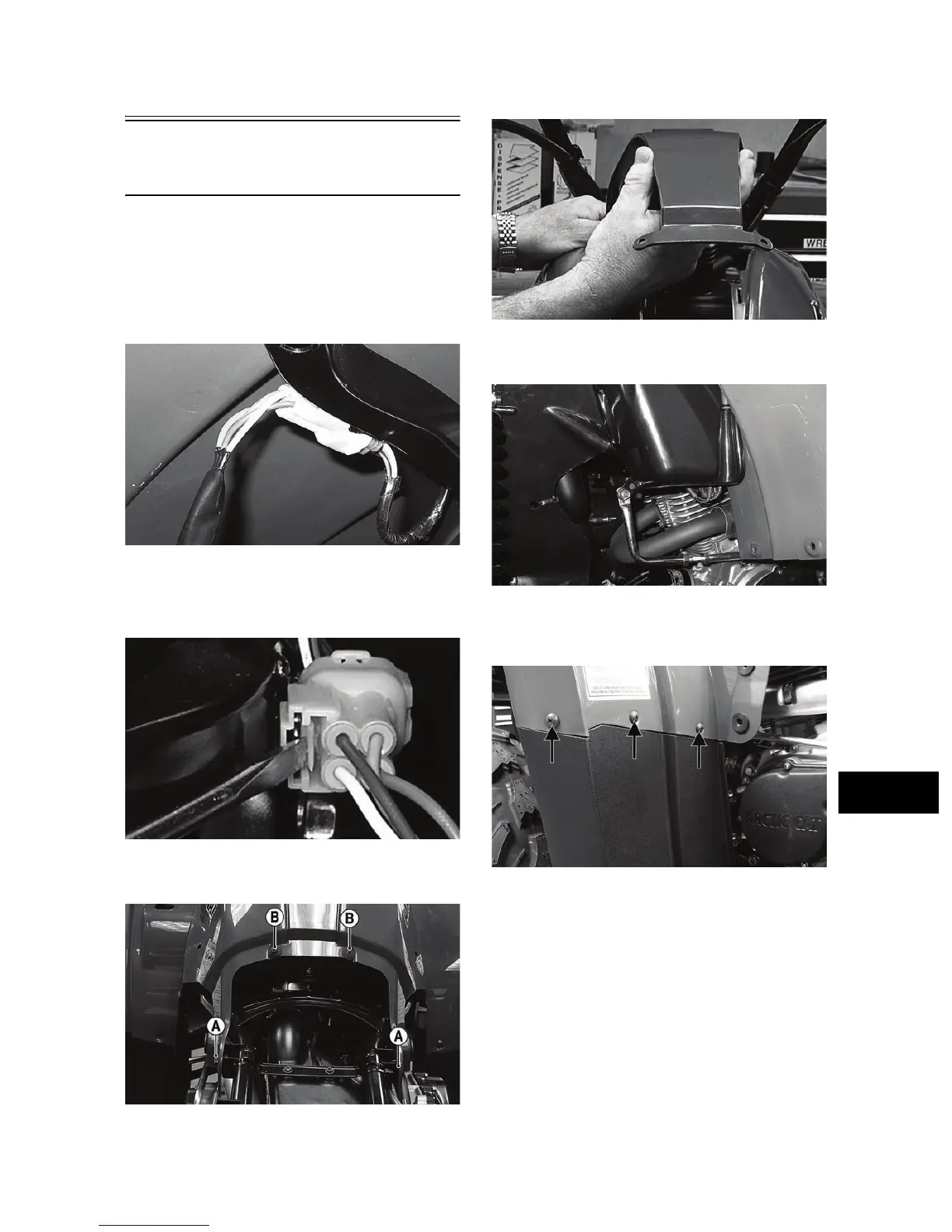

REMOVING
1. Remove the seat and both side panels.
2. Remove the front rack; then disconnect the head-
light/running light connectors located on the
frame.
KC224
NOTE: Use a small screwdriver to disengage the
tab connector allowing the connector assembly to
be removed from the frame.
KC223
3. Remove the cap screws (A); then remove the rein-
stallable rivets (B) and remove the tank cover.
KC219A
KC220
4. Remove the shift knob; then remove the shift
mechanism splash shield.
KC211
5. Remove the screws securing the front body to the
front body supports; then remove the left-side and
right-side footwell fasteners.
KC204A
6. Remove the electric panel; then disconnect the
LCD gauge connector, ignition switch, and acces-
sory outlet.
To Next Page
