3-32
MD1017

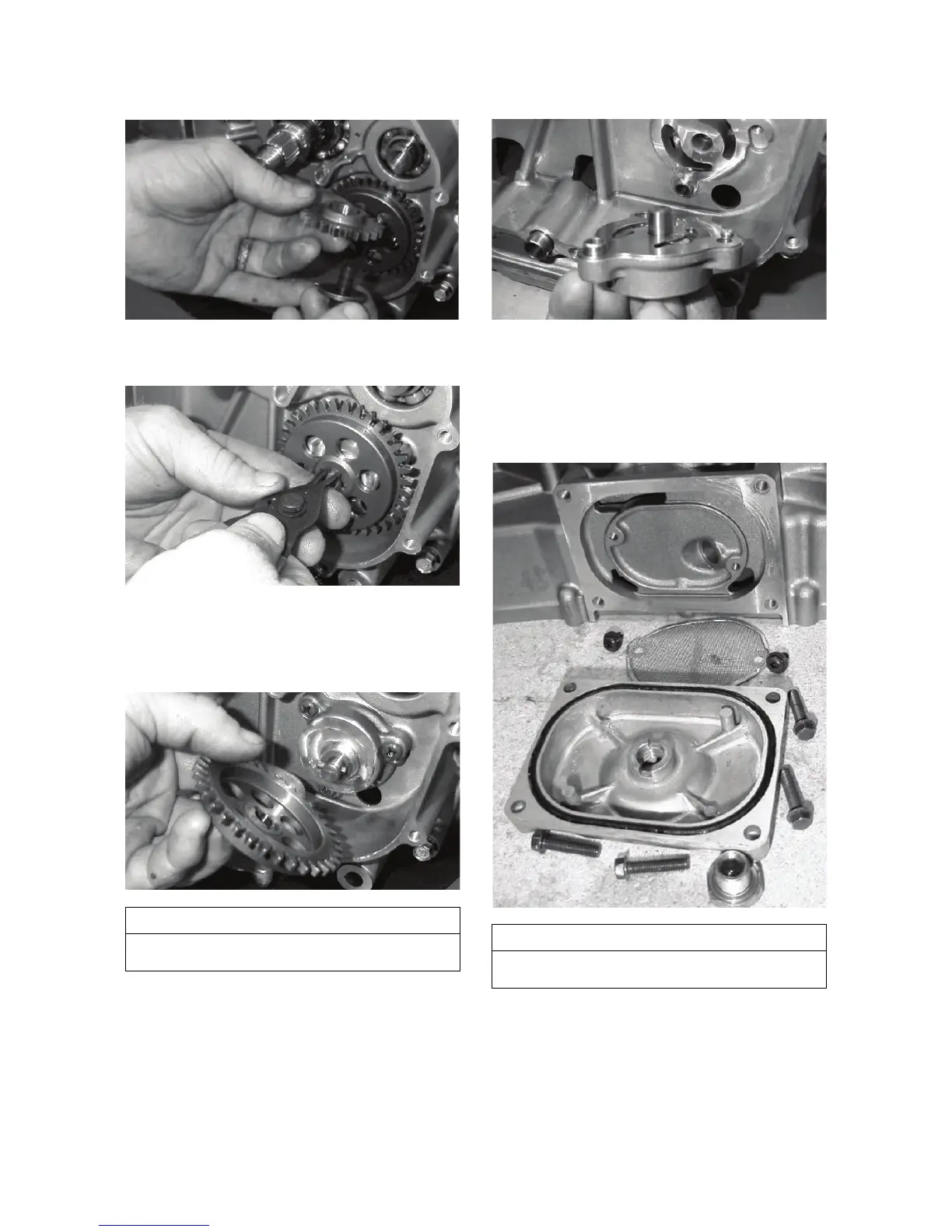

18. Remove the snap ring holding the oil pump driven
gear.
MD1019
NOTE: Always use a new snap ring when install-
ing the oil pump driven gear.
19. Remove oil pump driven gear. Account for the pin.
MD1020
H. Oil Pump/Oil Strainer
NOTE: Steps 1-19 in the preceding sub-sections
must precede this procedure.
20. Remove three Phillips-head screws holding the oil
pump and remove the oil pump. Account for two
alignment pins.
MD1060
21. Remove the four cap screws securing the oil
strainer cover; then remove the Phillips-head
screws securing the oil strainer. Account for the
O-ring.
NOTE: Note the directional arrow for installing
purposes.
MD1207
AT THIS POINT
To service clutch components, see Servicing
Right-Side Components sub-section.
AT THIS POINT
To service center crankcase components only, pro-
ceed to Separating Crankcase Halves.
