3-35
3
KC325A
KC326B
B. Clutch Cover
C. Fixed Drive Face
D. Movable Drive Face
NOTE: Steps 1-9 in the preceding sub-section
must precede this procedure.

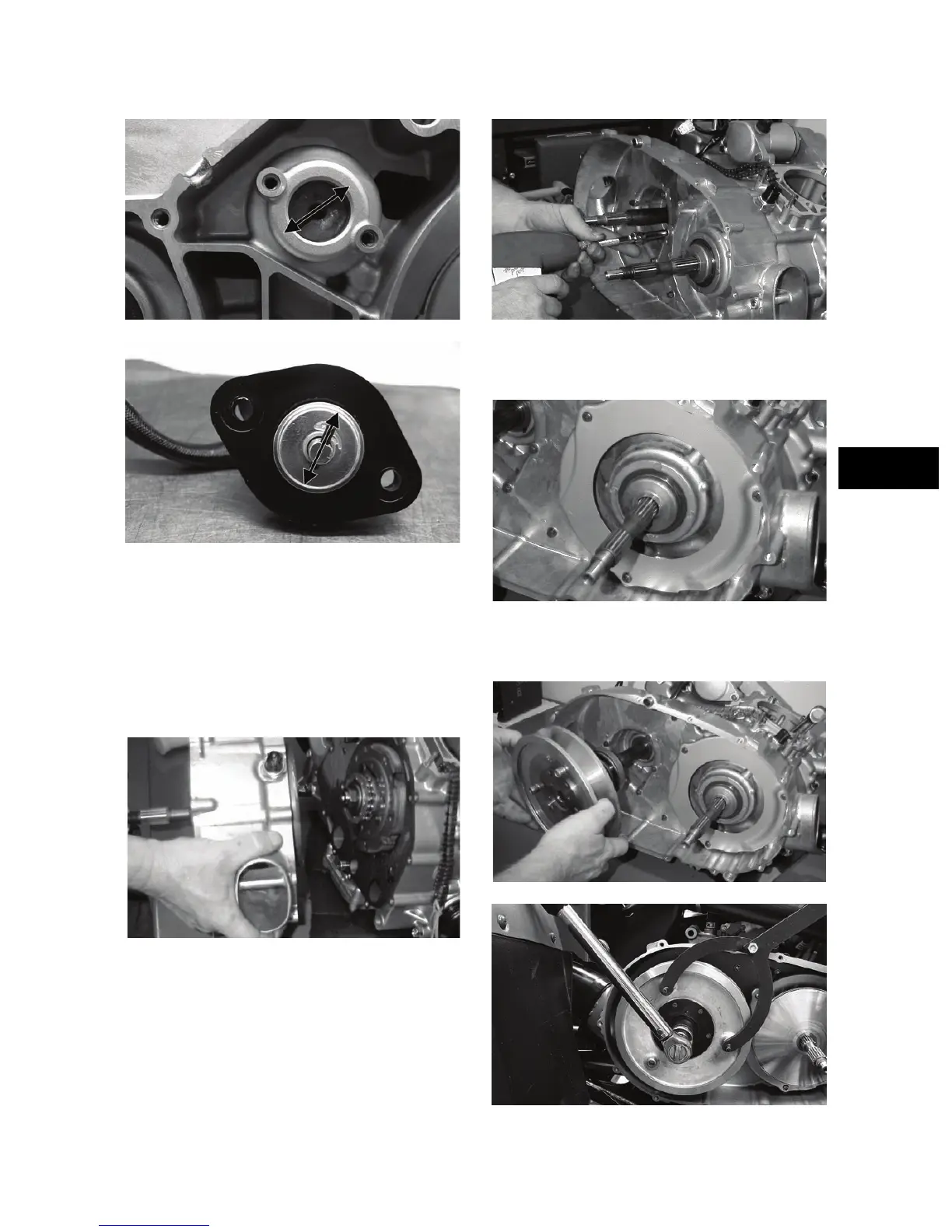

10. Install two alignment pins and place the clutch
cover gasket into position. Install the clutch cover.
MD1115
11. Tighten the clutch cover cap screws to 8 ft-lb.
MD1117
12. Install the air intake plate. Apply red Loctite #271
to the threads of the three Phillips-head cap
screws; then install and tighten securely.
MD1342
13. Place the driven pulley assembly into position and
secure with the nut (threads coated with red Loc-
tite #271). Tighten to 147 ft-lb.
MD1068
KC134
