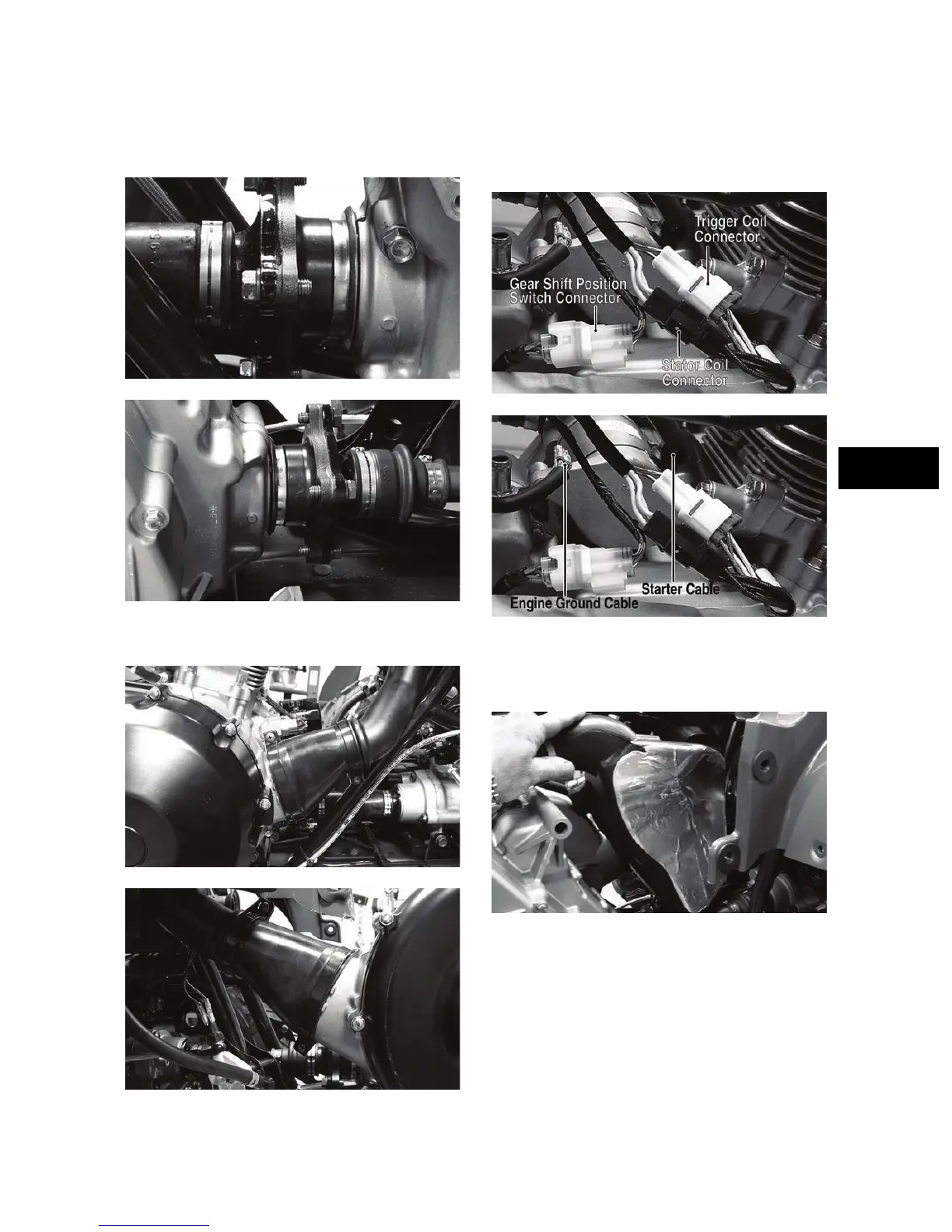

3. Align the front and rear output flanges with the
drive couplers; then secure with the screws and
tighten to 20 ft-lb.
KC242
KC243
4. Install the front and rear V-belt cooling boots and
secure with the existing hardware.
KC235
KC236
5. Connect the stator coil, trigger coil, and gear shift
position switch connectors; then attach the engine
ground cable and starter cable and secure with cap
screws and nuts. Tighten to 8 ft-lb.
KC228A
KC228B
6. Set the inlet air silencer into the frame; then install
the exhaust pipe using a new exhaust pipe seal and
grafoil seal. Tighten the cap screws evenly to 20
ft-lb and install the muffler retainer springs.
KC237
