3-47
3
KC249
KC250
KC251

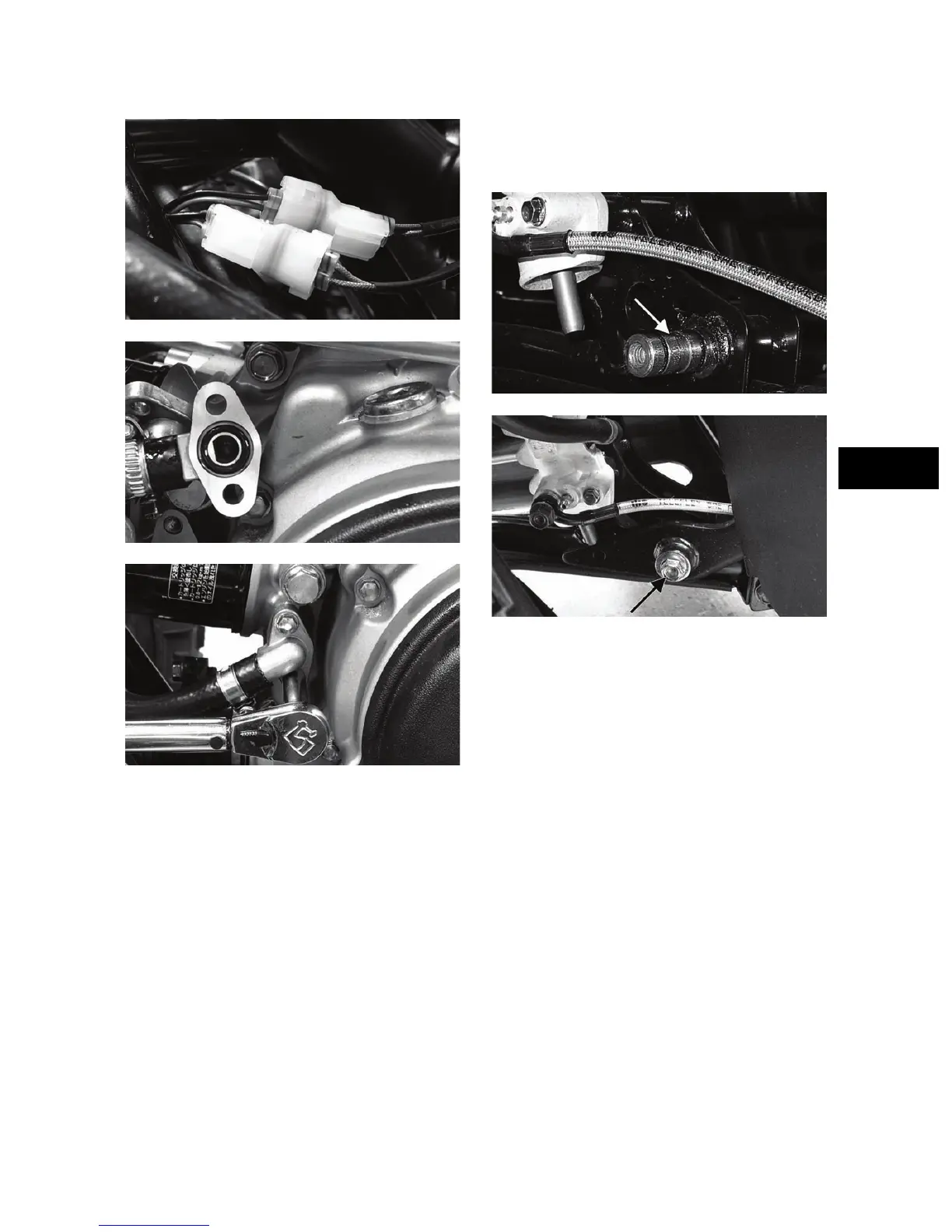

11. If the brake pedal was removed during disassem-
bling, apply grease to the brake pedal pivot stud;
then install the brake pedal and secure with a flat
washer and cap screw. Tighten to 20 ft-lb.
KC232A
KC149A
12. Install the heat shield; then install the gas tank (see
Section 4).
13. Install the front body panel, front rack, and foot-
wells (see Section 8).
14. Pour the appropriate quantity and grade oil into the
crankcase; then connect the negative battery cable
and move the ATV outside to a well ventilated
area.
15. Start the engine and allow the engine to warm up
while checking for oil leaks; then shut the engine
off and check the oil level. Add oil as required.
