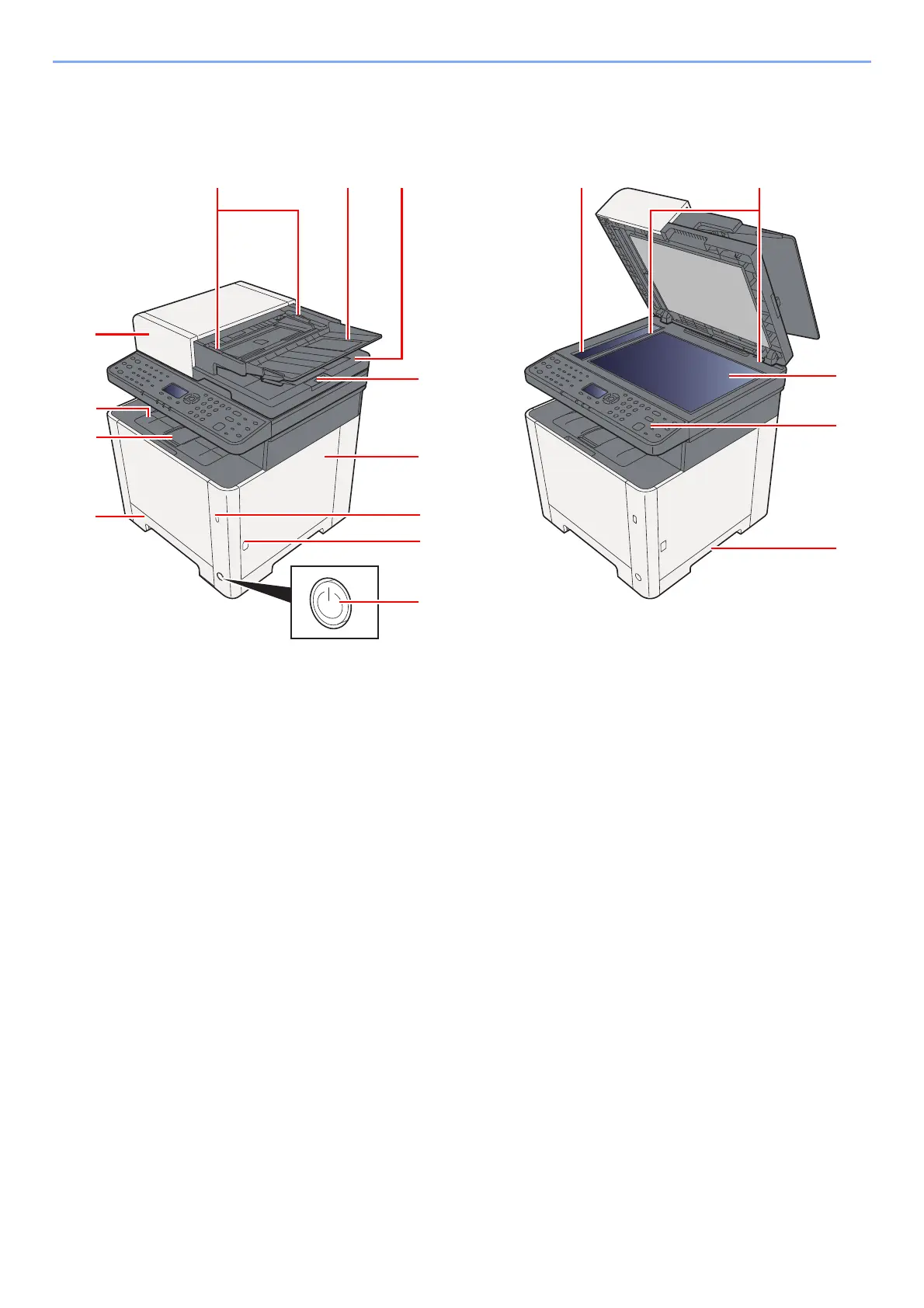

Part Names (Machine Exterior)
1 Document Processor
2 Inner Tray
3 Paper Stopper
4 Cassette 1
5 Power Switch
6 Button (Right Cover Open)
7 USB Memory Slot
8 Right Cover
9 Original Stopper
10 Original Eject Table
11 Original Table
12 Original Width Guides
13 Slit Glass
14 Handles
15 Operation Panel
16 Platen
17 Original Size Indicator Plates
