3-7

Preparation before Use > Loading Paper

Loading in the Cassette 2

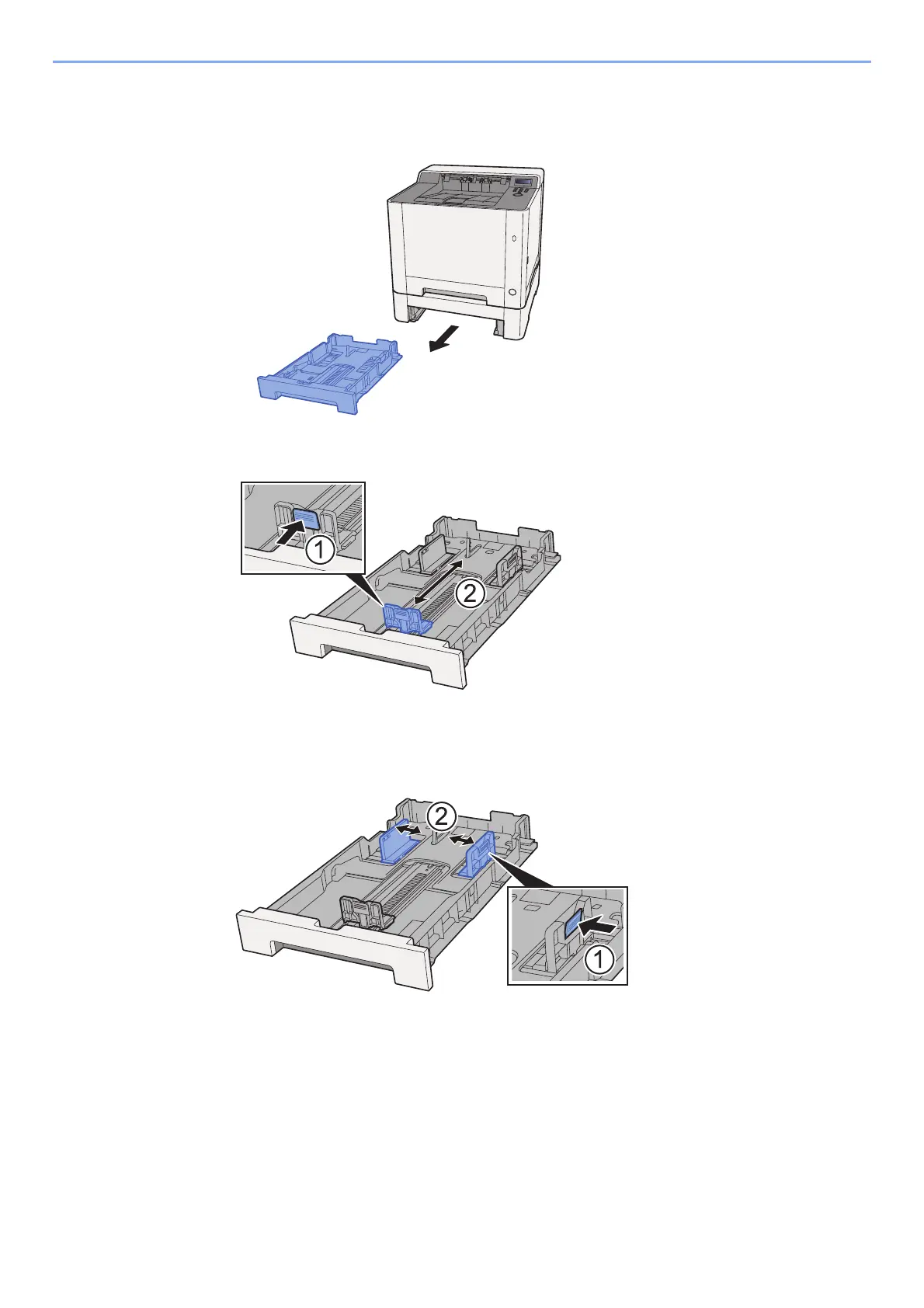

Pull the Cassette 2 completely out of the machine.

Adjust the paper length guide to the paper size required.

Adjust the position of the paper width guides located on the left

and right sides of the

Cassette 2
