2PR
1-5-40
25. Remove five screws and then remove the
high voltage PWB 1.
26. Check or replace the high voltage PWB 1
and refit all the removed parts.

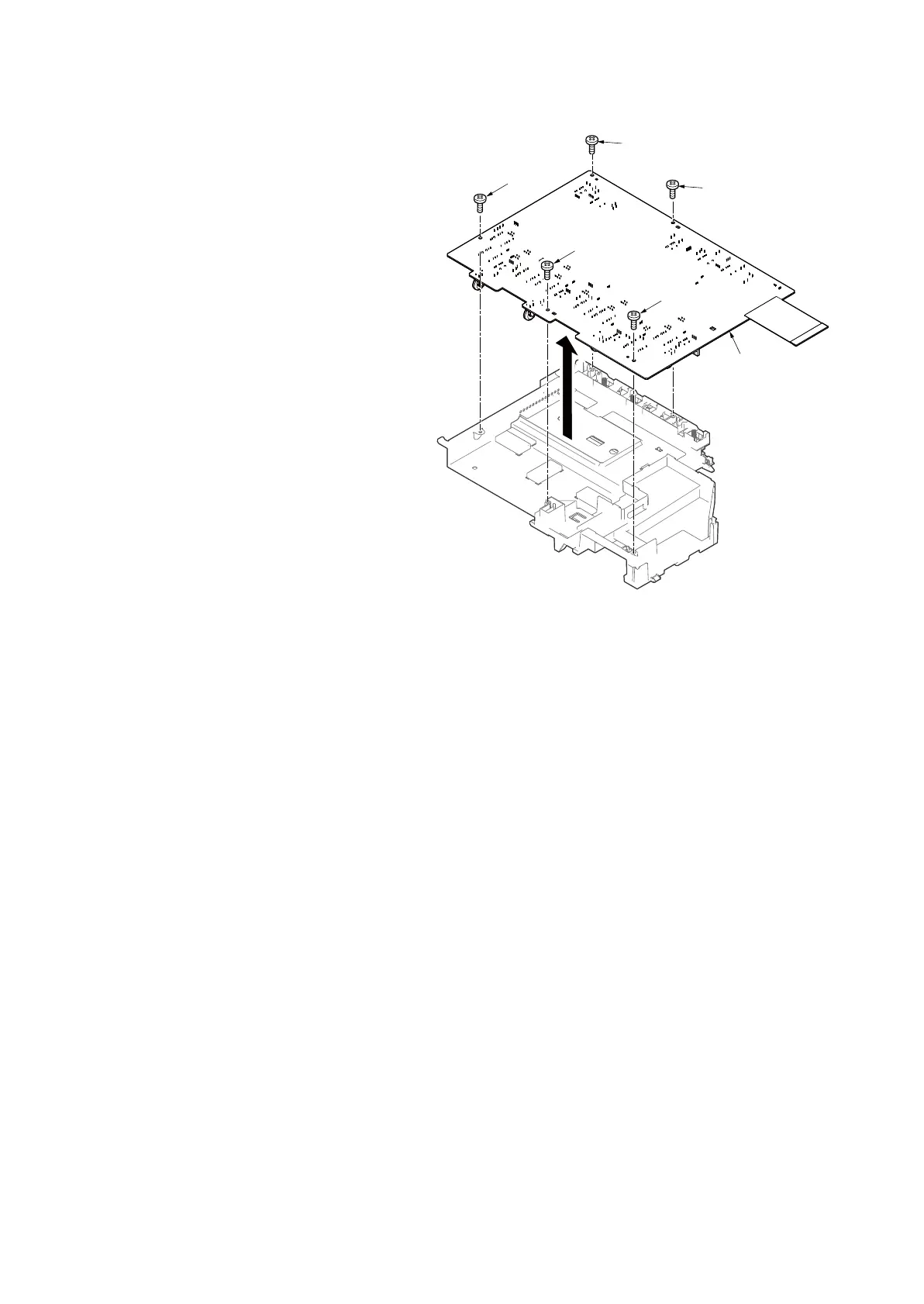

Figure 1-5-56
High voltage PWB 1
Screw
Screw
Screw
Screw
Screw
