Kyocera ECOSYS P7035cdn Service Manual

2PR
2-2-1
2-2 Electrical Parts Layout
2-2-1 Electrical parts layout
(1) PWBs

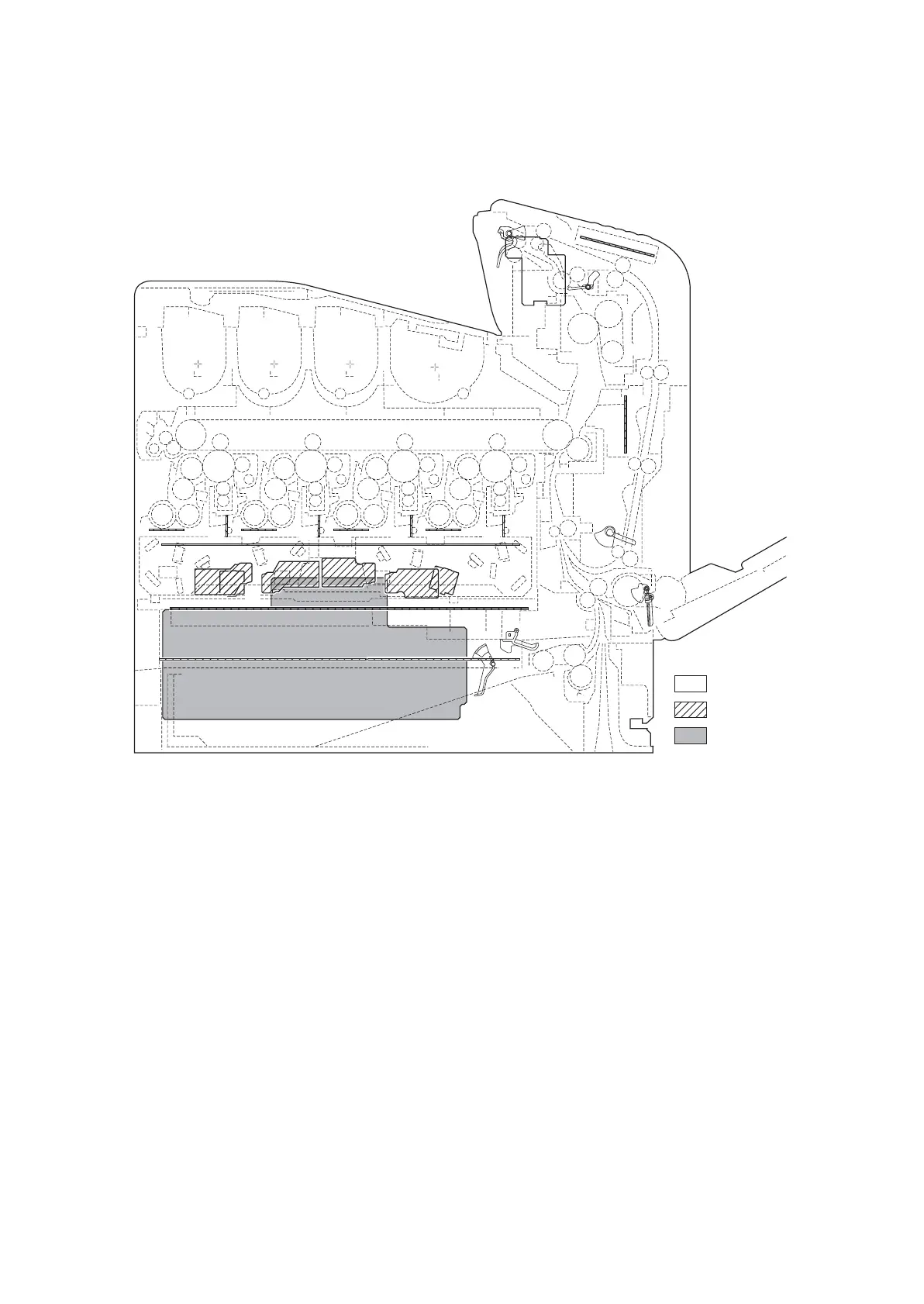

Figure 2-2-1 PWBs
1. Main PWB .................................................... Controls the software such as the print data processing and provides the
interface with computers.
2. Engine PWB................................................. Controls printer hardware such as high voltage/bias output control, paper
conveying system control, and fuser temperature control, etc.
3. Power source PWB...................................... After full-wave rectification of AC power source input, switching for
converting to 24 V DC for output. Controls the fuser heater lamp1/2.
4. High voltage PWB 1..................................... Generates main charging, developing bias, primary transfer bias (yellow,
cyan and magenta) and cleaning bias.
5. High voltage PWB 2..................................... Generates primary transfer bias (black), secondary transfer bias and
separation needle charging.
6. Operation panel PWB .................................. Controls the LCD display. Consists the LCD display, LED indicators and
key switches.
7. Paper exit PWB............................................ Interconnects the engine PWB and the electrical parts (paper exit sec-
tion).
8. Drum relay PWB .......................................... Interconnects the engine PWB and the drum units/developing units.
9. APC PWB C................................................. Generates and controls the laser beam. (cyan)
10. APC PWB M ................................................ Generates and controls the laser beam. (magenta)
11. APC PWB K ................................................. Generates and controls the laser beam. (black)
12. APC PWB Y ................................................. Generates and controls the laser beam. (yellow)
13. PD PWB M................................................... Controls horizontal synchronizing timing of laser beam. (yellow, black)
14. PD PWB Y ................................................... Controls horizontal synchronizing timing of laser beam. (magenta, cyan)
1
2
3
4
5
8
9
10
13
15
19 20 21 22
16 17 18
14
11
12
6
7
Machine inside
Machine left
Machine right

Kyocera ECOSYS P7035cdn Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	150000 pages per month
Number of print cartridges	4
Page description languages	Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3
Paper input type	Cassette, Paper tray
Total input capacity	650 sheets
Total output capacity	- sheets
Maximum input capacity	2650 sheets
Total number of input trays	2
Maximum number of input trays	6
Multi-Purpose tray input capacity	150 sheets
Custom media width	70 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	138 - 356 mm
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Wi-Fi	No
Mobile printing technologies	-
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Processor model	465S
Processor family	PowerPC
Maximum internal memory	1536 MB
Sound power level (standby)	33.7 dB
Sound pressure level (printing)	53.2 dB
Display	LCD
Certification	TÜV/GS, CE
Product color	Black, White
Display number of lines	5 lines
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0 W
Power consumption (standby)	86 W
Power consumption (printing)	622 W
Power consumption (PowerSave)	4 W
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	518 mm
Width	345 mm
Height	512 mm
