Kyocera ECOSYS P7035cdn Service Manual

2PR
2-1-3
(3) Paper conveying section
The paper conveying section conveys paper to the transfer/separation section as paper feeding from the cassette or MP
tray, or as paper refeeding for duplex printing. Paper by feeding is conveyed by the middle roller to the position where the
registration sensor is turned on, and then sent to the transfer/separation section by the front registration roller and rear
registration roller.

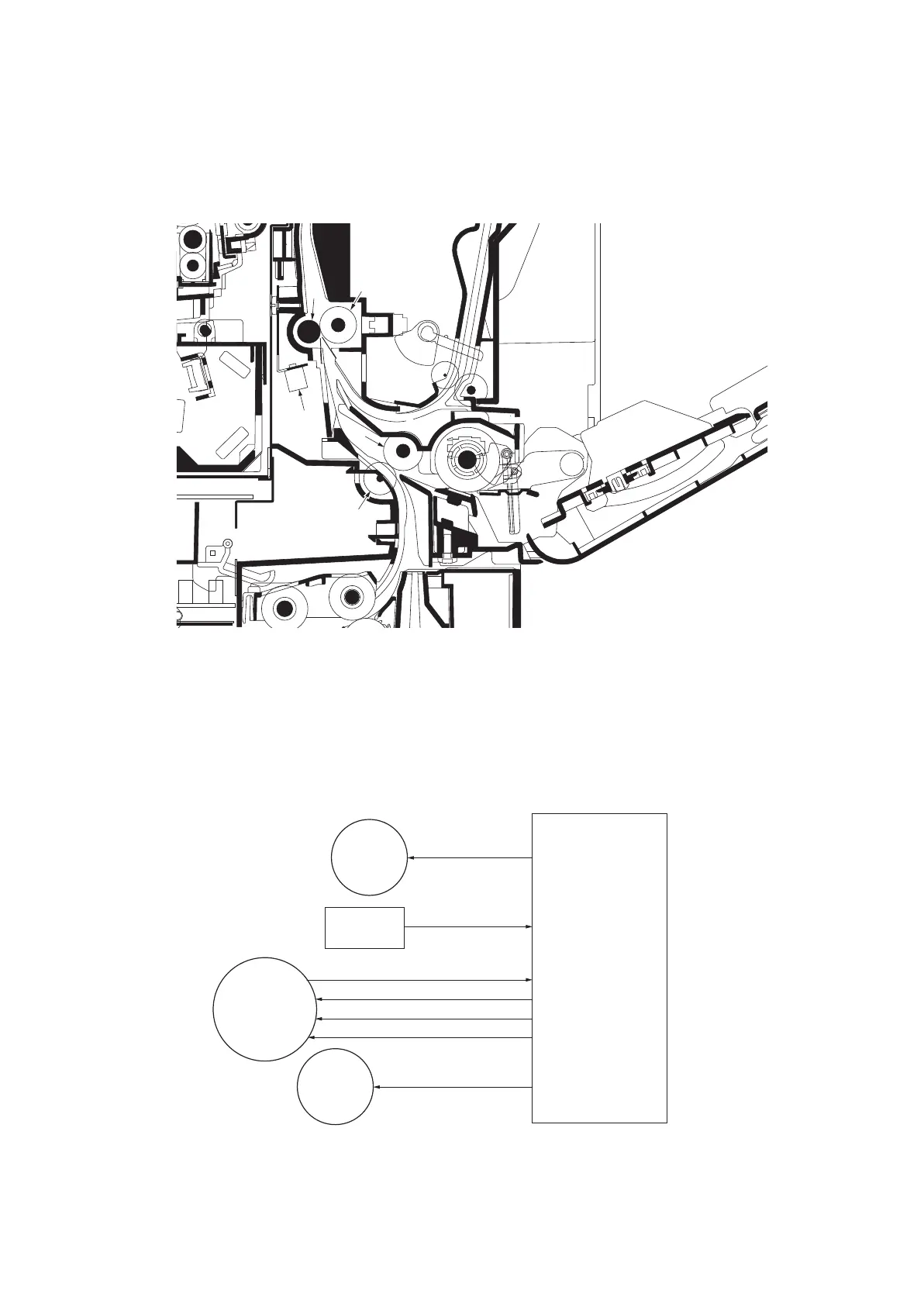

Figure 2-1-5 Paper conveying section
Figure 2-1-6 Paper conveying section block diagram
1
3
2
4
5
(1) Feed pulley
(2) Middle roller
(3) Registration sensor
(4) Front registration roller
(5) Rear registration roller
REGCLDRN
YC26-10
FEMOTRDYN
SPEEDSEL
FECLKCLK
YC3-1
REGPAP
YC7-2
YC3-2
YC3-3
REMOTREN
YC3-4
MIDCLDRN
YC3-7
Paper feed
motor
Engine PWB
Registration
clutch
Registration
sensor
Intermediate
clutch

Kyocera ECOSYS P7035cdn Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	150000 pages per month
Number of print cartridges	4
Page description languages	Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3
Paper input type	Cassette, Paper tray
Total input capacity	650 sheets
Total output capacity	- sheets
Maximum input capacity	2650 sheets
Total number of input trays	2
Maximum number of input trays	6
Multi-Purpose tray input capacity	150 sheets
Custom media width	70 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	138 - 356 mm
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Wi-Fi	No
Mobile printing technologies	-
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Processor model	465S
Processor family	PowerPC
Maximum internal memory	1536 MB
Sound power level (standby)	33.7 dB
Sound pressure level (printing)	53.2 dB
Display	LCD
Certification	TÜV/GS, CE
Product color	Black, White
Display number of lines	5 lines
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0 W
Power consumption (standby)	86 W
Power consumption (printing)	622 W
Power consumption (PowerSave)	4 W
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	518 mm
Width	345 mm
Height	512 mm
