Kyocera ECOSYS P7035cdn Service Manual

2PR
2-1-16
2-1-7 Paper exit/feed shift section
The paper exit/feedshift section consists of the conveying path which sends the paper that has passed the fuser section to
the top tray or the duplex section. The conveying path is switched by the change guide activated by the duplex solenoid.

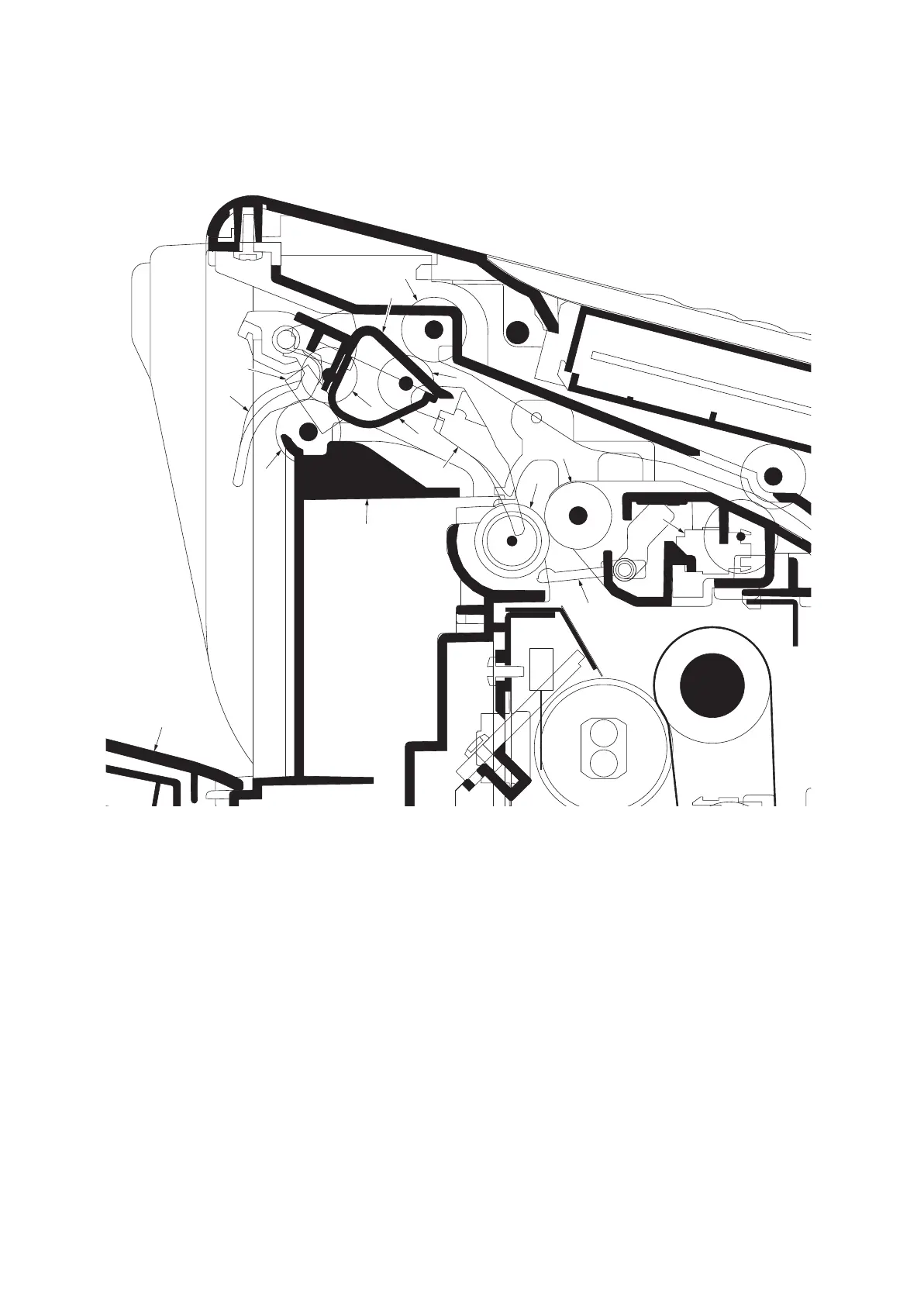

Figure 2-1-19 Paper exit/feed shift section
1
2
4
5
6
12
11
9
9
10
8
13
14
7
3
(1) Paper exit roller
(2) Paper exit pulley/
Paper exit pulley PFA
(3) Paper exit sensor
(4) Actuator (paper exit sensor)
(5) Change guide
(6) Paper exit housing
(7) FD roller
(8) Paper exit upper guide
(9) Middle pulley
(10) corrugation guide
(11) Paper full sensor
(12) Actuator (paper full sensor)
(13) DU roller
(14) Top tray

Kyocera ECOSYS P7035cdn Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	150000 pages per month
Number of print cartridges	4
Page description languages	Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3
Paper input type	Cassette, Paper tray
Total input capacity	650 sheets
Total output capacity	- sheets
Maximum input capacity	2650 sheets
Total number of input trays	2
Maximum number of input trays	6
Multi-Purpose tray input capacity	150 sheets
Custom media width	70 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	138 - 356 mm
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Wi-Fi	No
Mobile printing technologies	-
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Processor model	465S
Processor family	PowerPC
Maximum internal memory	1536 MB
Sound power level (standby)	33.7 dB
Sound pressure level (printing)	53.2 dB
Display	LCD
Certification	TÜV/GS, CE
Product color	Black, White
Display number of lines	5 lines
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0 W
Power consumption (standby)	86 W
Power consumption (printing)	622 W
Power consumption (PowerSave)	4 W
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	518 mm
Width	345 mm
Height	512 mm
