2-1-8 Duplex/conveying section
The duplex/conveying section consists of conveying path which sends the paper sent from the eject section to the paper
feed/conveying section when duplex printing.

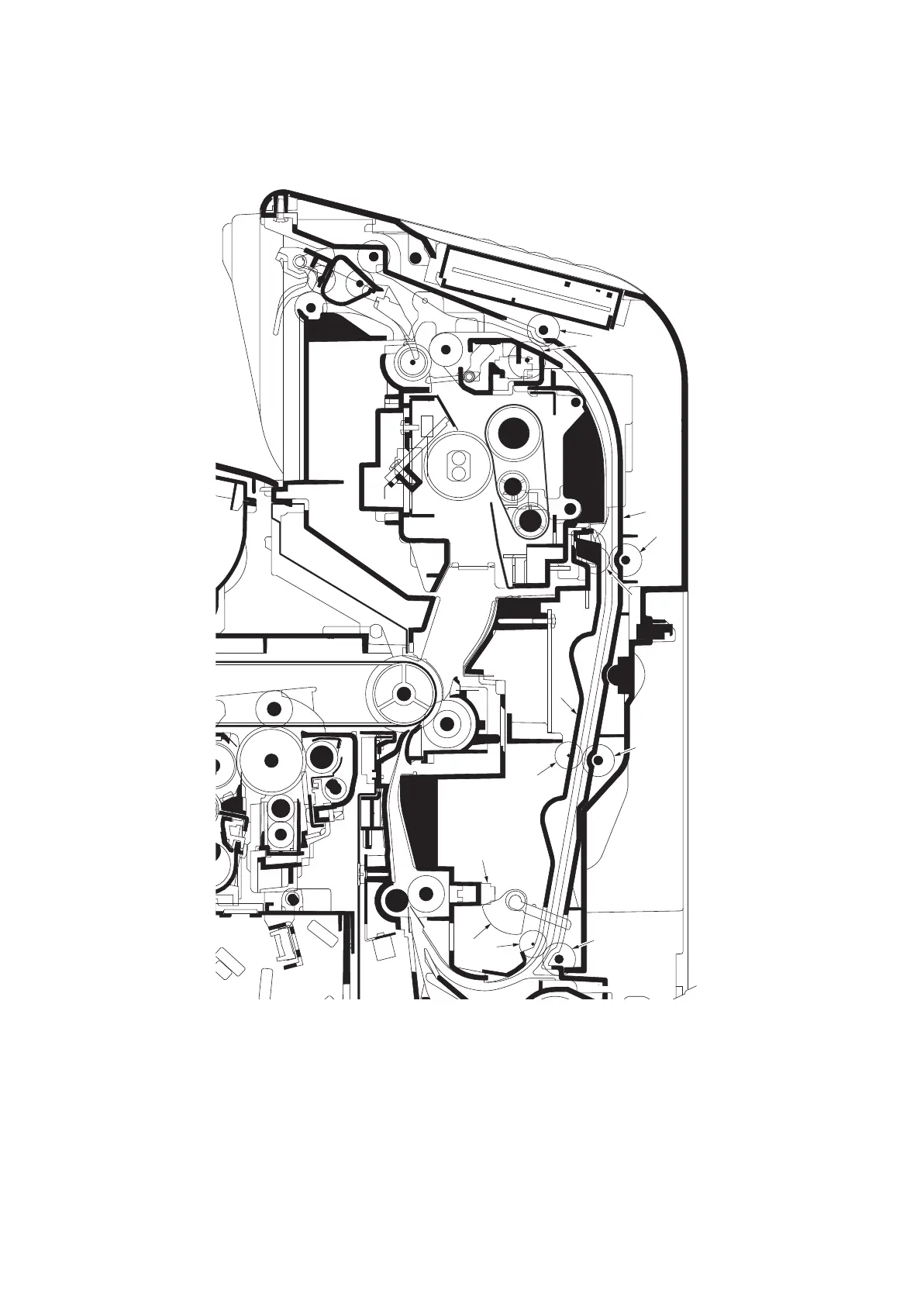

Figure 2-1-21 Duplex/conveying section
1
1
4
4
4
5
6
7
8
1
2
3
(1) DU roller
(2) DU feed roller
(3) Paper exit pulley
(4) PA pulley
(5) Duplex conveying sensor
(6) Actuator
(duplex conveying sensor)
(7) DU feed guide
(8) DU base
