1-1-2 Parts names
(1) Overall

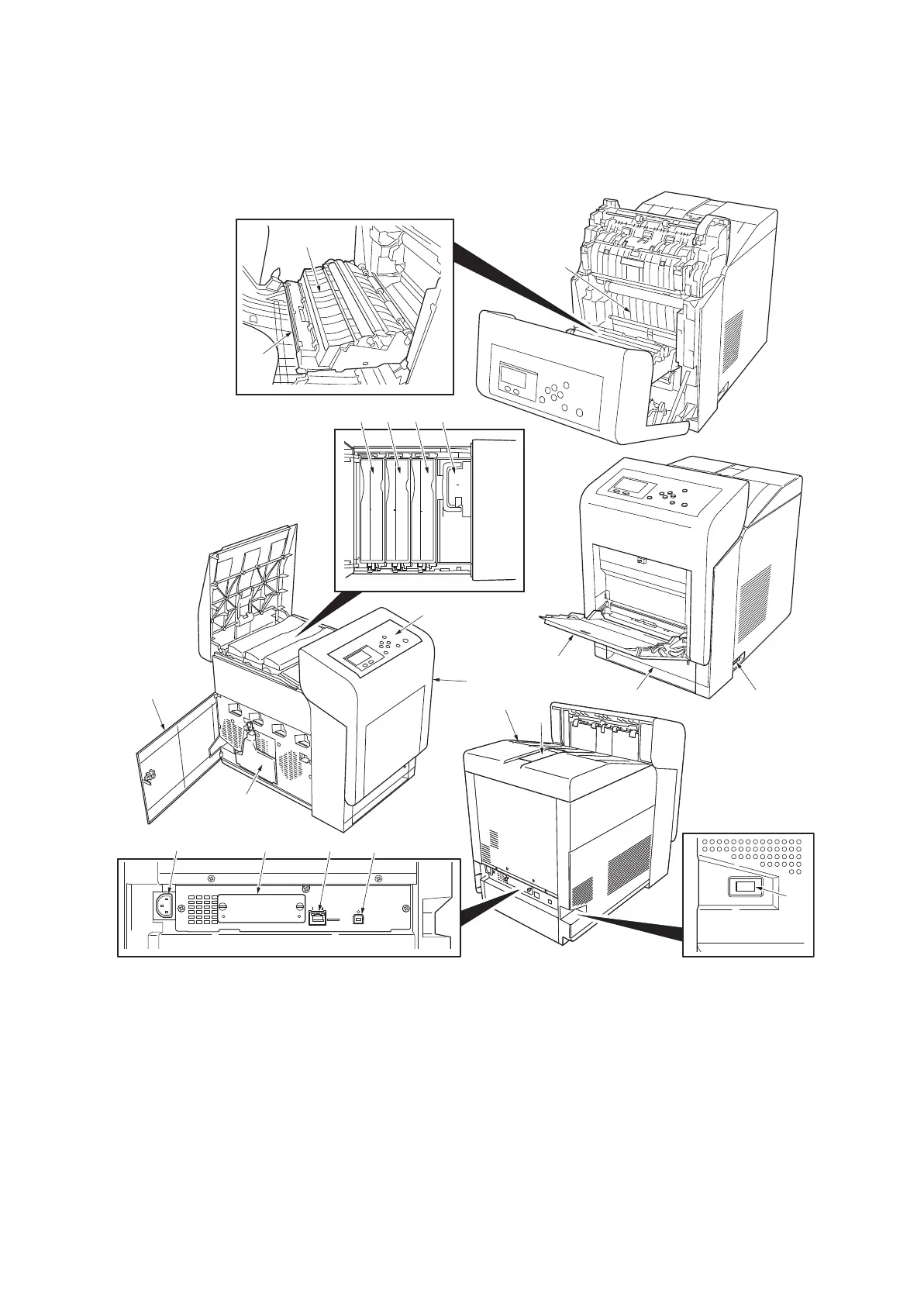

Figure 1-1-1
1
10
2
8
9
18
19
20
21
4
17
3
5
6
7
11 12 13
14
16
15
1. Operation panel
2. Front cover
3. Paper stopper
4. Top cover (Top tray)
5. MP (Multi-Purpose) tray
6. Paper cassette
7. Power switch
8. Left side cover
9. Waste toner box
10. Toner Container M
11. Toner Container C
12. Toner Container Y
13. Toner Container K
14. Paper transfer unit
15. Paper ramp
16. Duplex unit B
17. USB memory slot
18. AC inlet
19. Option interface slot
20. Network interface connector
21. USB interface connector
