Kyocera ECOSYS P7035cdn - Page 19

2PR
1-1-5

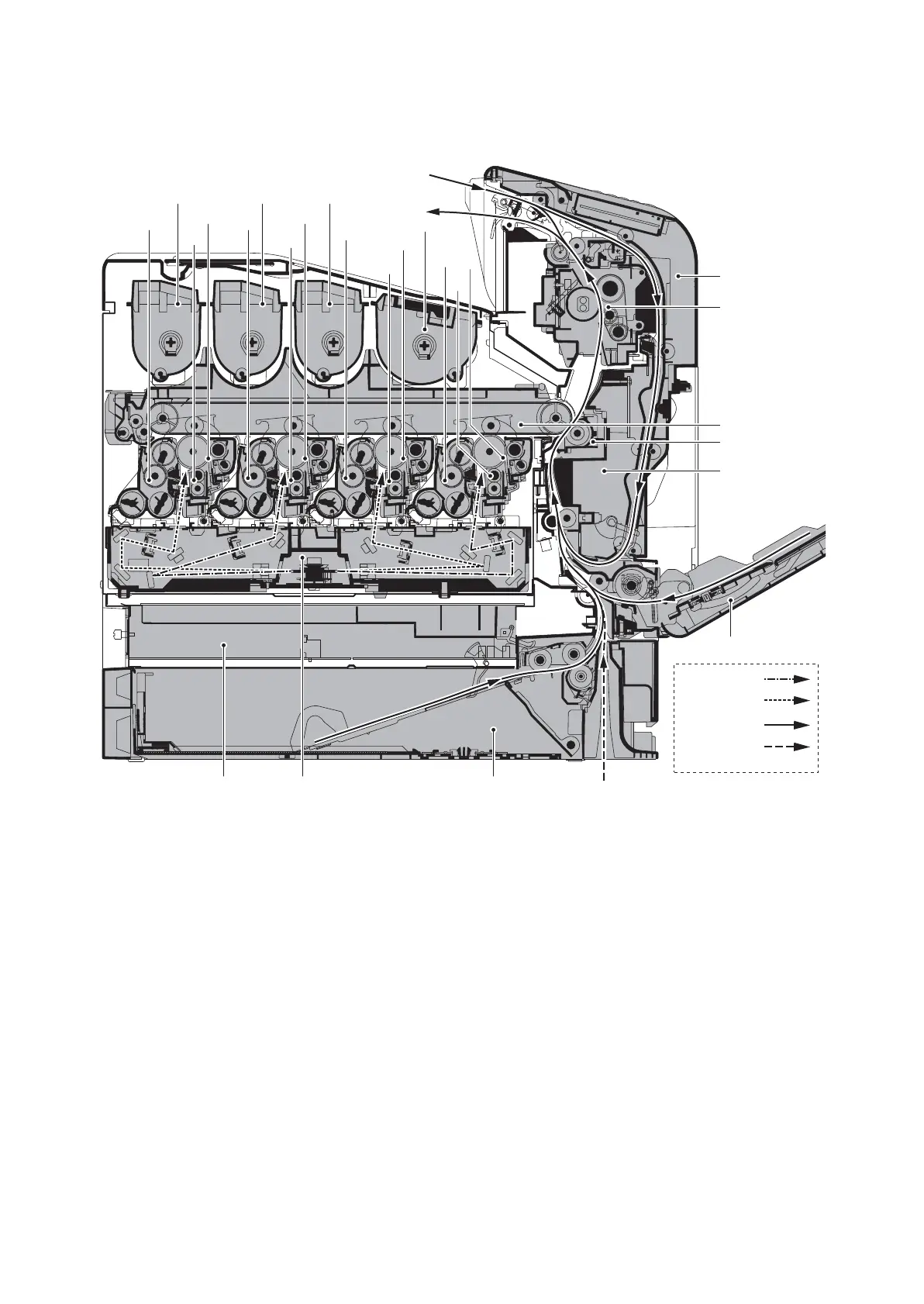

1-1-3 Machine cross section
Figure 1-1-3
18
15
19
23
24
3
21
22
2
125 12
20
16
11
7
17
4
8
9
13 14
5
6
10
Paper path
Light path
Light path
Paper path
(optional)
1. Cassette
2. MP tray
3. Duplex unit B
4. Drum unit M
5. Drum unit C
6. Drum unit Y
7. Drum unit K
8. Main charger unit M
9. Main charger unit C
10. Main charger unit Y
11. Main charger unit K
12. Laser scanner unit
13. Developing unit M
14. Developing unit C
15. Developing unit Y
16. Developing unit K
17. Toner container M
18. Toner container C
19. Toner container Y
20. Toner container K
21. Intermediate transfer unit
22. Transfer roller unit
23. Fuser unit
24. Front cover
25. Controller box
