Kyocera ECOSYS P7035cdn - Page 89

2PR
1-5-3
1-5-2 Outer covers
(1) Detaching and refitting the left rear cover, left upper cover and left front cover
Procedure
1. Open the left cover.
2. Remove the waste toner box.
3. Remove three screws.

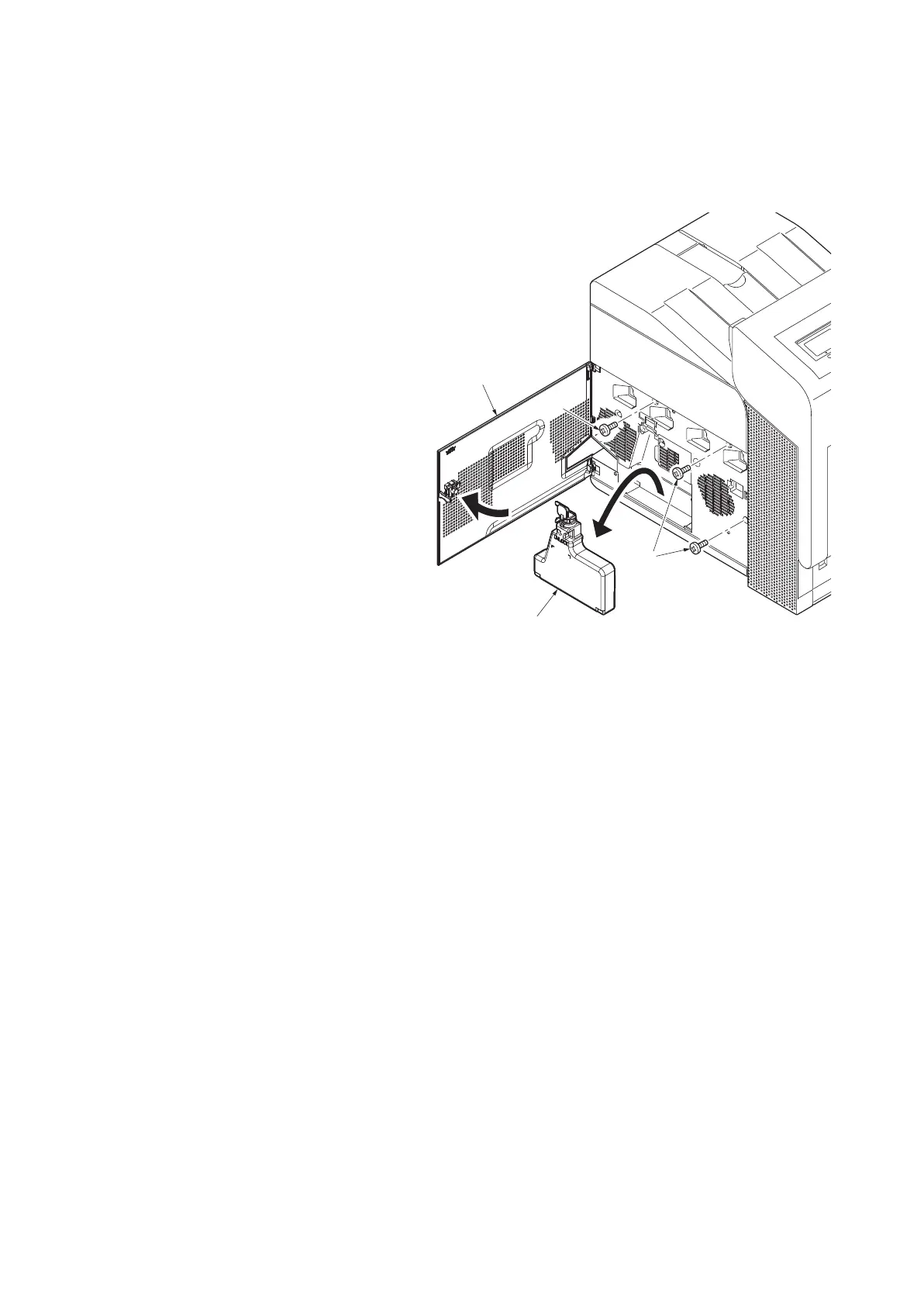

Figure 1-5-3
Left cover
Waste toner box
Screws
Screw
