2PR
1-5-6
(2) Detaching and refitting the right rear cover, right upper cover and right front cover
Procedure
1. Open the top cover.
2. Release ten hooks and then remove the
right rear cover.

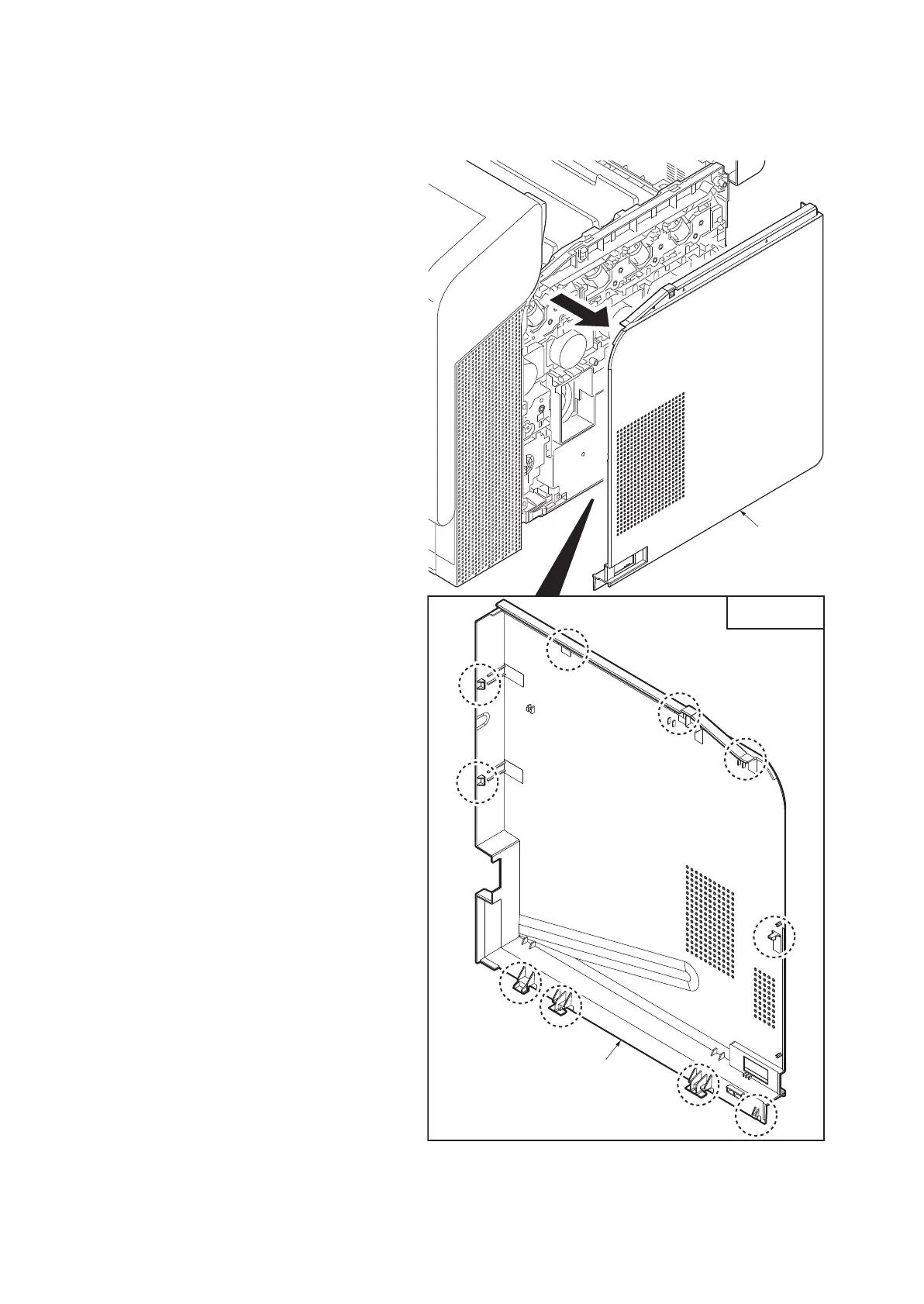

Figure 1-5-6
Hook positions
Right rear cover
Right rear cover
