Kyocera FS-C5300DN Service Manual

2HL/2HM/2HN
1-5-19
(2) Detaching and refitting the transfer roller unit
Procedure
1. Open the front cover.
2. Open the duplex unit B.
3. Release the two hooks and then remove the
transfer roller unit.
4. Check or replace the transfer roller unit and
refit all the removed parts.

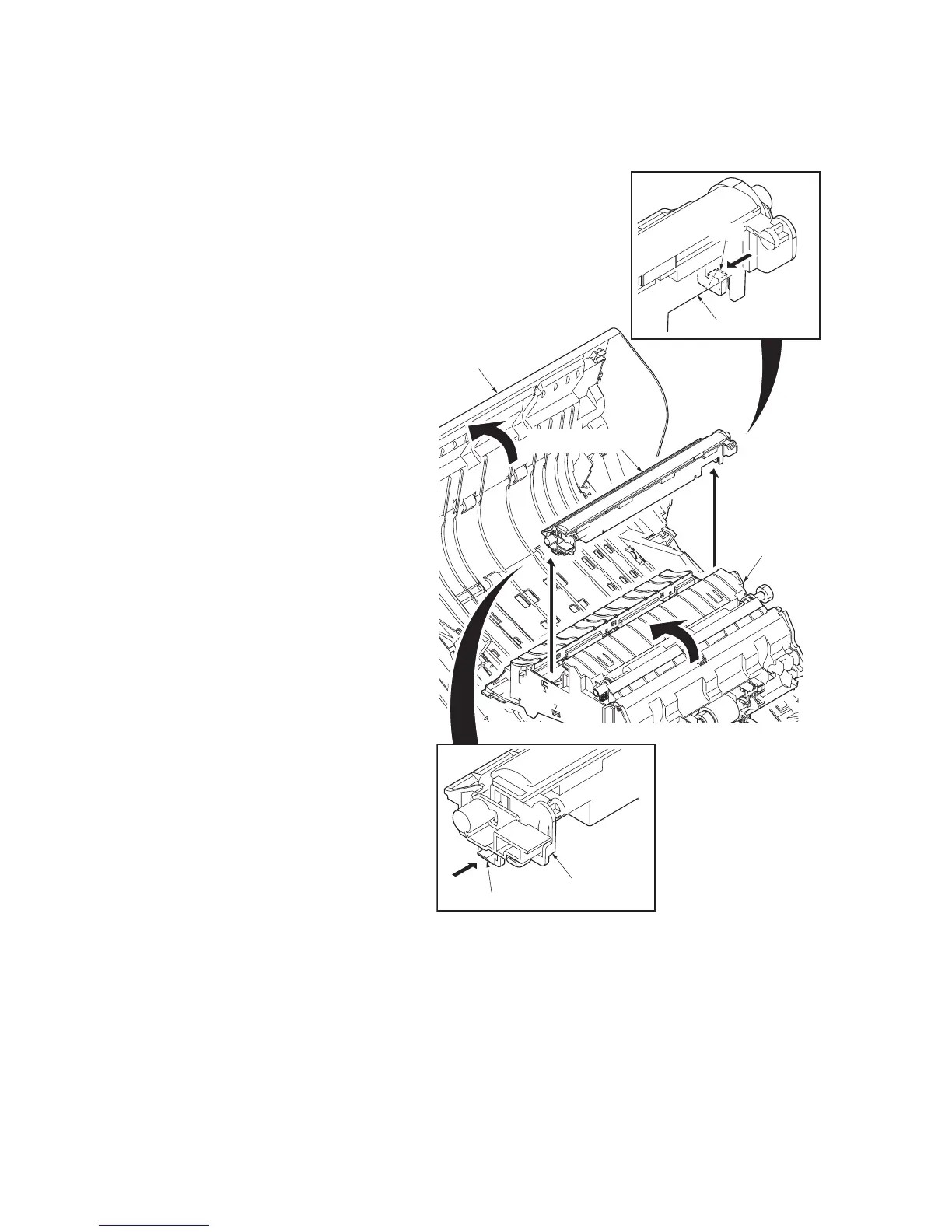

Figure 1-5-21
Hook
Transfer roller unit
Transfer roller unit
Transfer roller unit
Front cover
Duplex unit B
Hook
