PRESCRIBE Command Reference
6

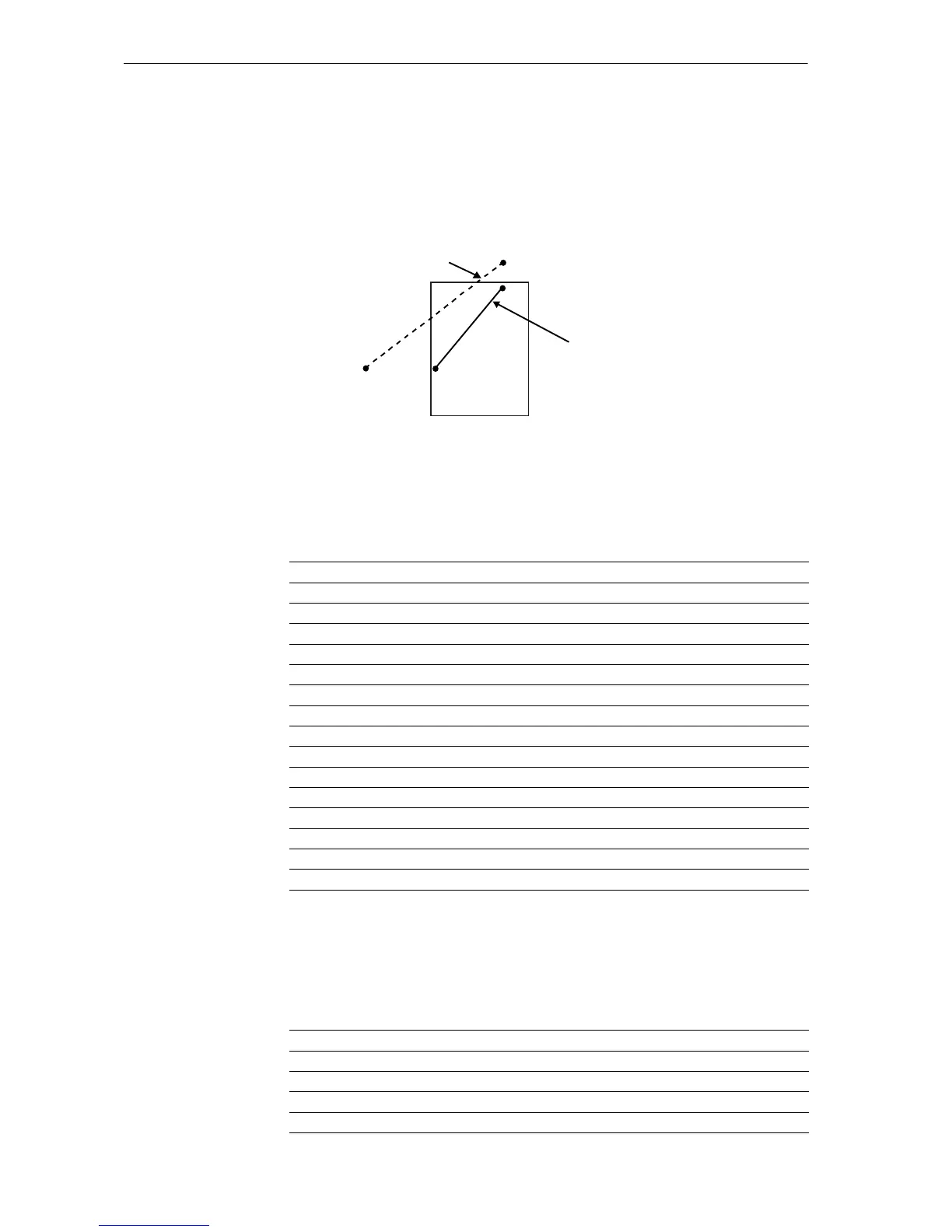

If an attempt is made to create figures outside of the printable area using these
commands, the coordinates are adjusted automatically so that the figures print inside the
printable area. As in the example below, this can produce printed results different from
what is expected.
Printing extremely complex figures can exhaust printing system memory. Downloadable
fonts can be particularly taxing on printing system memory, producing unexpected print
results. It may be possible to correct the problem by removing some of the downloaded
fonts or by simplifying the graphic. To determine current memory usage, refer to a status
page.
Path Mode Graphics Commands
The following commands provide a variety of path construction operators and painting
operators for stroking or filling paths.
Command Function Page
ARC draw filled-in ARC 28
BLK draw filled-in BLocK 40
BOX draw BOX 42
CIR draw CIRcle 52
DAP Draw to Absolute Position 73
DPAT select Dashed PATtern 78
DRP Draw to Relative Position 80
DRPA Draw to Relative Position specified by Angle 82
DZP Draw to Zero-relative Position 87
FPAT generate Fill PATtern 110
GPAT set Gray PATtern 122
PAT select fill PATtern 184
PIE draw PIE chart 199
SPD Set Pen Diameter 318
XPAT generate eXpanded fill PATtern 393
Command Function Page
CLIP CLIP current path 54
CLPR CLiP Rectangular area 55
CLSP CLoSe Path 57
CPTH Character PaTH 64
