Troubleshooting > Clearing a Staple Jam

Clearing a Staple Jam

Clearing a Staple Jam of the Inner Finisher

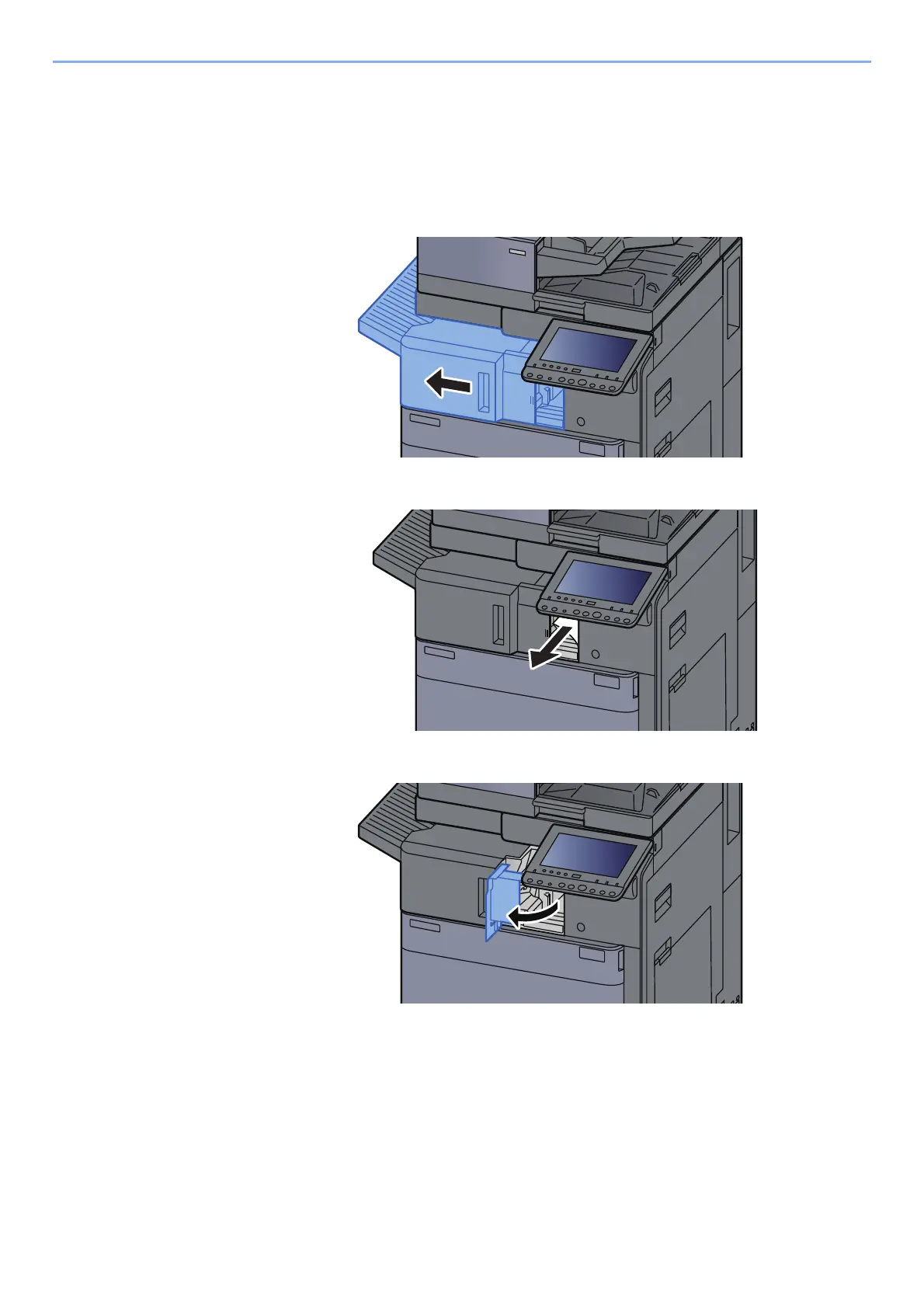

Open the inner finisher unit.

Remove any jammed paper.

Open the staple cover.
