KYORITSU KEW 3022 User Manual

―12―
(5)SettheRangeselectorswitchtotheOFFpositionand disconnect
thetestleadsfromtheinstrumentaftermeasurement.
<Autodischargefunction>
Thisfunctionallowselectricchargesstoredinthecapacitanceofthe
circuitundertesttobeautomaticallydischargedaftertesting.
SettheRangeselectorswitchtotheOFFpositionorturntheRemote
controlswitchoffwiththetestleadconnected.
DischargecanbemonitoredbytheLIVELED and mark.
(2)ConnecttheEarthprobetotheearthterminalofthecircuitunder
test.If the circuit isnotearthed, connect theEarthprobe to any
appropriateconductor.
(3)ConnecttheLineprobetothecircuitundertestandpresstheTest
buttonorRemotecontrolswitch.
(4)TakethereadingontheLCD.
Principleofoperation:
Resistance=Voltage/Current
RX=V/I

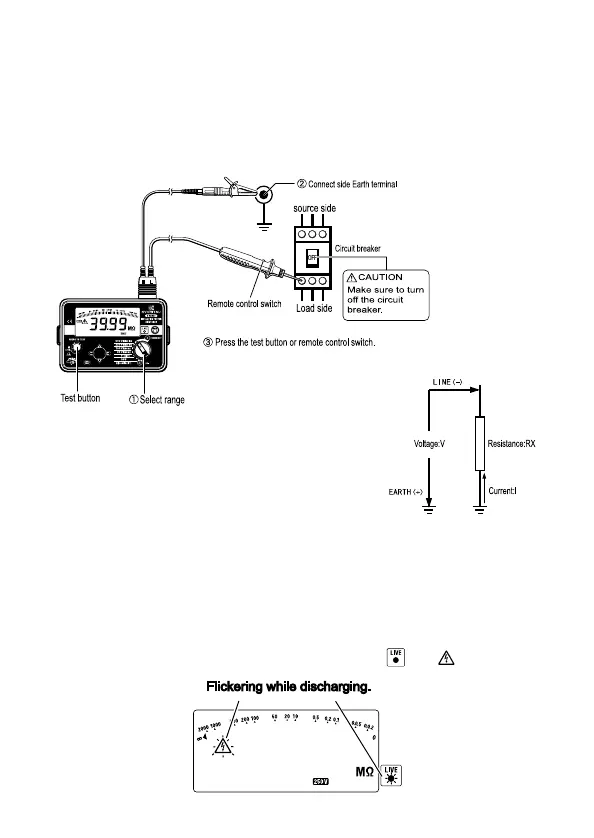

Fig.6
Fig.7
Fig.8
