L3 FA5000 - DISASSEMBLY; 1. GENERAL; 2. RIPS MODULE

COMPONENT MAINTENANCE MANUAL
AVIATION RECORDERS
Model FA5000
Initial Issue Page 403
Sep. 30/11
Cleaning
23−70–40
Use or disclosure of information on this sheet is subject to
the restrictions on the cover page of this document.
Left Beacon
Mount Bracket
(1-145)
Right Beacon
Mount Bracket
(1-145)
Underwater
Locator Beacon
(1-155A or 155B)
1/4” Hex Screw
(1-150)
Crash Survivable
Memory Unit
(CSMU)
(1-120)
Water Switch
#1
#4
#2
#3
Cross-Pattern
Torquing Sequence
(75 in./lbs.)

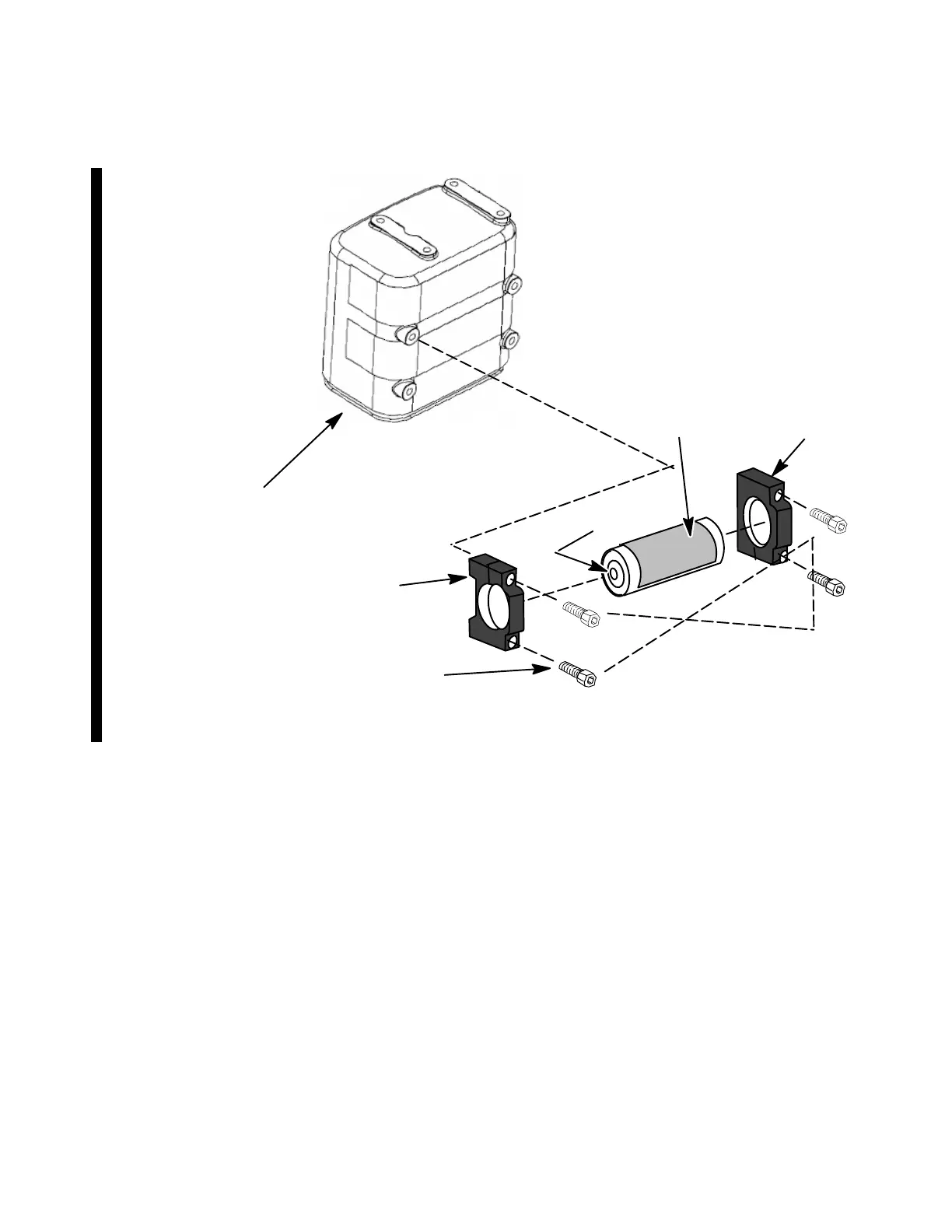

Figure 401. Underwater Locator Beacon
Rev. 06 Page 403
Mar. 16/16
