COMPONENT MAINTENANCE MANUAL
AVIATION RECORDERS
Model FA5000
Initital Issue Page 1
Sep. 30/11
Description and Operation
23–70−40
Use or disclosure of information on this sheet is subject to
the restrictions on the cover page of this document.
DESCRIPTION AND OPERATION
1. GENERAL
This Component Maintenance Manual describes the Model FA5000, Cockpit Voice Data
Recorder (CVDR). FA5000CVDR, P/N: 5001-6103−( ), 5011-6103-( ), 5001-6133-( )(with
video) and 5003-6103−( ). The FA5000 is a highly reliable recorder that is designed to
meet the performance requirements of ED−112. The Model FA5000 recorder is designed
as a maintenance free recorder. There is no periodic or scheduled maintenance required
for this recorder. It is considered an on condition LRU.
The FA5000 Recorder is trayless mounted short box which performs the cockpit voice re-
corder function of an ED-112 compliant Recorder. The FA5000 uses solid state Flash
Memory technology as the recording medium with recording capabilities available for
2-hours audio and/or 50−hours flight data.
MOUNTING CHASSIS
RIPS
ULB
CSMU
MAIN RECORDER
J−2
J−1

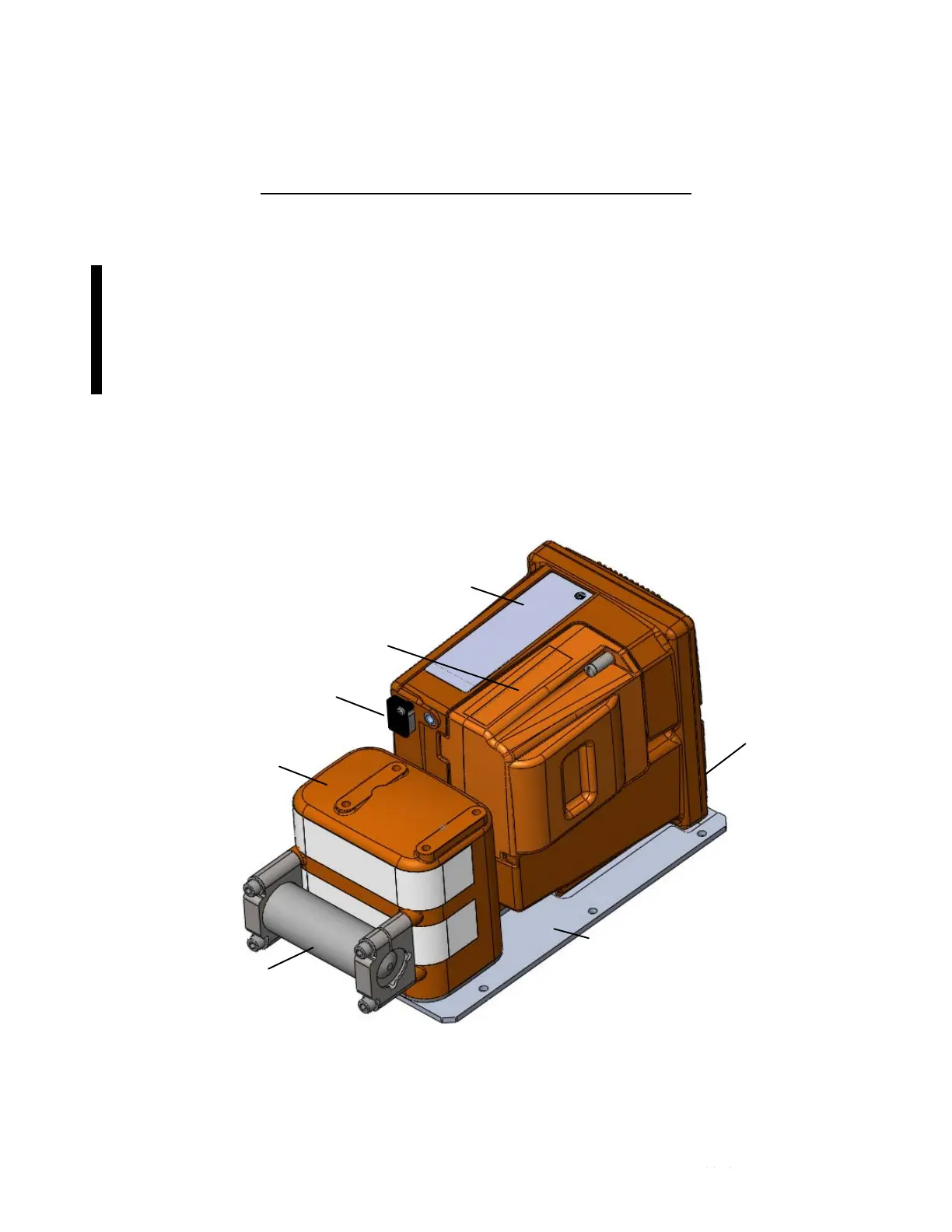

Figure 1.
Model FA5000 Cockpit Voice Recorder/Flight Data Recorder
Rev.06 Page 1
Mar. 16/16
