2.1.1 Wall-Mounting the TPSD (4B, 4 and 9 Cases Only)
The 4B, 4 and 9 cases of the TPSD are shipped from the factory with the necessary brackets installed for wall-
mounting
(The same bracket is used for rear mounting on a relay rack, 4B and 4 – 19/23” rack, 9 – 23/30”
rack)
The 72 & 44 cases do not come with wall mounting equipment, it is not recommended to attempt to
mount these cases on any wall.
Wall-Mount Procedure
To wall-mount the TPSD, install four 0.5 in (12.7 mm) bolts on the wall rated to support the charger weight plus
a safety factor of at least two times. Place the TPSD on the bolts, add appropriate mounting hardware and
tighten. Refer to the figures below for mounting dimensions and specifications.
NOTE: All above dimensions are in inches. For further TPSD cabinet information, see the outline drawings for
the 4B case (4B, 4B-23) 4 case (4, 4_23) and 9 case (9, 9_30) online at
http://www.lamarchemfg.com/info/enclosure-drawings.html

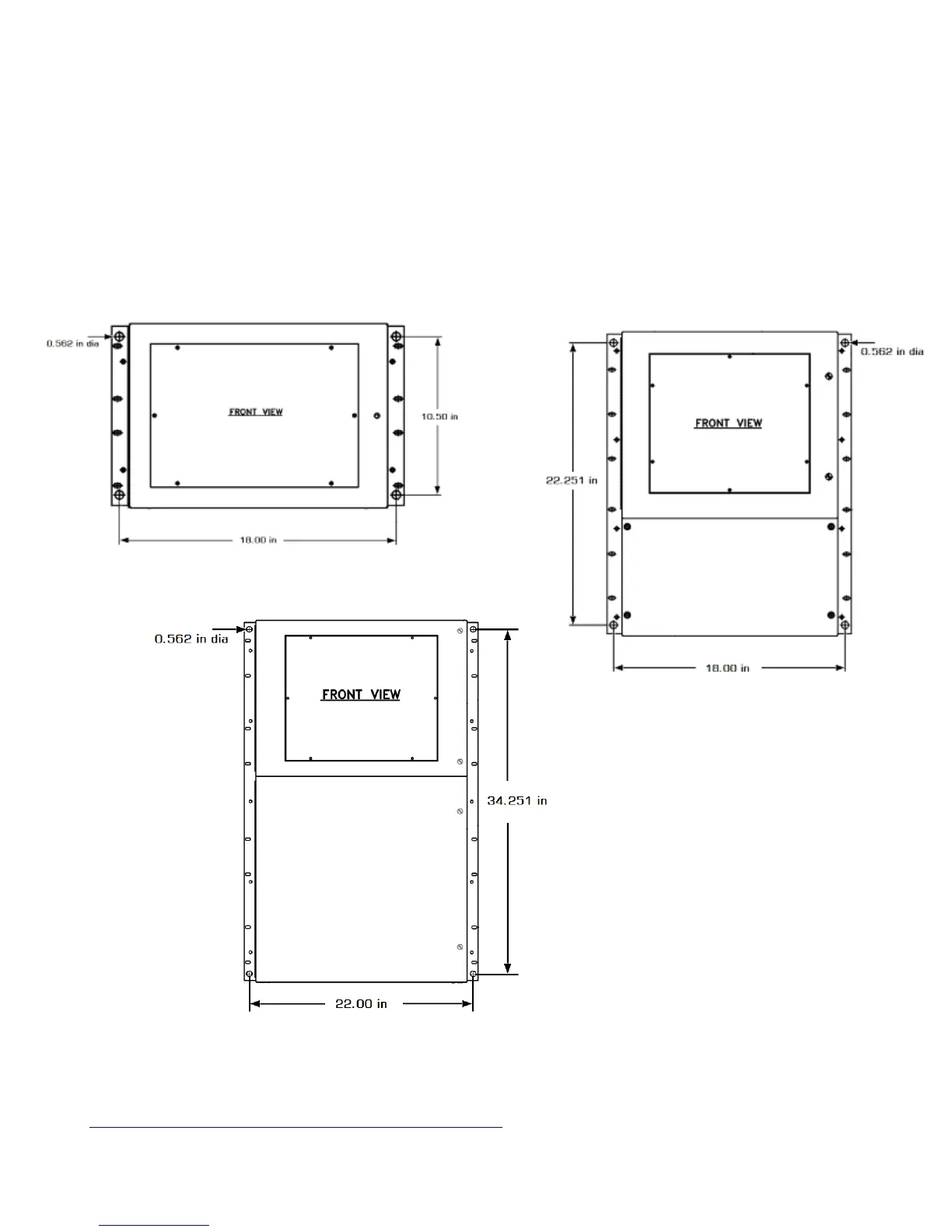

Figure 5 - 9 Case Bolt Pattern
Figure 3 - 4B Case Bolt Pattern
Figure 4 - 4 Case Bolt Pattern
