La Marche TPSD - Figure 6 - TPSD Case Footprint; Floor-Mounting the TPSD (All Cases)

5
2.1.2 Floor-Mounting the TPSD (All Cases)
Floor-mounting the 72 & 44 cases is standard. If it is desired to floor mount a charger with the 4B, 4 or 9 case
the floor-mount bracket is provided.
NOTE: The floor mount bracket adds an additional 2 in (51 mm) to the overall height of 4B, 4 and 9 cases. 72
and 44 cases include the height of the bracket in their overall height
Floor-Mounting Procedure
To floor-mount the TPSD, install four bolts into the floor. Place the TPSD on the bolts, add appropriate
mounting hardware, and tighten securely. The figure below shows the footprint and the bolt size of each TPSD
case style. (All dimensions are in inches)
A
B Bolt Size
4B 15.5
11.219
1/4
4 15.25 1/4
9 19.238 5/16
72 25.75 17.5 1/4
44 22 17.06 3/8

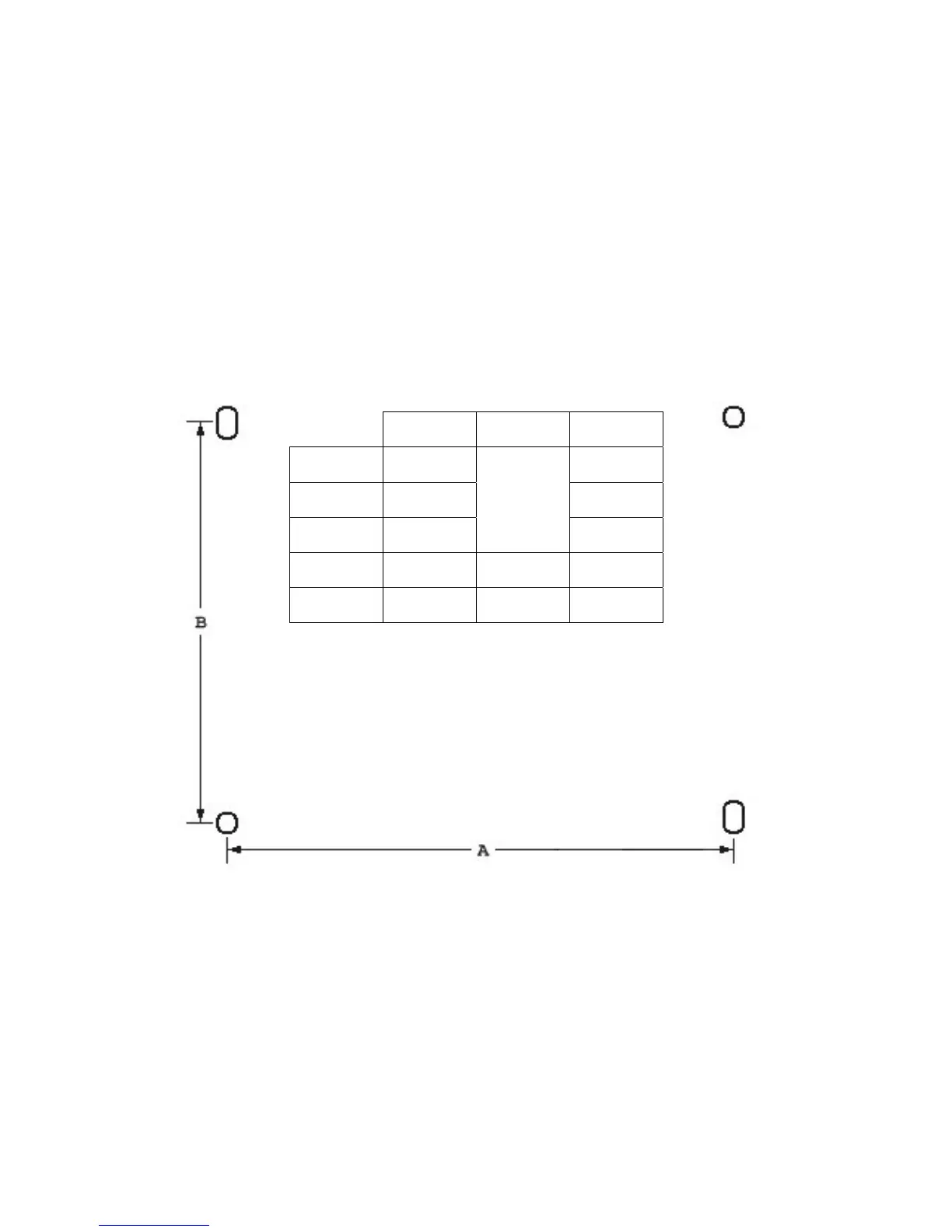

Figure 6 -
T
PSD Case Footprint
