LAARS Heating Systems

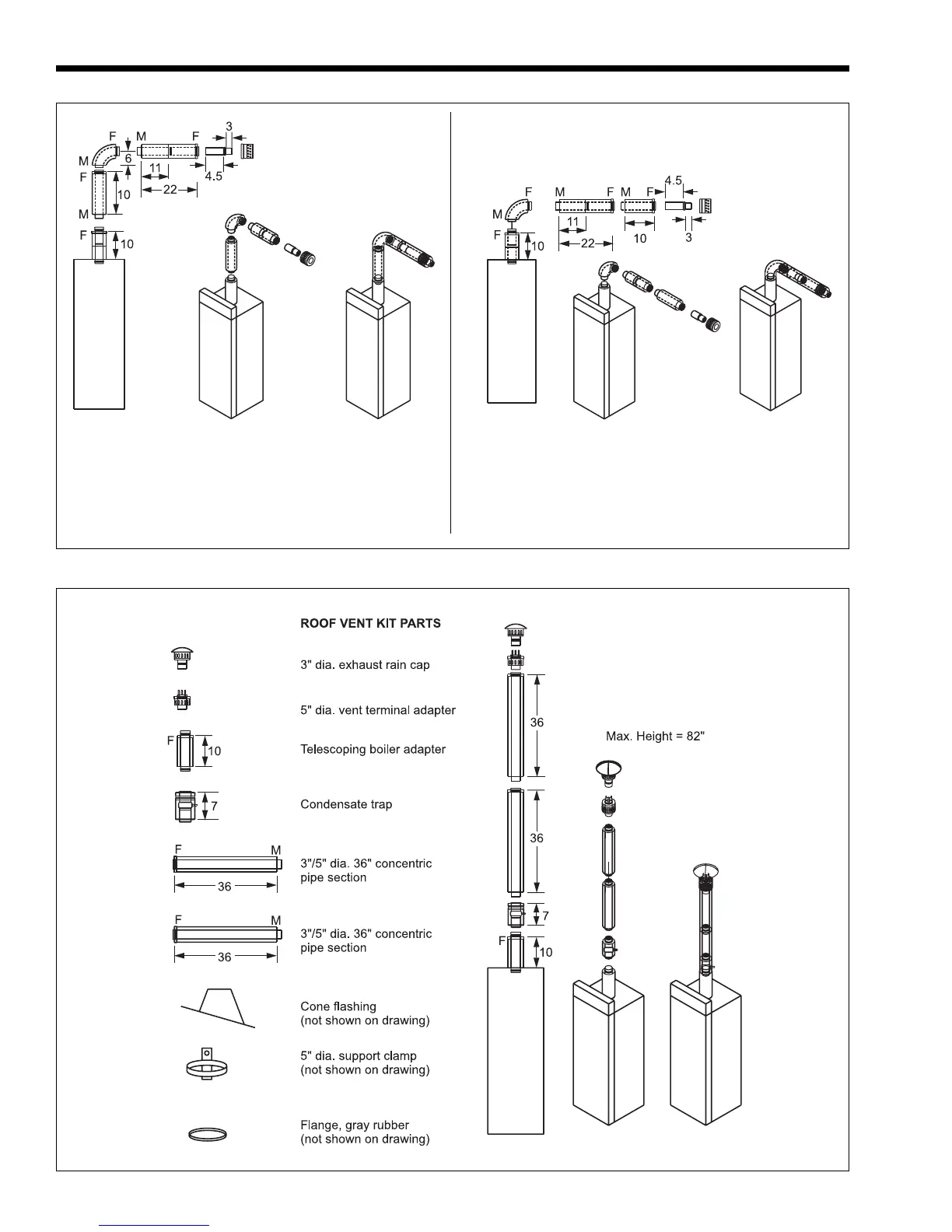

Figure 5. Horizontal Vent Kit 2400-009.
Configuration 1:
Maximum horizontal = 28"
Maximum vertical = 26"
(Measurements are from the centerlineof the venting to
the boiler top or face of outside wall.)
Dimensions shown in inches.
Configuration 2:
Maximum horizontal = 38"
Maximum vertical = 16"
(Measurements are from the centerline of the venting to
the boiler top or face of outside wall.)
Dimensions shown in inches.
Figure 6. Vertical Vent Kit 2400-011.
