Lab.gruppen FP+ Series FP 10000Q User Manual

More power
The Lab.gruppen FP+ Series was designed and engineered to achieve
unprecedented power and channel density in low-impedance applications.
Simply put, FP+ Series amplifiers allow you to configure racks for any sound
reinforcement application using fewer, smaller and lighter amplifiers.

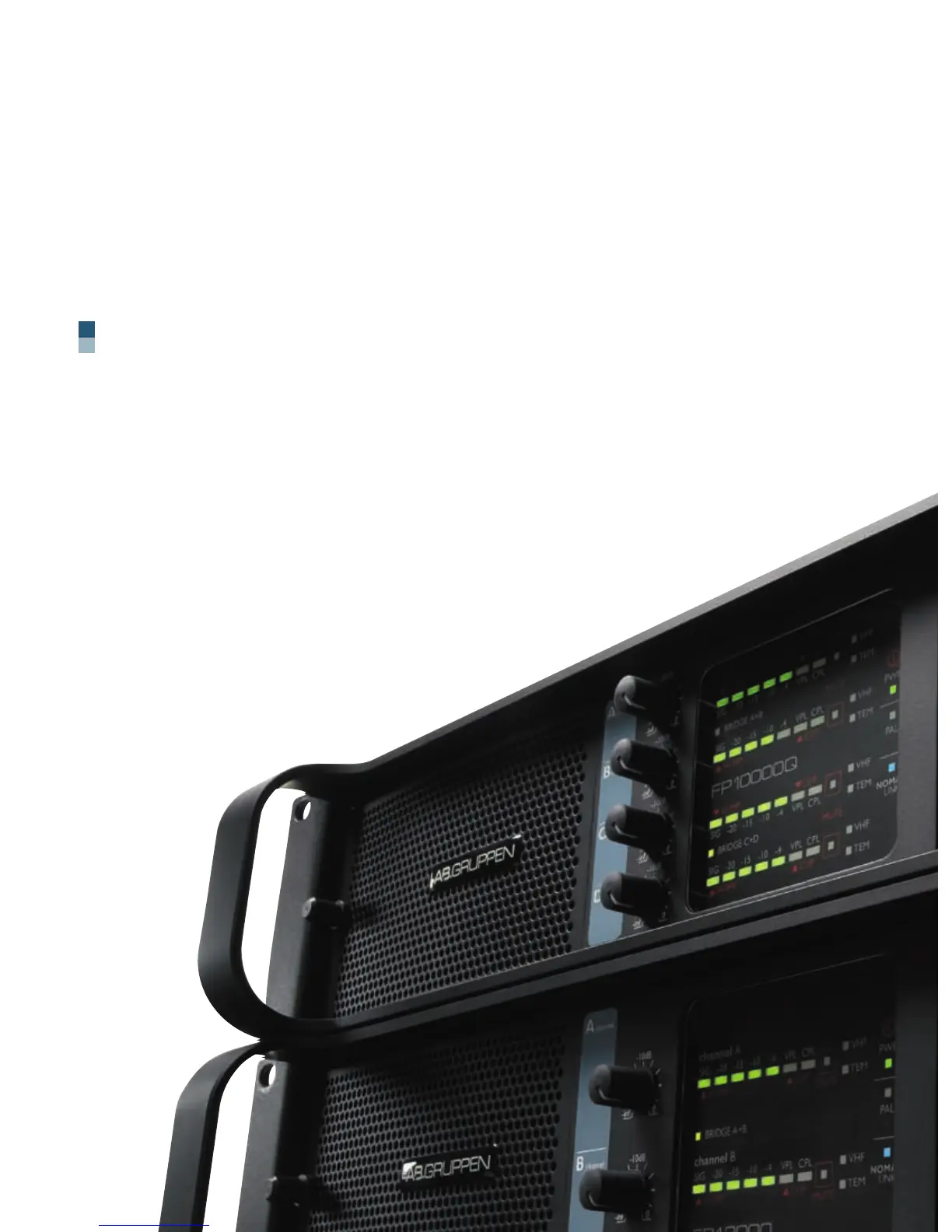

Slim, light, and ready to network
Each FP+ Series amplifier is a slim
2U high and weighs a mere 12 kg
(less than 27 lbs). Yet each produces
nearly twice the clean, sustained
output power of equivalent
predecessor fP Series models. Also,
we’ve added more standard features
to FP+, including an interface to Lab.
gruppen’s proprietary NomadLink
®
network and DeviceControl software
for remote amplifier control and
monitoring via Ethernet.
Extreme power density, configured
your way
A few compact racks now can
power an arena-sized system with
headroom to spare. The basic figures
tell the story. The power output levels
shown here in two- and four-channel
versions are continuous ratings into 2
ohms, measured to reflect real-world
conditions while amplifying the most
demanding program material.

Lab.gruppen FP+ Series FP 10000Q Specifications

General

Output Power (per channel at 2 ohms)	2500 W
Output Power (per channel at 4 ohms)	2100 W
Output Power (per channel at 8 ohms)	1300 W
Channel Separation	>70 dB
Frequency Response	20 Hz - 20 kHz
Total Harmonic Distortion (THD)	< 0.1%
Signal to Noise Ratio	>112 dB
Damping Factor	>500
Input Sensitivity	1.4 V
Input Impedance	20 kOhm
Voltage Gain	35 dB
Cooling	Temperature controlled fan
Protection	Thermal, short circuit, DC
Dimensions (W x H x D)	483 x 88 x 396 mm
Weight	12 kg
