Lab.gruppen PLM Series Quick Start Guide

Quick Start Tutorial
25
PLM Series Quick Start and Field Reference Guide Rev 1.3.5
21. Tap the POST EQ button so it changes to read INPUT MIX.
22. Tap any of the blue INPUT MIXER summary blocks associated with the Auxiliary Output channel to
open the separate Aux Input Mixer.
23. Ensure INPUT 2 is turned on and set to 0.00 dB, and that all other inputs are OFF.
24. Tap the bottom-right return button to close the Aux Input Mixer.
25. As Module B’s processing is not required for this conguration, open Module B’s input mixer, and
turn all inputs OFF. Press the return key/button to navigate back to I/O CONFIG.
26. Tap any of the four magnifying glass icons on the right-side of Module A’s block diagram to open the
Output Conguration screen.
27. Verify that the Output Conguration is routed as shown in Figure 6-1 below where Source = Module
Outputs and Destination = Analog Outputs.

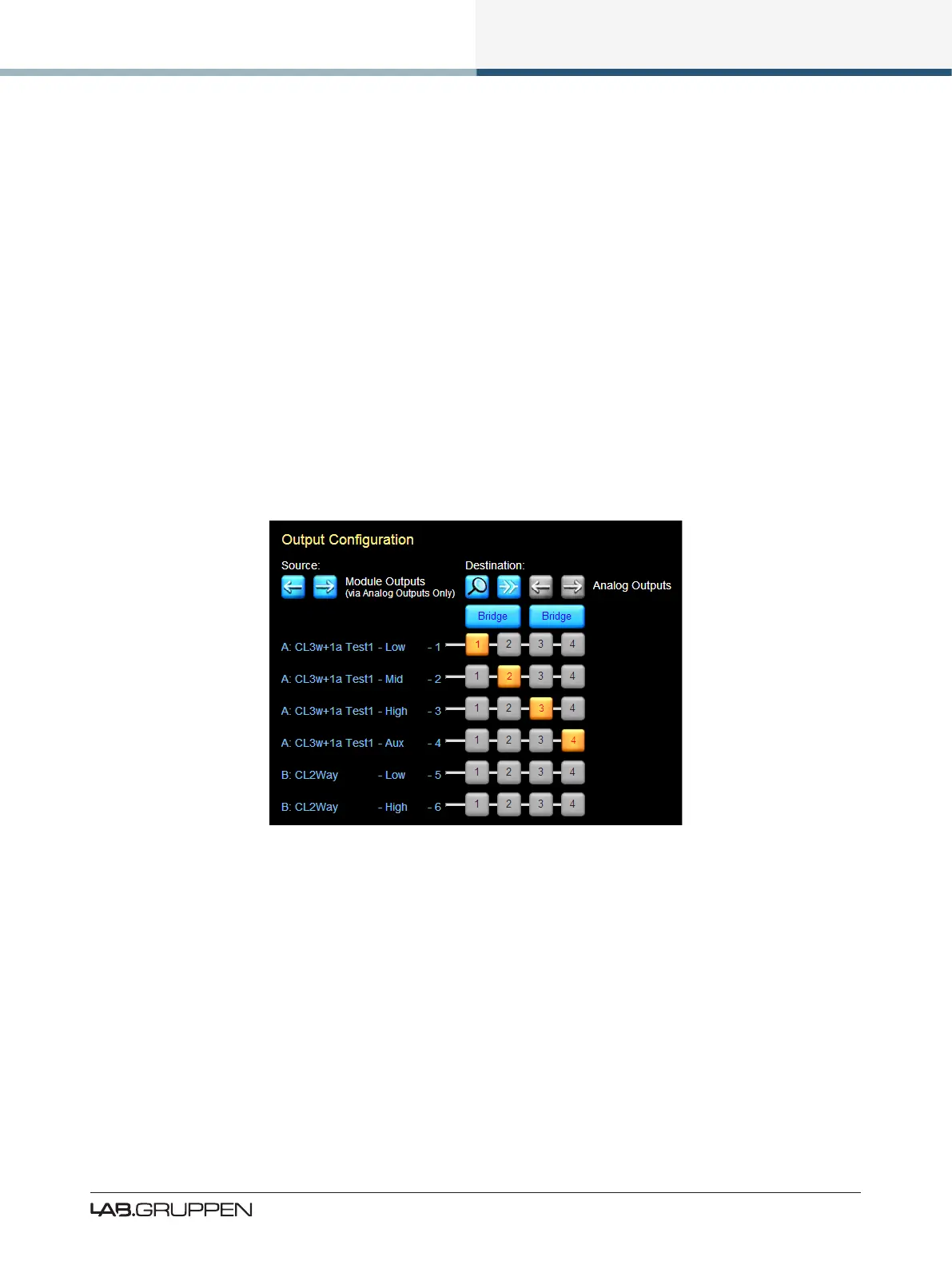

Figure 6-1: Classic 3+1 Analog Output Conguration
28. If the output assignments are not as shown, tap the Clear All Assignments button (split arrows);
tap YES to the warning dialog box; then tap the numeric buttons correctly route the audio to the
appropriate physical output/s.
29. Tap the return key to close this screen and return to I/O CONFIG.
30. The following settings on the left-side of the I/O CONFIG screen should be correct by default; if they
are incorrect, please refer to the Lake Controller Operation Manual for further details.
▸ DIGITAL CLOCK:
Internal – 96 kHz

Lab.gruppen PLM Series Specifications

General

DSP	Yes
Network	Ethernet
Connectors	XLR, SpeakON
Cooling	Forced air
Protection Features	Overheat, DC, short circuit
Control Software	Lake Controller
