LabelMill LM3605 - Page 48

LM3605 Print & Apply Label Applicator
USER'S MANUAL
Page 48 Made in the U.S.A.
© 2019 LABELMILL
12/01/2019 Model LM3605
3-20

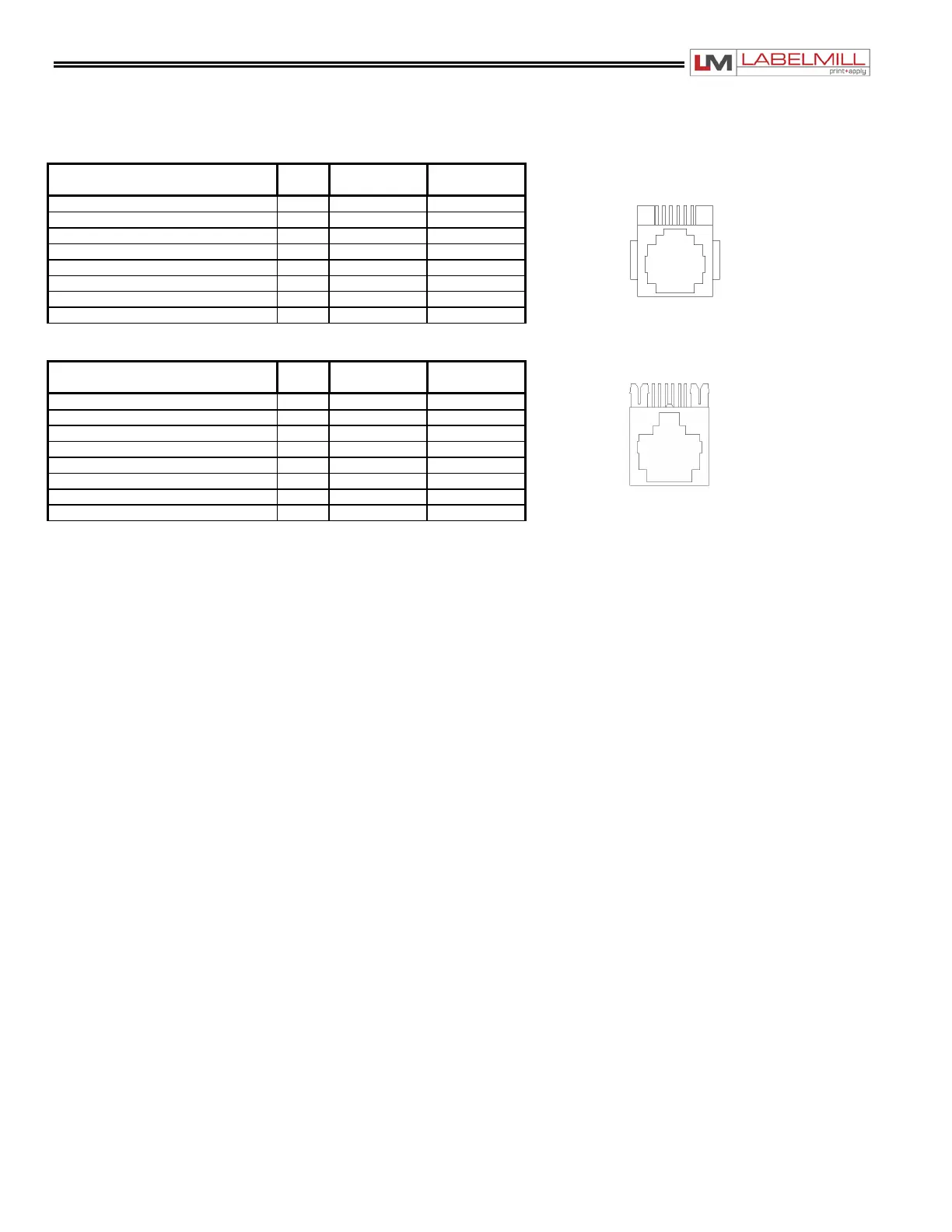

KEYPAD / DISPLAY RS232
P8
PIN #
I/O
ADDRESS
232 XMIT
1
232 RCV
2
GND
3
+24VDC
4
GND
5
6
7
8
SERIAL AUX RS232
P9
PIN #
I/O
ADDRESS
232 XMIT
1
232 RCV
2
GND
3
4
5
6
7
8
