MSD Legend Series Operation & Maintenance Manual | 19
BLEED INSITE
1. Remove the cover from the InSite box.
2. Connect a bleed hose (part number 227831) to the CW and CCW bleed couplers on the InSite control box. Be aware
that the shear may move slightly when connected.
Note: If you have a non-rotating shear, you will not have CW and CCW bleed couplers.
Do not connect the CW or CCW connections to the ROD or
BORE connections. Seal damage and unexpected movement
may result.

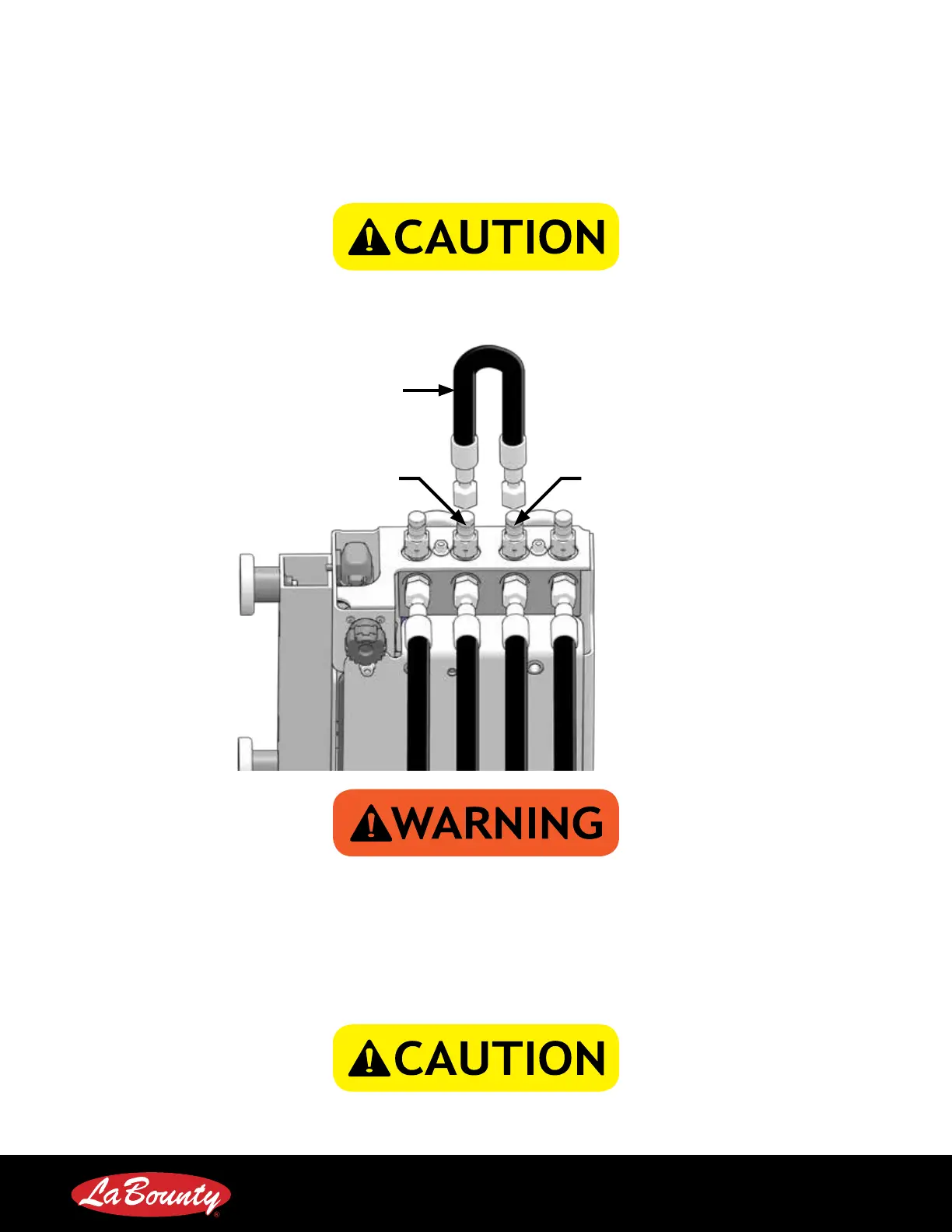

Bleed Hose
CCW Bleed Coupler
CW Bleed Coupler
Clear all persons and equipment from the area of operation
and machine movement. NEVER move loads over people or
equipment. When viewing the operation of the attachment,
maintain a safe distance of at least 30 feet (10 meters).
3. Power up the excavator and make one full rotation in both the clockwise and counter clockwise directions.
4. Power down the excavator and relieve hydraulic pressure.
5. Disconnect the bleed hose from the CW and CCW bleed couplers.
Do not connect the CW or CCW connections to the ROD or
BORE connections. Seal damage and unexpected movement
may result.
