20 | MSD Legend Series Operation & Maintenance Manual

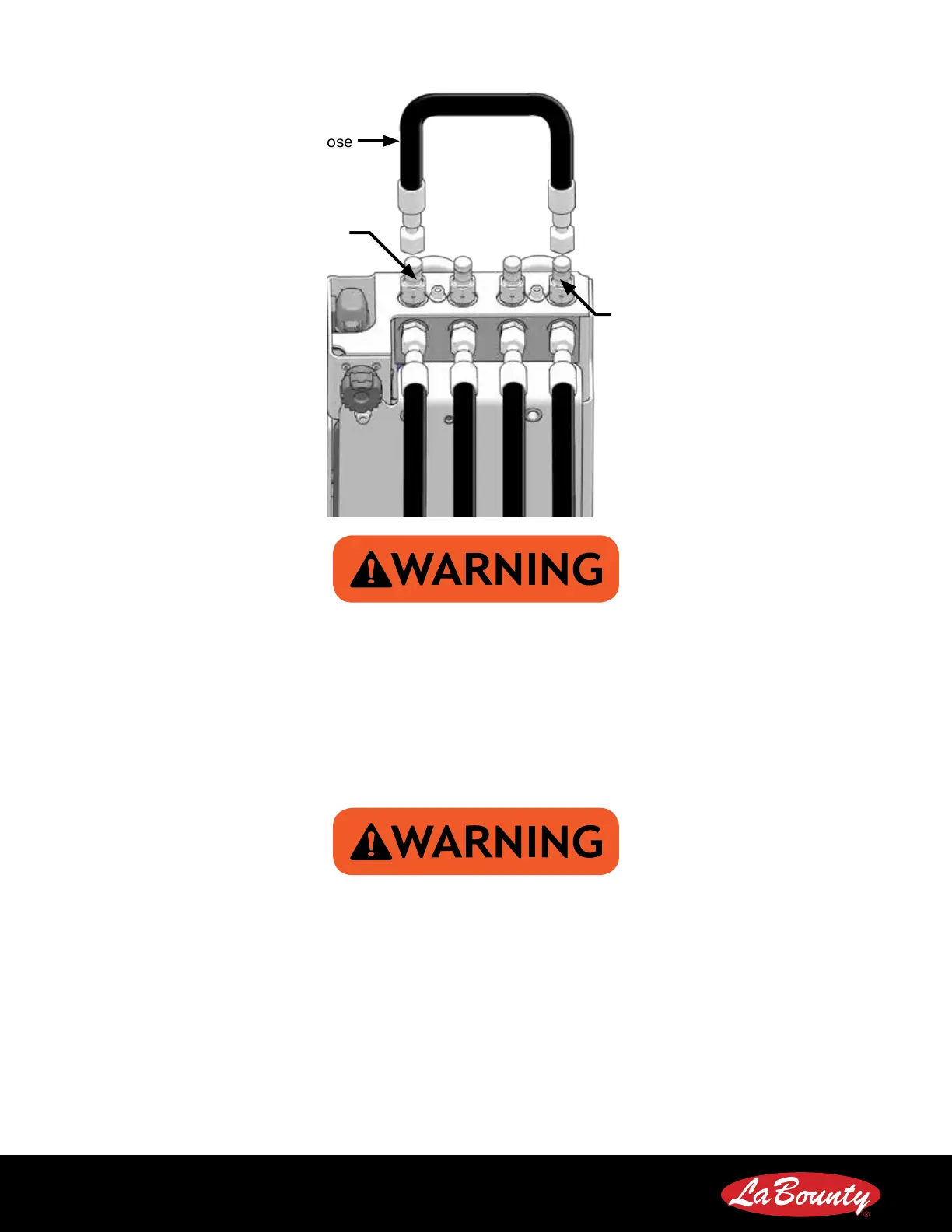

6. Connect a bleed hose (part number 227831) to the ROD and BORE bleed couplers on the InSite control box.
Bleed Hose
ROD Bleed Coupler
BORE Bleed Coupler
Clear all persons and equipment from the area of operation
and machine movement. NEVER move loads over people or
equipment. When viewing the operation of the attachment,
maintain a safe distance of at least 30 feet (10 meters).
7. Power up the excavator and fully open and close the shear jaws.
8. Power down the excavator, relieve hydraulic pressure and remove the bleed hose from the bleed couplers.
CHECK FOR LEAKS
Keep hands and body away from pinholes and nozzles which
can penetrate the skin, causing serious injury. Use a piece of
cardboard to search for leaks.
1. Starting at idle, or low hydraulic ow, operate the shear.
2. Visually inspect the attachment for leaks.
3. Set the hydraulic power supply to full operation ow and pressure.
4. Visually inspect the attachment for leaks.
5. Check the hydraulic oil reservoir and ll as stated in the excavator manual.
