42 | MSD Legend Series Operation & Maintenance Manual
Slide Screw Removal

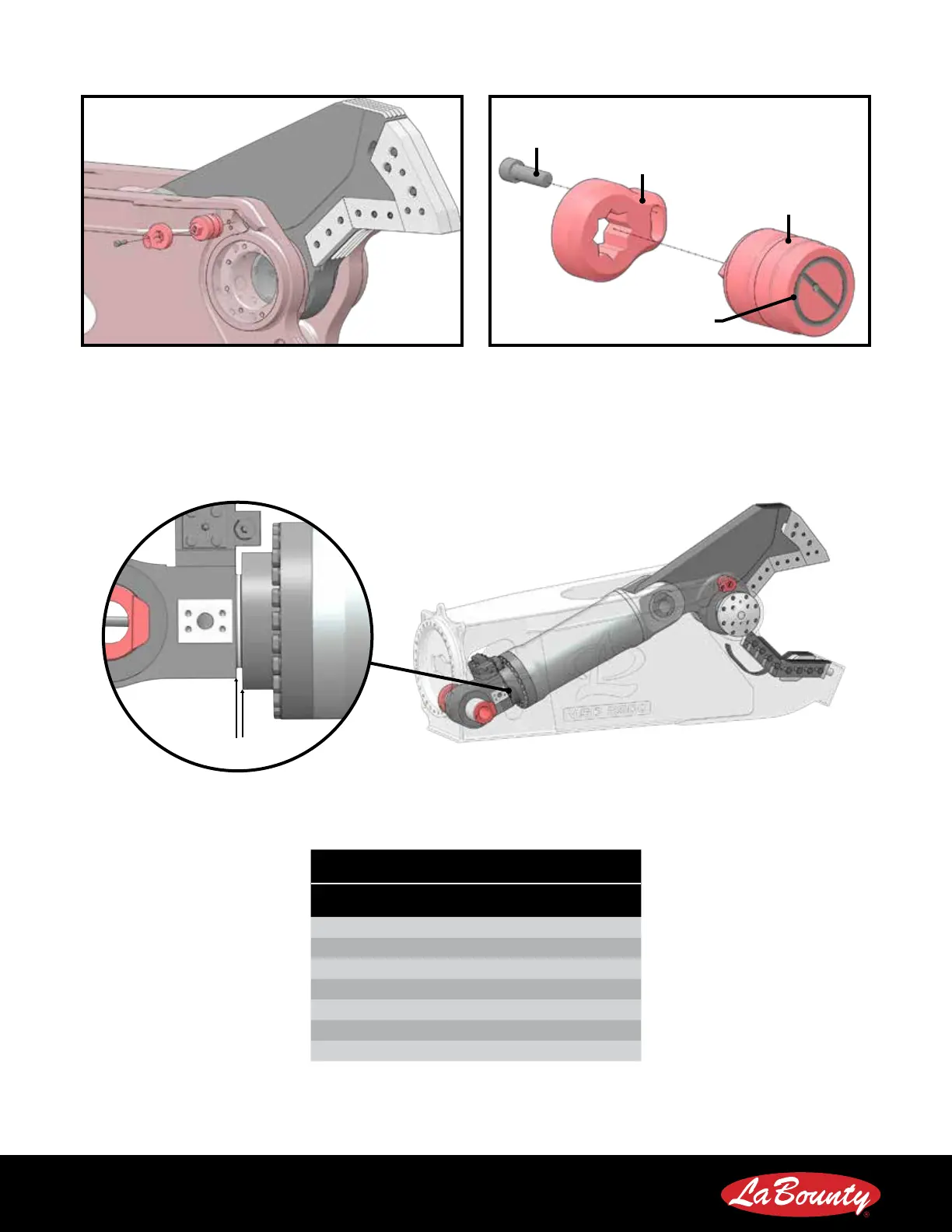

FIGURE 35
LOCK PLATE
SLIDE SCREW
GREASE
CHANNELS
LOCK PLATE
SCREW
CHECK THE CYLINDER GAP
1. Fully open the shear jaws.
2. Measure the gap between the rod eye shoulder and the head face, as shown in Figure 36.
Cylinder Gap
Measuring the Cylinder Gap
FIGURE 36
If the cylinder gap exceeds the value in the “Maximum Cylinder Gap” table, contact the LaBounty Service Department at
(218) 834-6901.
Maximum Cylinder Gap Table
MSD Model Maximum Cylinder Gap
1500 0.50 inches (13 mm)
2000 1.44 inches (37mm)
2250 0.94 inches (24 mm)
2500 0.56 inches (14 mm)
3000 0.56 inches (14 mm)
4000 0.56 inches (14 mm)
4500 1.00 inches (24.5 mm)
To Next Page
