3.2. Description of the parts of the appliance
3.2.1. Operating components

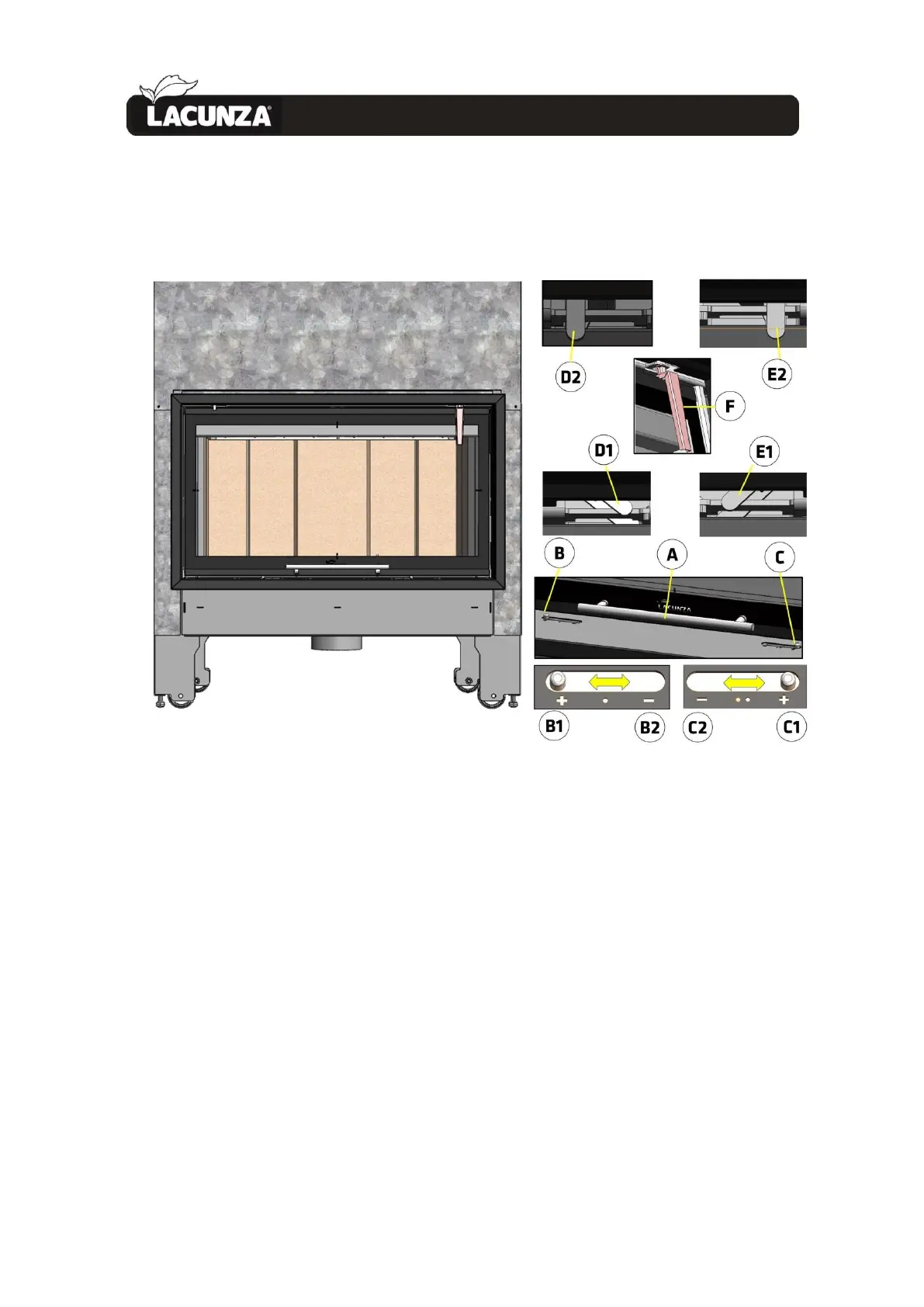

Figure No.21 - Operating components on the appliance
• A: Firebox door handle
• B: Primary air intake
o B1 open (move towards the + symbol)
o B2 closed (move towards the - symbol)
• C: Secondary air intake
o C1 open (move towards the + symbol)
o C2 closed (move towards the - symbol)
• D: LEFT-HAND catch on the door-opening system to clean the glass
o D1 open (turn anti-clockwise)
o D2 closed (turn clockwise until the catch is vertical)
• E: RIGHT-HAND catch on the door-opening system to clean the glass
o E1 open (turn clockwise)
o E2 closed (turn anti-clockwise until the catch is vertical)
• F: Tool to work the catches on the door opening system to clean the glass
