INSTRUCTIONS OF USE 24
3.

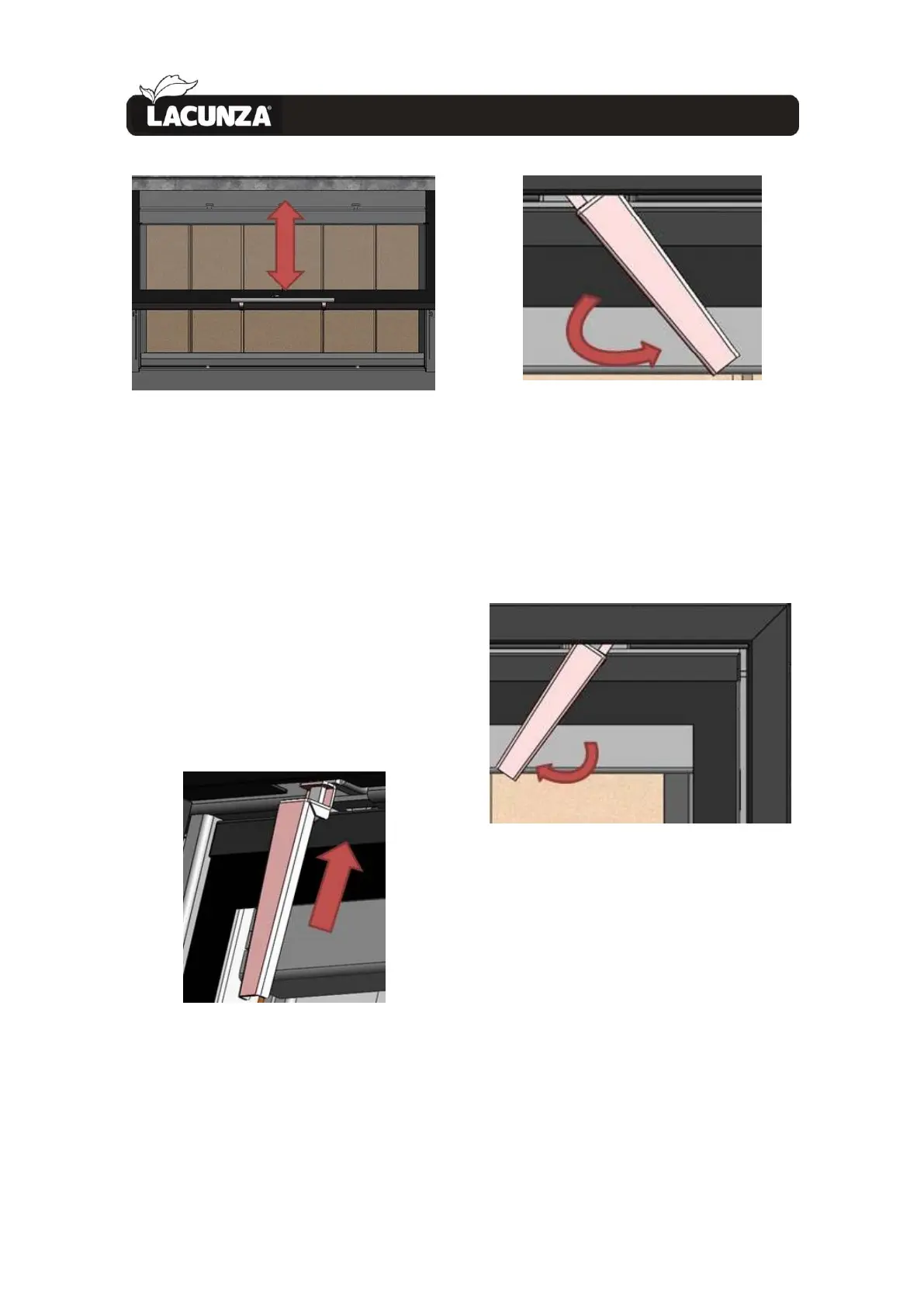

Figure No.30 - Opening using guillotine system
3.8.2. Door opening system to clean the
glass
This opening system should only be
used when the appliance is cold (when
there is no fire in the firebox) in order to
clean the inside of the door glass. Using
this system, the door is lowered from the
top on its bottom hinges until it is
practically horizontal. In order to open the
door from the top, proceed as follows:
• With the door closed, insert the
tool supplied by Lacunza in the catch on
the top left of the door. Insert it all the
way until it reaches its limit.
Figure No.31 - Insert the tool in the catch to
open the door to clean the glass
• Then use the tool to turn the left-
hand catch anti-clockwise until it
reaches its limit.
Figure No.32 - Turn the catch anti-clockwise
• Remove the tool from the left-hand
catch and use it to perform the same
operation on the right-hand catch,
inserting it in the same way.
• Then turn the catch clockwise, as
shown in the image, until it reaches its
limit.
Figure No.33 - Turn the catch clockwise
When the catches are in position, as
previously described, the door is free from
the frame and can be lowered on its
bottom hinges by pulling from the top.
WARNING! When the door is free from
its catches and you start to lower it, be
sure to support it with both hands (one on
the handle at the bottom and the other at
the top). As the door lowers, you will
notice that it tends to rise due to inertia.
Lower the door slowly so that it does not
rise suddenly at the end of the lowering
process. When the door has been fully
lowered, make sure that the handle does
not come into contact with the lower
surface of the outer frame so as not to
damage the enamel. Do this by lifting the
