Lacunza ITACA Series - Removing the Itaca 100-120 Deflectors

INSTRUCTIONS OF USE 22
3.
Soot falling from the flue may build up
on the deflector.
Then remove the second deflector by
drawing it at the rear and allowing it to
drop forwards.

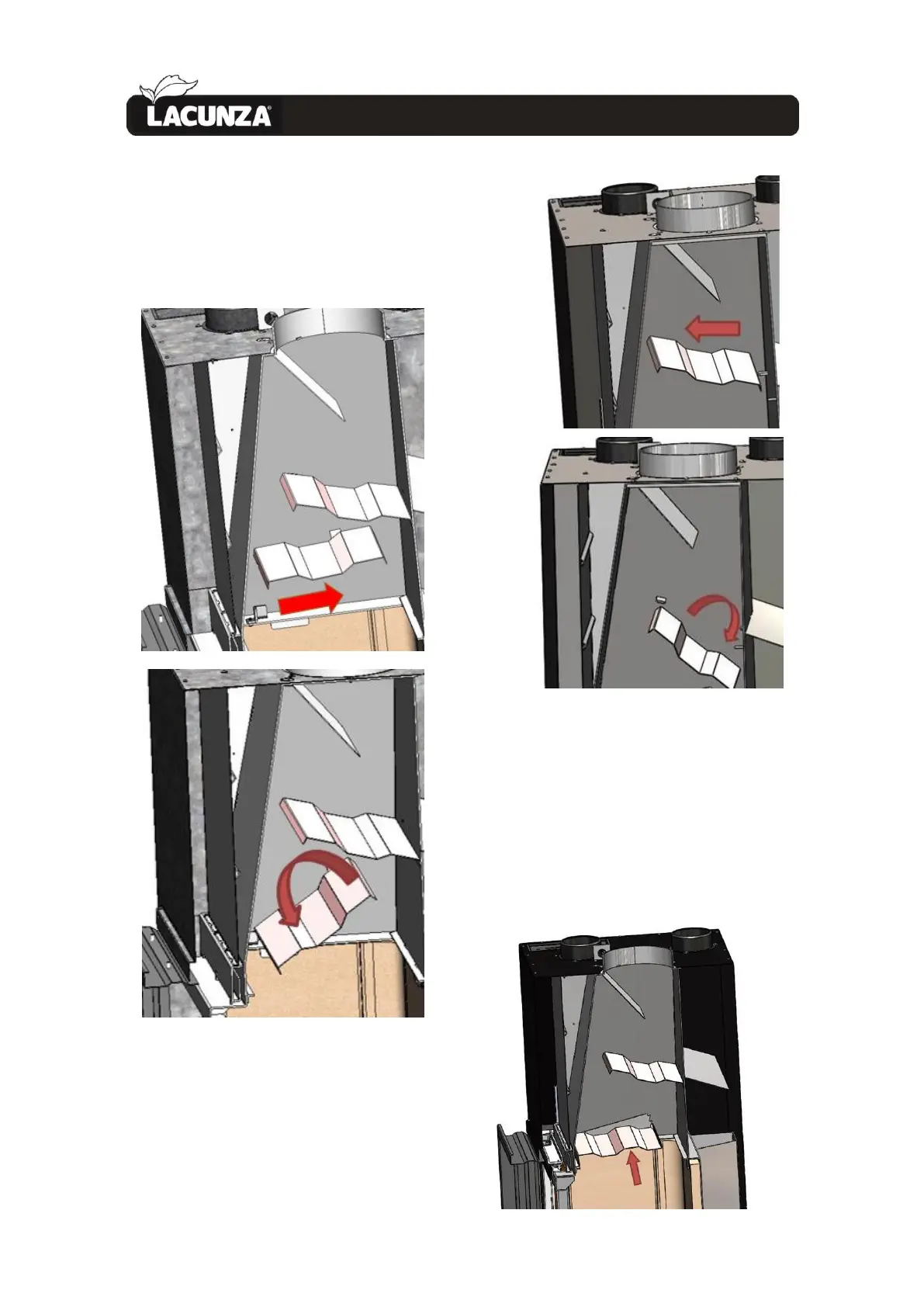

Figure No.26 - Removing the middle deflector
on the Itaca
Soot falling from the flue may build up
on the deflector.
Then remove the second deflector by
drawing it forwards and allowing it to drop
at the rear.
Figure No.27 - Removing the upper deflector on
the Itaca 80
3.7.4. Removing the Itaca 100-120
deflectors
First remove the lower deflector by
lifting it until it is clear of the tabs that
keep it in position. Then tilt one side
downwards, lower and pull out.
