Lacunza ITACA Series - Itaca 100 and Itaca 120; Removing the Itaca 80 Deflectors

INSTRUCTIONS OF USE 21
3.

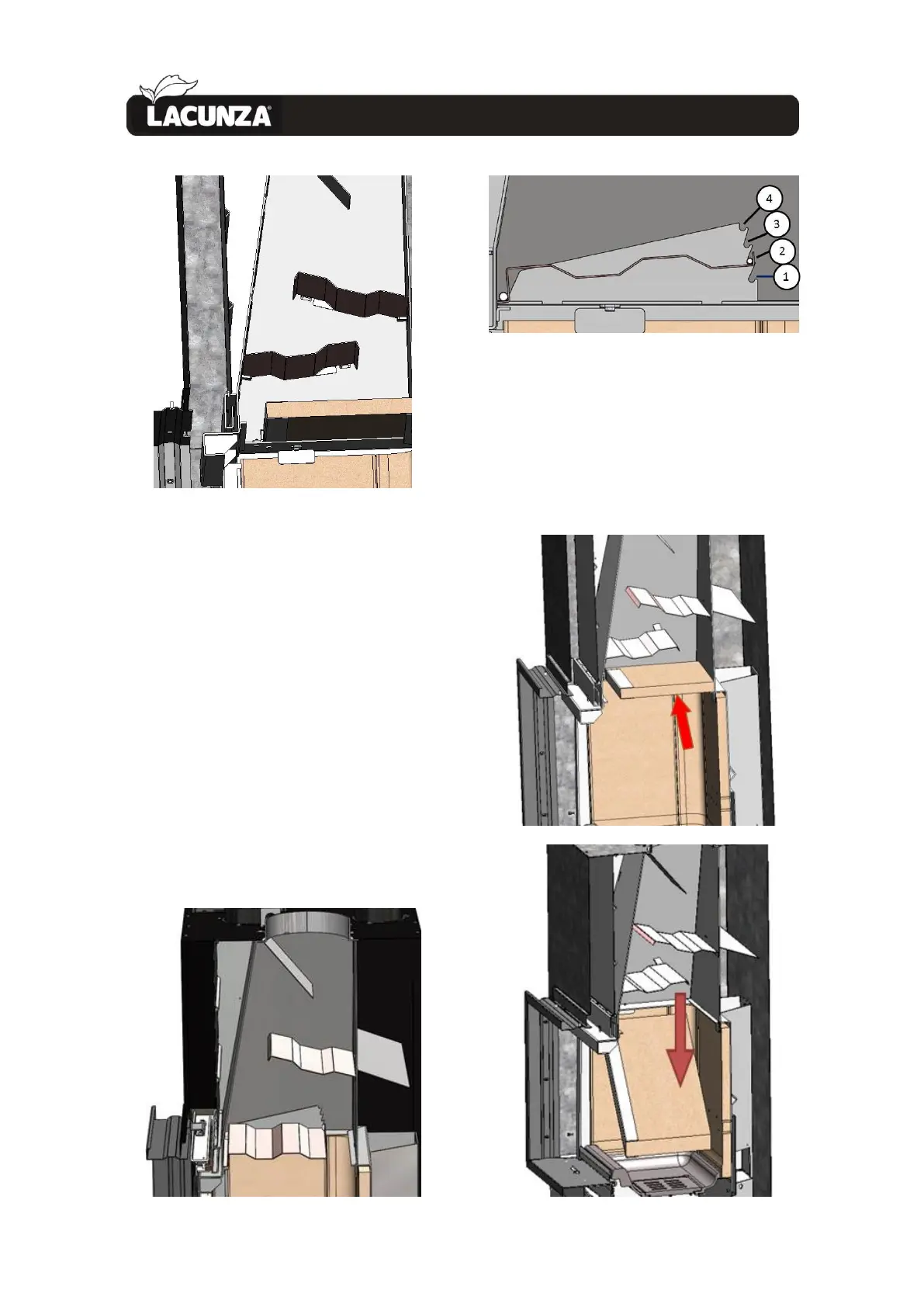

Figure No.22 - Section view with deflectors
fitted
3.7.2. Itaca 100 and Itaca 120
The appliance has 3 deflectors. The
upper one is fixed, whilst the middle and
lower ones can be dismantled (the lower
one has 4 positions in order to adapt it
better to the flue draught - provided there
is minimum updraught). Position 1, more
closed (greater resistance to smoke
evacuation, greater retention and,
therefore, greater efficiency). Position 4,
more open (to be used when there are
smoke downdraught problems caused by
insufficient updraught).
You can see how they are fitted and
regulated in the following pictures.
Figure No.23 - Section view with the 3
deflectors fitted
Figure No.24 - Different lower deflector
positions on the Itaca
3.7.3. Removing the Itaca 80 deflectors
First remove the lower deflector by
lifting it until it is clear of the tabs that
keep it in position. Then tilt one side
downwards, lower and pull out.
Figure No.25 - Dismantling the lower Itaca 80
deflector
