EQUIPMENT
49

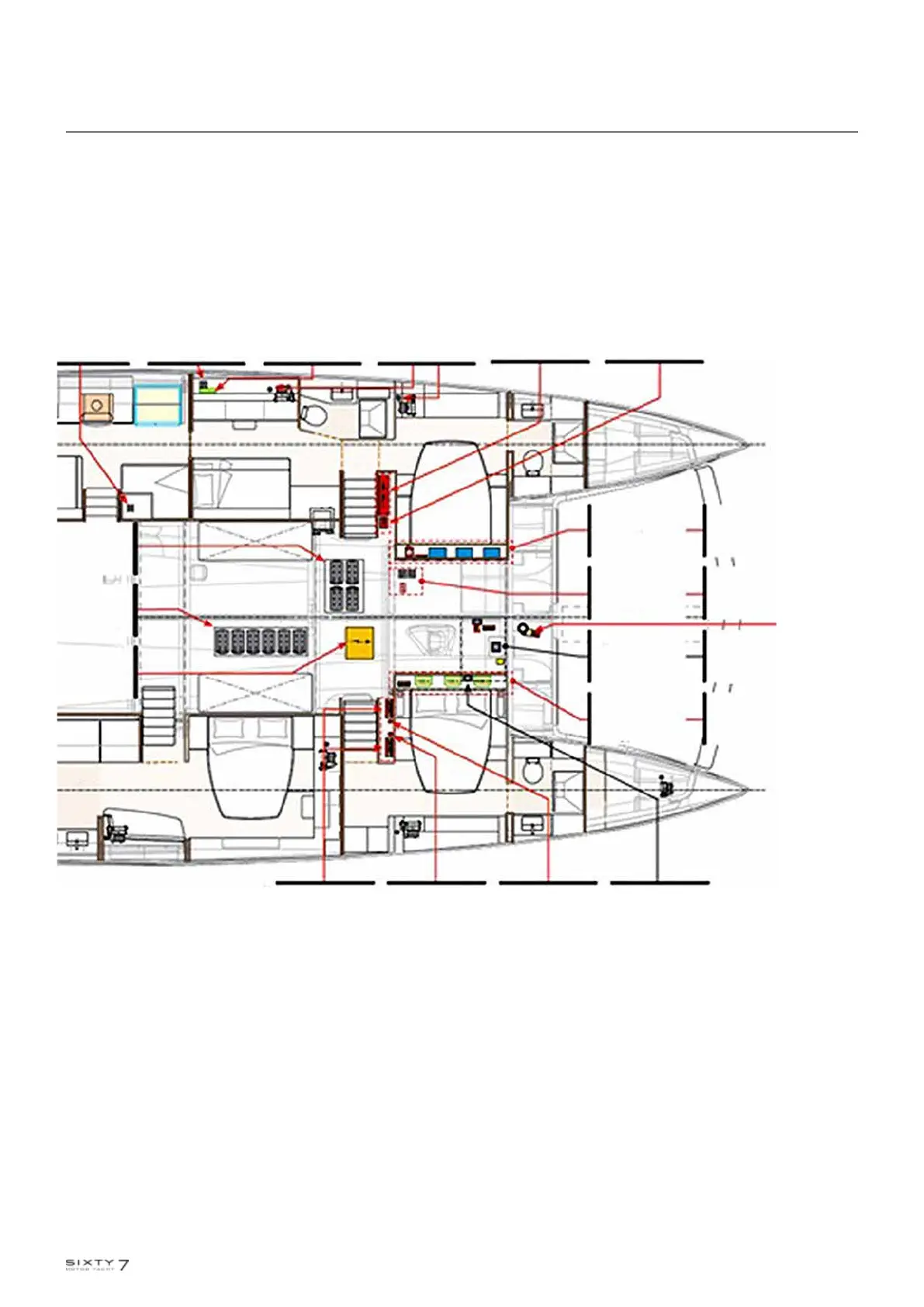

Module 9'
X51 in the
galley
Module 9' X51
behind the rear
panel in the crew
cabin locker
Single zone
Atoll loud-
speaker
Condensation
collector
pump
Main 230 V panel
port companion-
way
230 V converters
Outlet GFCI 63 A / 30
Ma (Q07)
Converters 3x5
Kva behind the
bed head in the
guest cabin
+ Converters
Bus DC X64
+ Power supply
selector AC S03
Fuse box X01
under the helm
station console
+ Module 9'
X99 and X242
under the helm
station console
+ windlass control
in the chain locker
Busbar DC X05
and windlass re-
lay in the forward
cockpit locker
+ Converter box
and battery charg-
er aeration box
+ Aeration locker
Battery chargers 3 x
100 A / 24 V behind
the bed head in the
Guest cabin
+ Chargers DC
Busbar X62
Note: all negative
DC Busbars are not
shown to improve
readability
Main Busbar 24 V
DC X01 and ser-
vice Busbar X02
in the starboard
companionway
Bow thruster cut-
out 600 A and
battery switch
K06
Battery switch
K01
Aeration battery
chargers box in the
forward Cockpit
locker
Battery Sets 600A
Fuses and Main
Switches (MY67 #01
only)
730 Ah Battery set
under the Saloon
floor
20 Ah Battery set
under the Saloon
floor
