Lagoon SIXTY 7 2020 - Page 50

4
50
Generator ONAN
19 kVA
Generator GFCI
100 A (Q-02)
Engine
starter battery 12
V / 75 Ah
Power supply
selectors
AC S02-S05-S01
Oil change
pump
Freshwater
pump - port
hull
Port bilge
pump
Port capstan
relay
Port
capstan
cut-out 80 A
DC Busbar X13
Air-conditioning
system seawater
supply pump
Main control panel for
the air-conditioning
system
Air-conditioning zone
2 x 120,000 BTU
Aeration control
box with tempera-
ture indicator
Module 9’ X58
Manual engine
start/stop
General battery
switch K29
Generator
battery
12 V / 50 Ah
Shore socket cut-out (#1
and #2) and galvanic isola-
tors + Generator fuel filter
Aeration
Chilled water
circulation pump
Port fuse box
X82
12 V / 25 A battery
charger engine and
generator
Port engine battery
(K28) and battery
coupling switch
(K31)

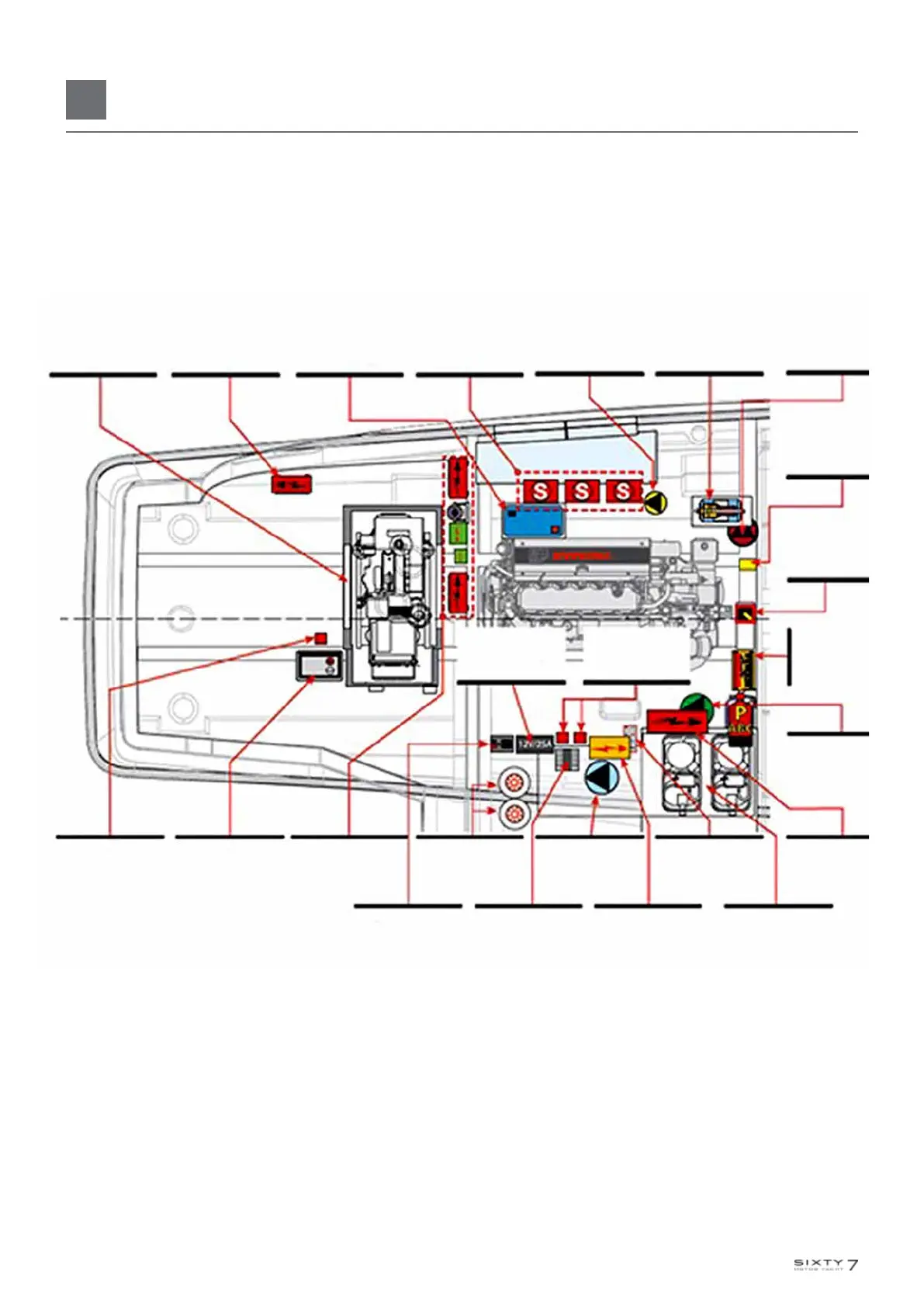

PORT ENGINE BILGE
