Then, to test the correct functioning of the burners,
select “start”by turning knob 16 and confirm by
pressing knob 16.
The burner will go in pre-ventilation to then pass on
to the set IGN ignition. The first IGN ignition stage is
indicated on display 10 by the first point under the
speed value.
Then, the minimum and maximum speed stages,
indicated respectively in the second and third points,
will automatically activate.
The correct burner functioning is highlighted by
the increase of the temperature in the cooking
compartment.
To deactivate burner functioning, press “STOP”,
displayed on the display 15.
To exit the cycle press button 14.
NOTE: To check/adjust the boiler burner, activate the
Boiler Burner section (example “Boiler burner 1”) as
operated for cooking compartment burner heating.
During testing, it is possible to manually block the
sequence by pressing “MENU” 13; this way, the
burner blocks in the desired phase (ex. IGN ignition)
allowing the technician to carry out other verifications
in this phase.
When a phase is blocked, the point indicating phase
1, 2 or 3 flashes.
To restart the sequence, always press “MENU” 13.
NOTE: in case of maximum speed, the cycle block
becomes pointless since the oven is already working
normally; it is possible to shift to minimum phase by
pressing “MENU” 13.
To carry out the tests with the door open, once
the cycle is started, press the “CLIMA” button 5;
this function is useful during combustion analysis
and for functioning tests of the prolonged burner
without reaching the temperature previously set in
the chamber.

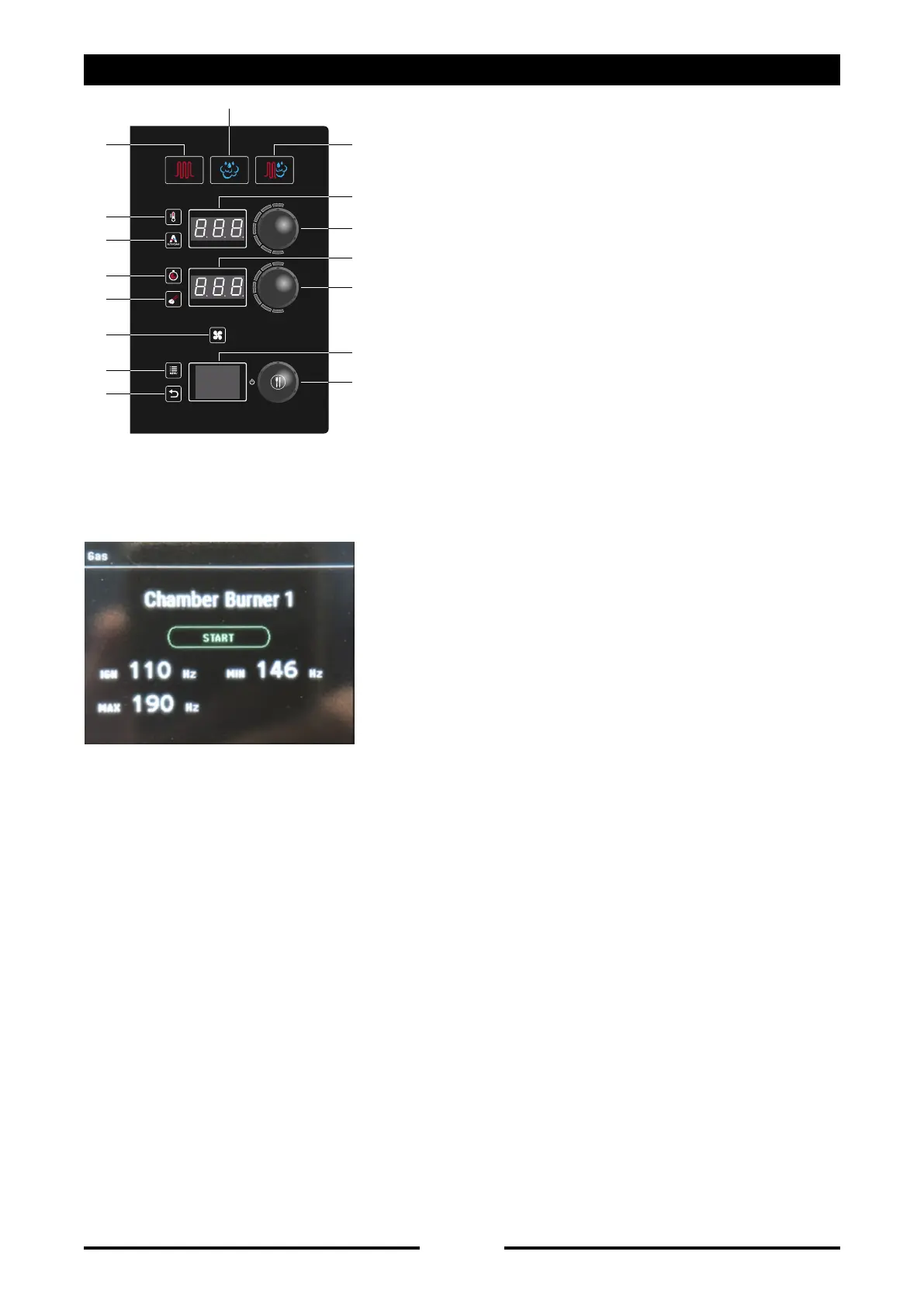

13 • OPERATING AT THE RATED HEAT OUTPUT
A2
A1
1
4
5
8
9
12
13
14
3
6
10
15
2
7
11
16
1
2
3
4 5 8 9 1312 14
76 1510 11 16
