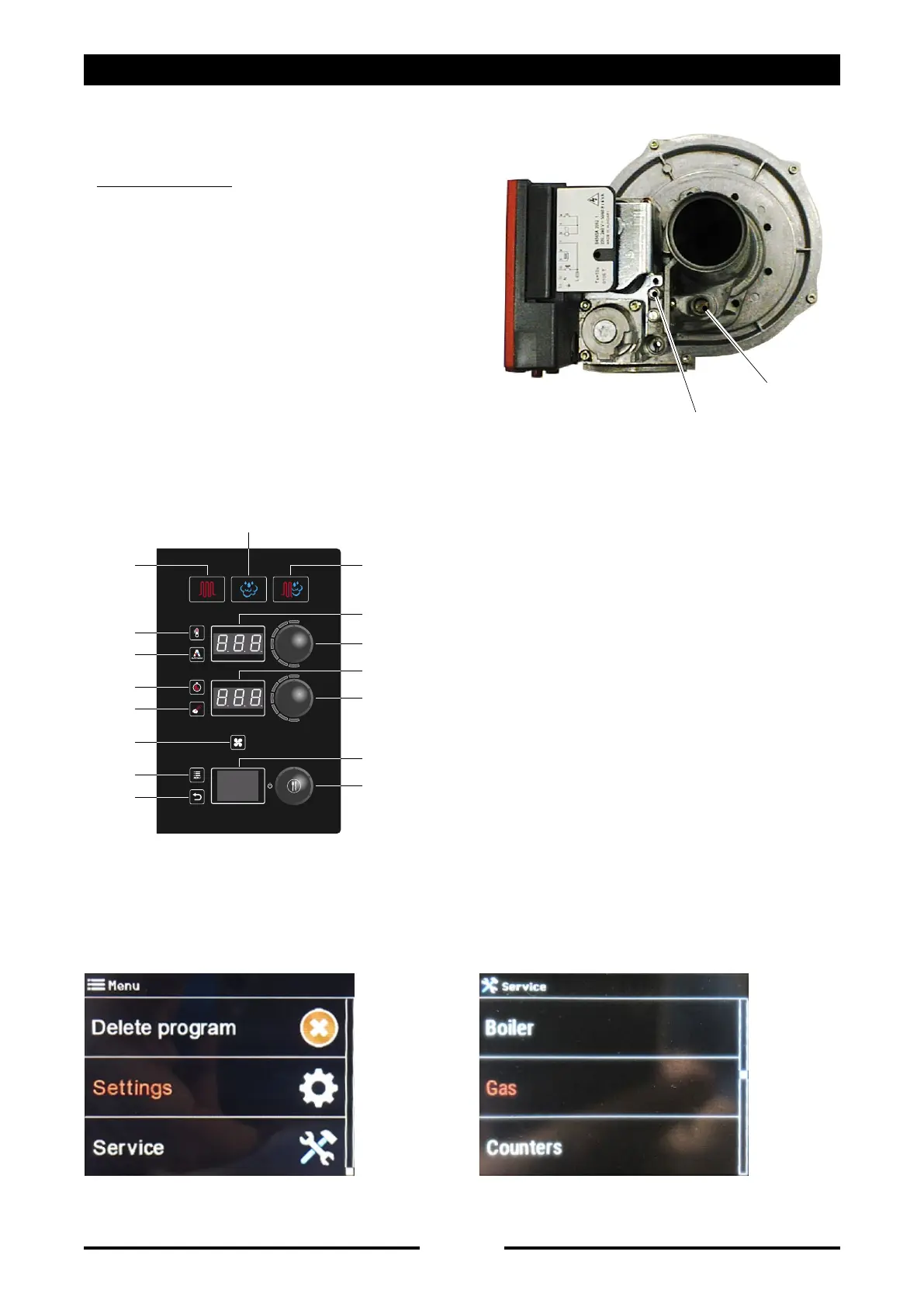

CHECKING NOMINAL HEAT CAPACITY
SAGB....R - SAGV....R - ARGS....R
- Chamber Burner
Check the depth of the screw “A” in
accordance with table 5
of the “Tecnical gas
data” booklet,
using a gauge.
Check that the burner fan speed, corresponds
to the data given in table 5 of the “Technical
gas data” booklet.
To enter the management screen of the burner
to check:
Press the MENU button 13, turn knob 16
until “Settings” is displayed and confirm by
pressing knob 16.
Select “Gas” and press knob 16 to confirm.
Turn knob 16 to set the password for
parameter modification and confirm by
pressing the knob 16.
13 • OPERATING AT THE RATED HEAT OUTPUT
A
3
A2
A1
1
4
5
8
9
12
13
14
3
6
10
15
2
7
11
16
1
2
3
4 5 8 9 1312 14
76 1510 11 16
