9.3.3.2 Passive splitters
In some limited applications, a single AES3 input may be split into two signals using a simple passive
splitter. Splitters provide a convenient and low cost solution when only one additional signal is required, and
in situations where cable lengths are short. Attenuation is minimal, but there is no refreshing of the signal.
9.3.4 Additional Reference Material
Complete technical information on the AES/EBU (AES3) standard can be downloaded from the AES web
site at http://www.aes.org/publications/standards/.
9.4 Digital Clock Conguration
9.4.1 Digital Clock Overview
In order to provide a exible and robust audio processing system, the device is equipped with a congurable
digital clocking system. There are two separate digital clocks which can generate various independent
internal sample rates, or can sync to an incoming AES3 signal. Figure 9-1 shows the various sample rates
and options available.

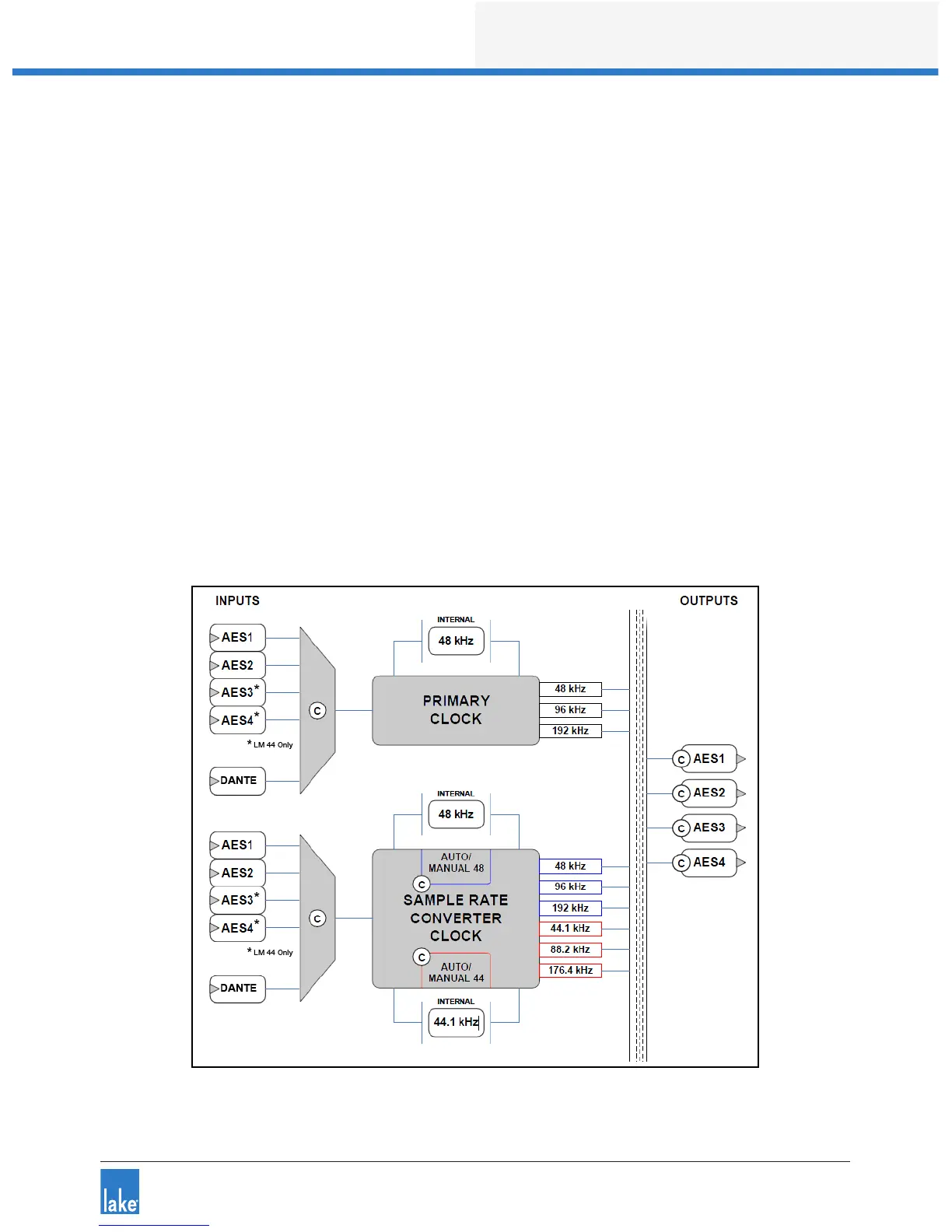

Figure 9-1: Digital Clocking System
